Our Work
VAN CONVERSIONS GEARED TOWARD ADVENTURE
Explore the Distinctive, High-Quality Van Builds That Make Our Clients Proud
The Utopia Custom team takes pride in creating unique, functional, and comfortable van conversions tailored to your needs and desires. From weekend warriors to full-time nomads, we’ve transformed a wide range of vans into extraordinary adventure mobiles. Browse through our impressive gallery of completed projects and let our work inspire your van-life dreams.
Ford Transit 002
Premium Build Materials
- Killmat sound deadening on all panels for a quiet ride
- Thinsulate and Havelock wool SM600L insulation on walls and ceiling, with additional R-value where space allows
- 1/2” polyiso underfloor insulation, 3/4” subfloor, and 3/4” glued and screwed framing
- Waterproof laminate flooring

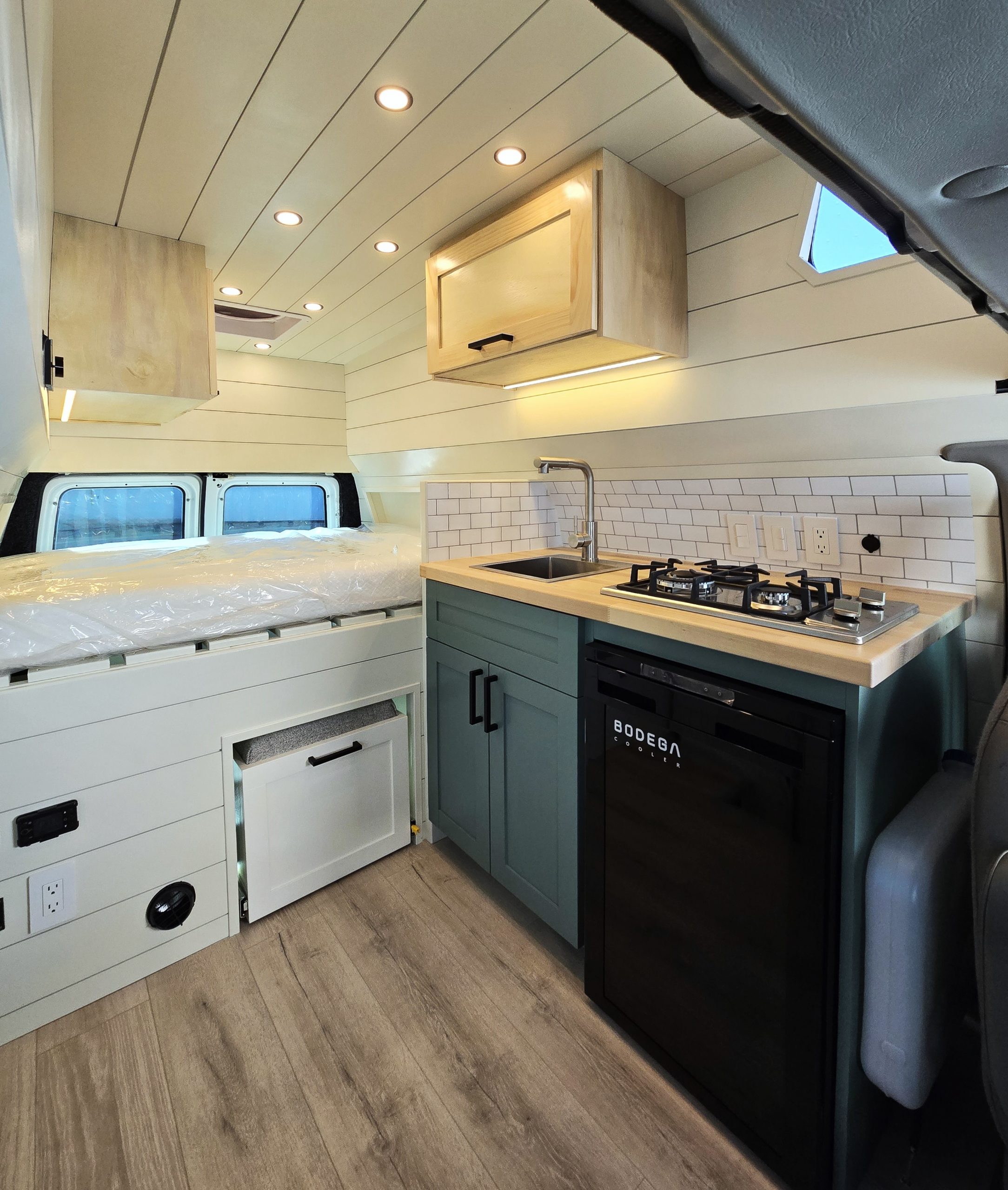

- Painted shiplap walls with solid oak trim

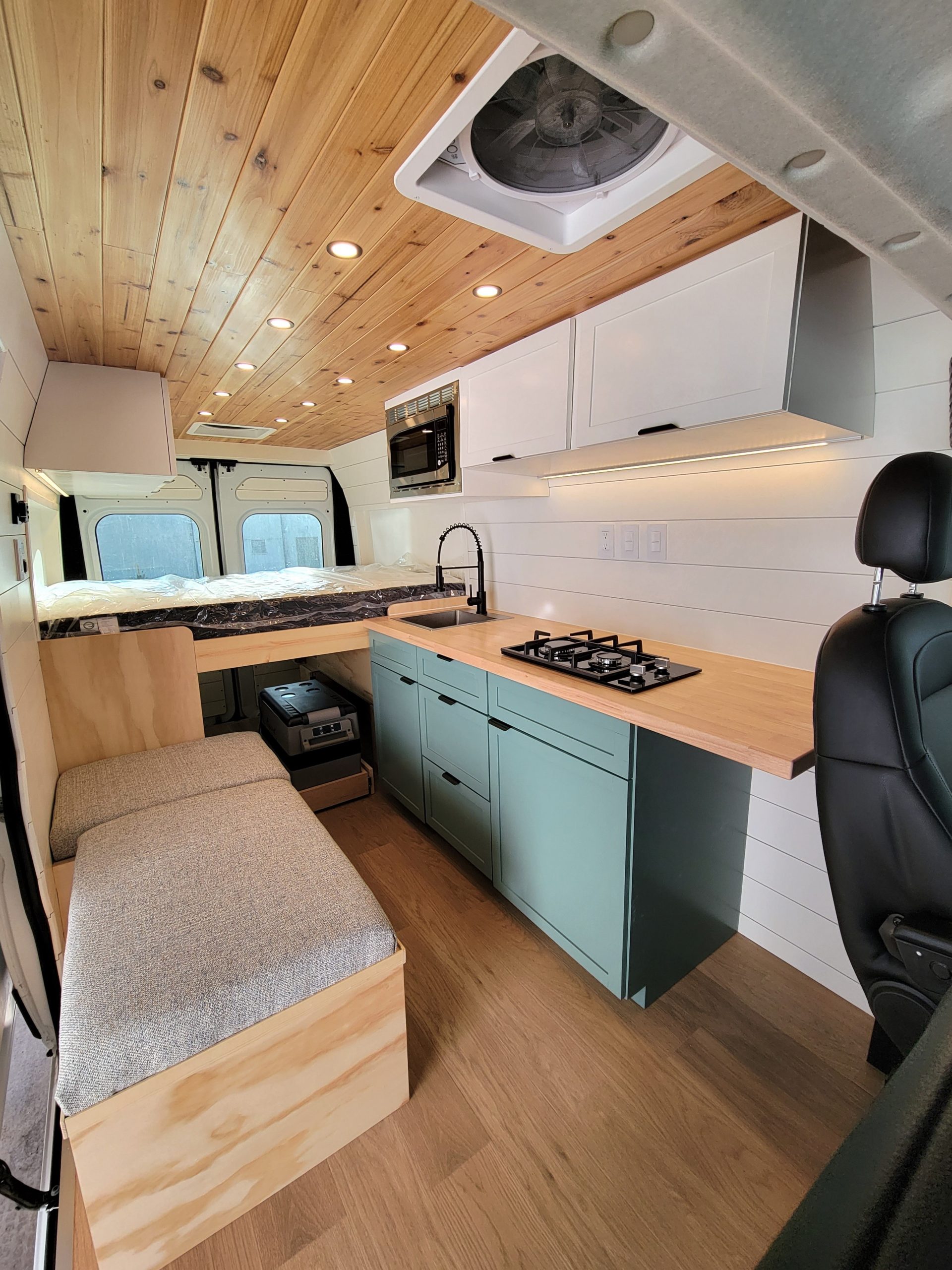

- Clear-coated cedar ceiling

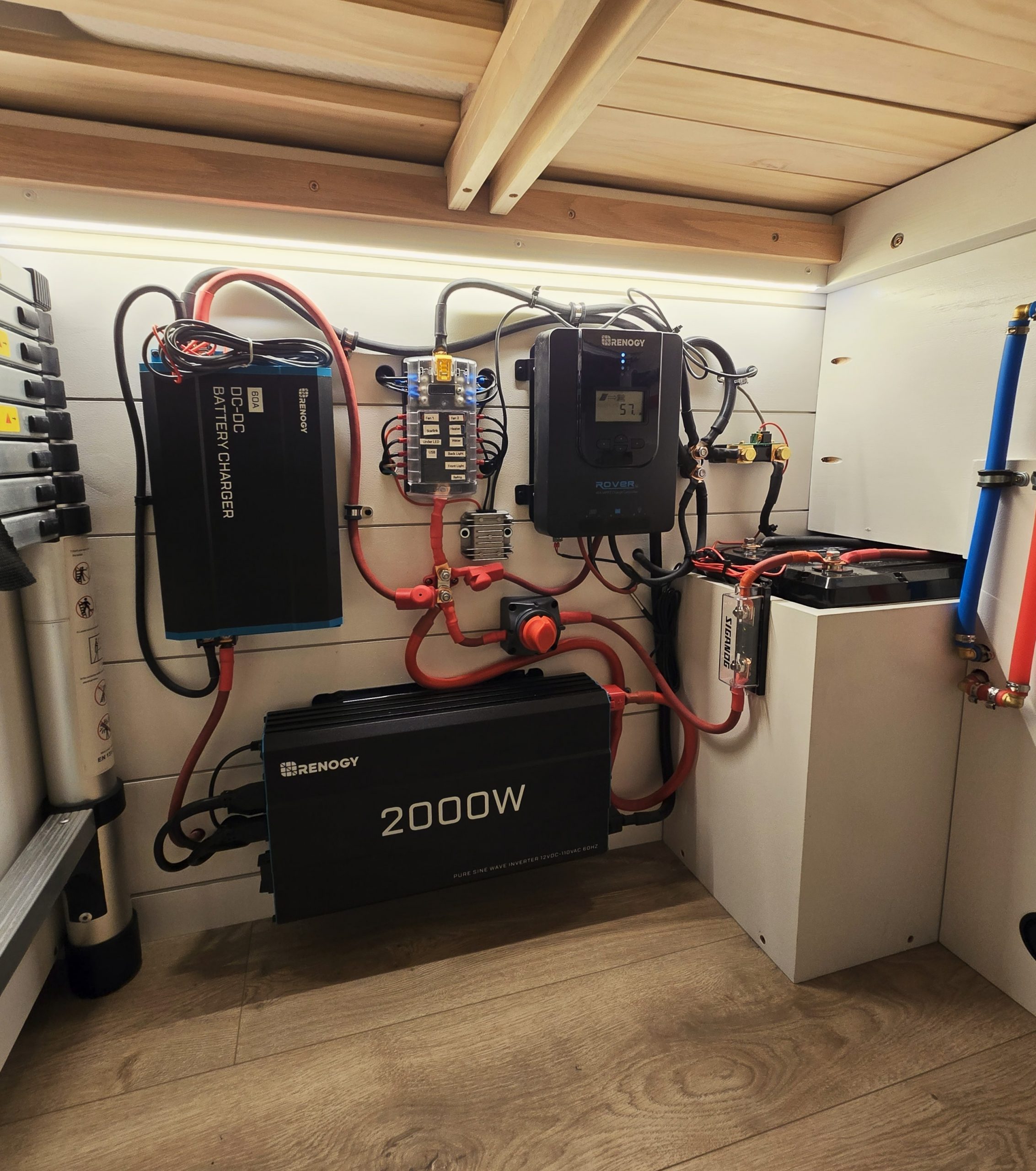

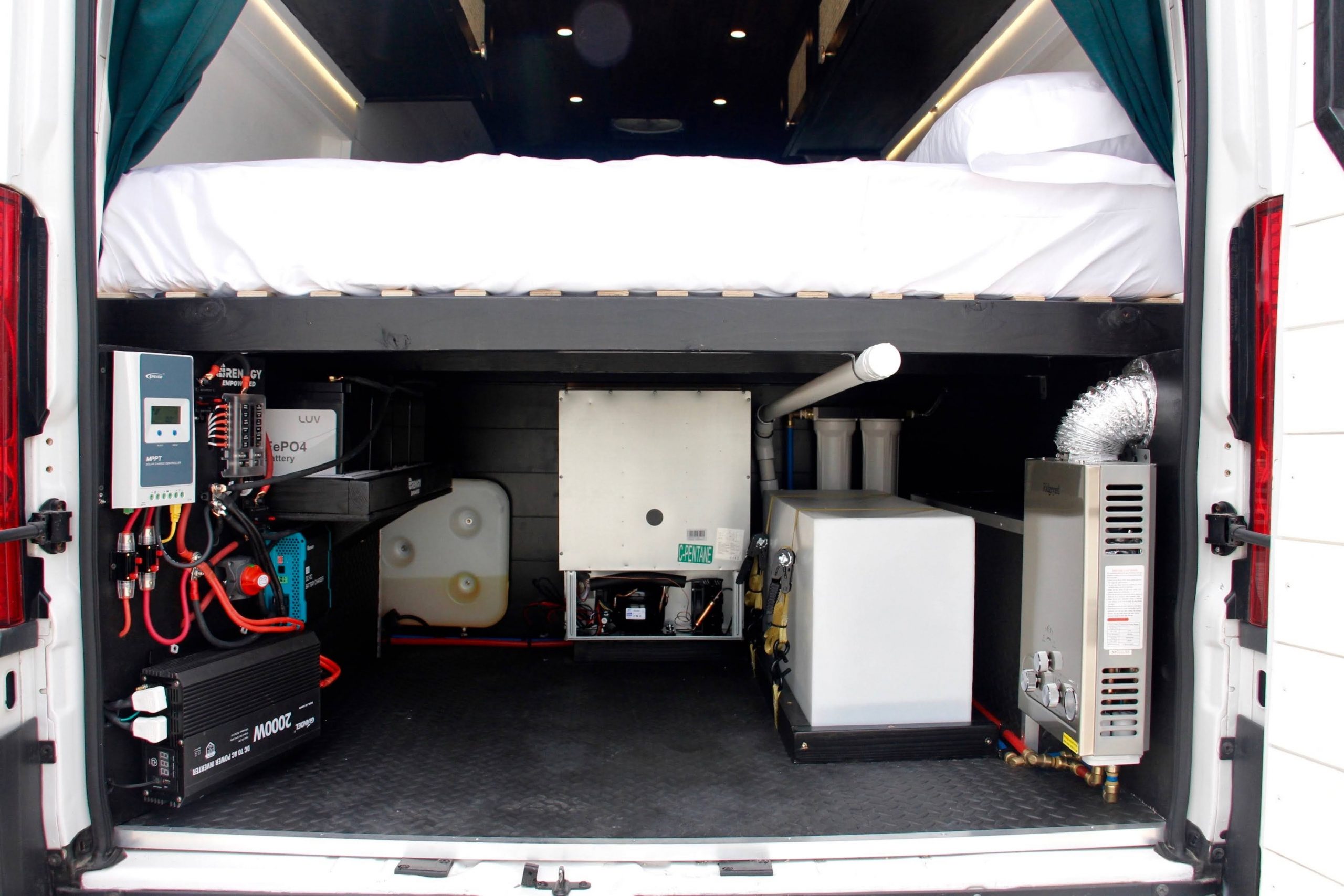

Electrical System

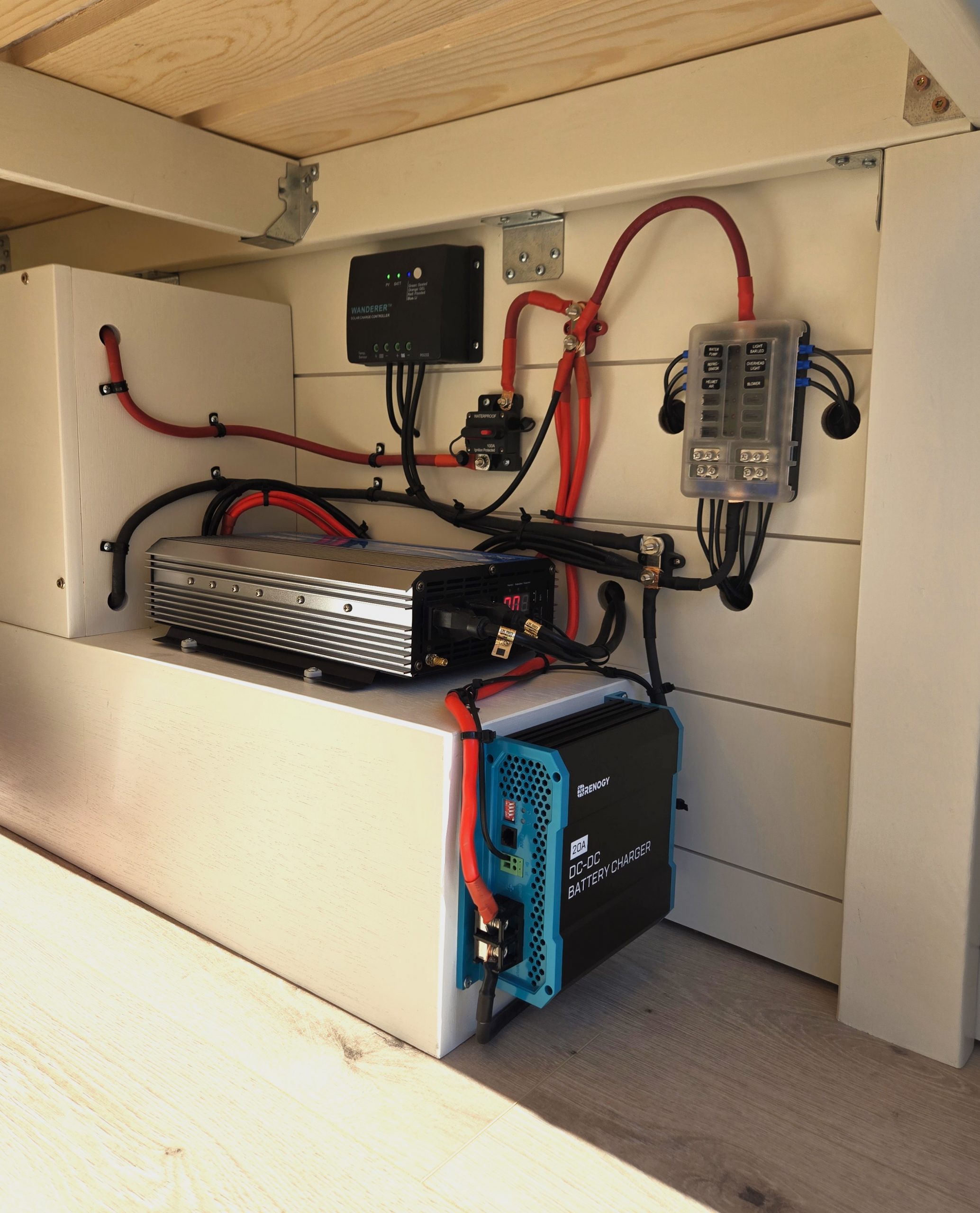

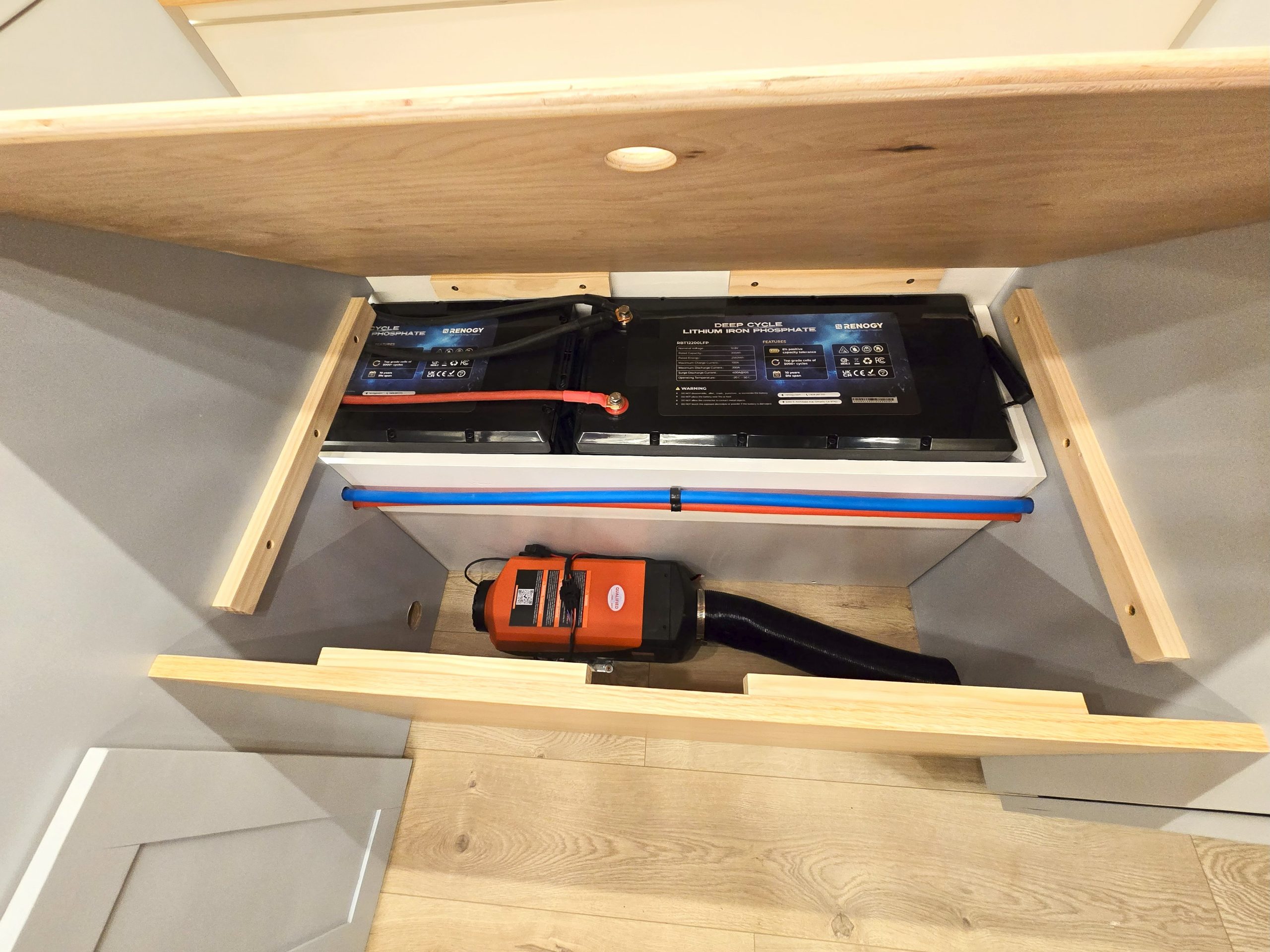

- 400Ah lithium battery bank (2 x 200Ah Renogy batteries)
- Renogy 60A DC-DC charger and 100V/30A MPPT solar controller
- 500W solar array on the roof
- Renogy 2000W inverter with DC fuse and breaker panel

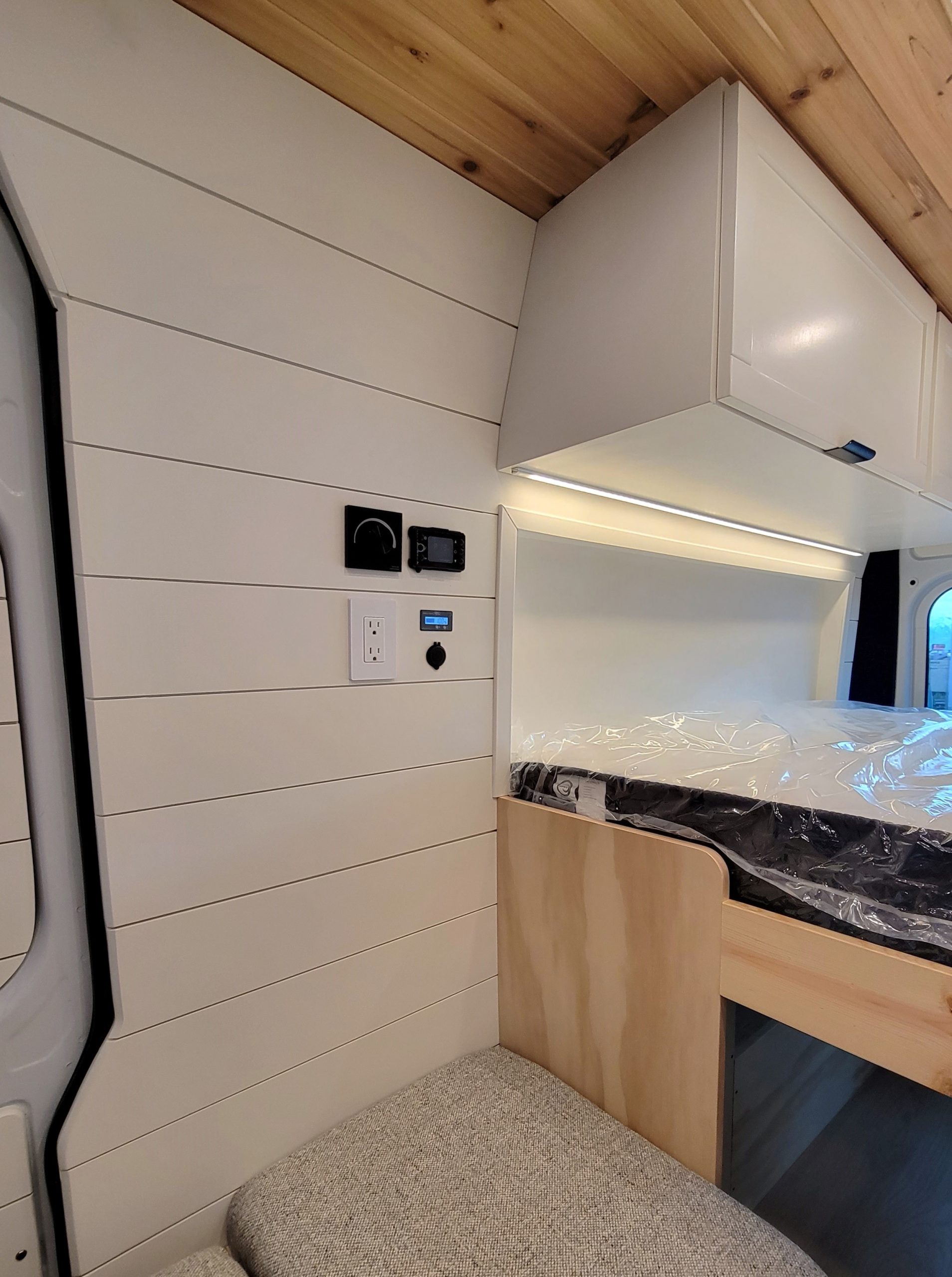

- 12V and 120V outlets, including USB and USB-C ports
- Dimmable LED puck lights throughout, including shower lighting

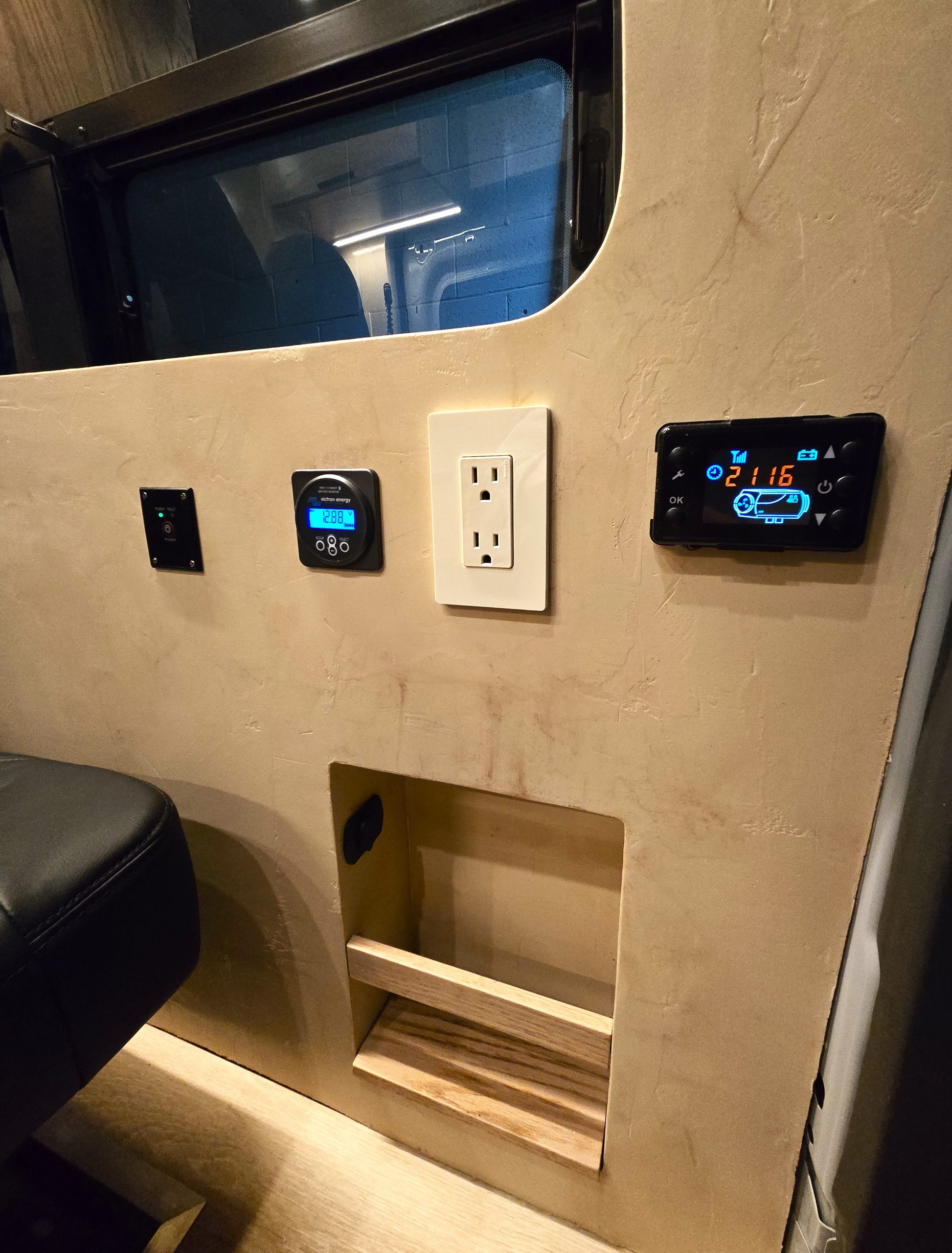

- Victron shunt and power supply monitor
Plumbing
- PEX piping with crimp fittings

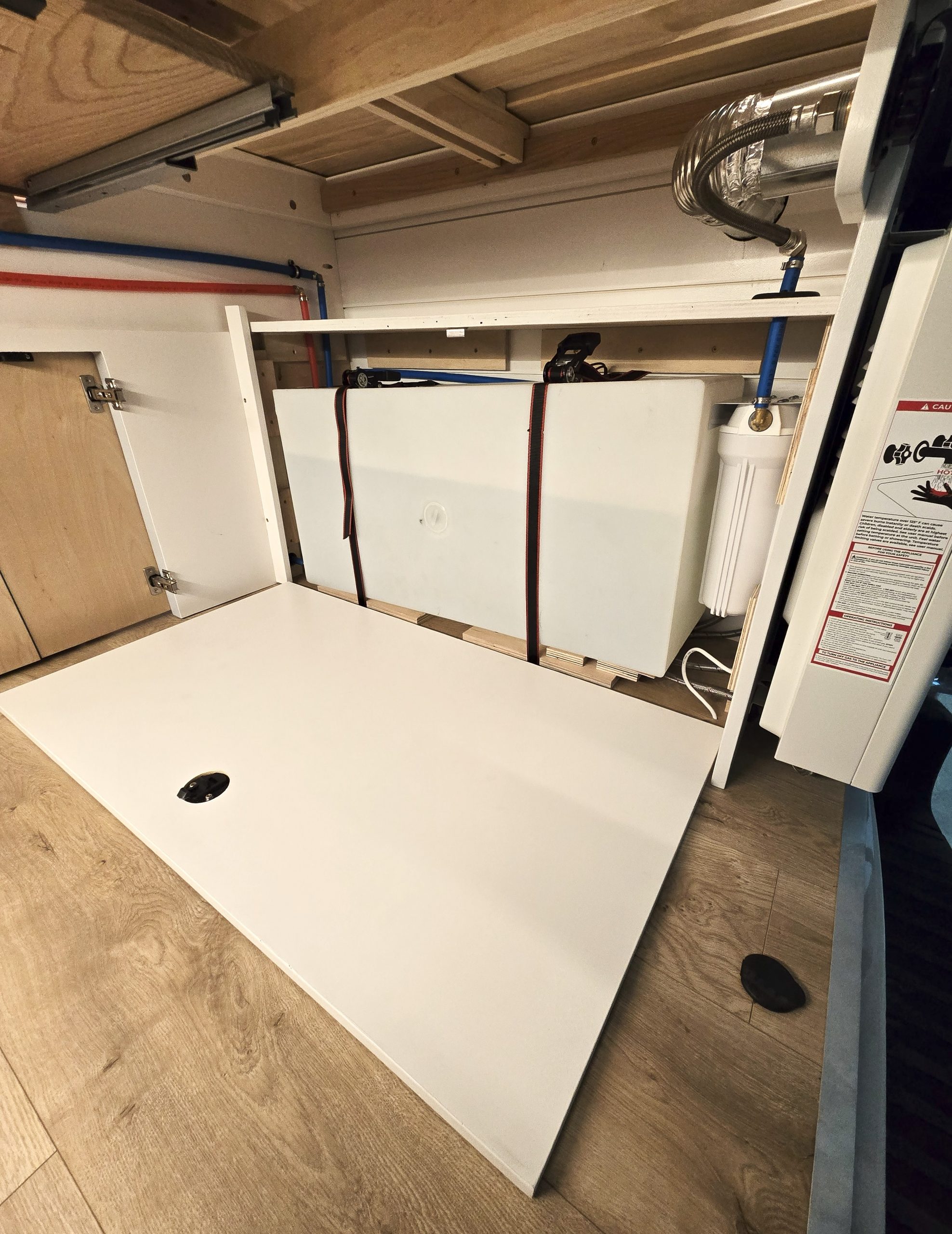

- 35-gallon fresh water tank with two-stage filter and electric level gauge

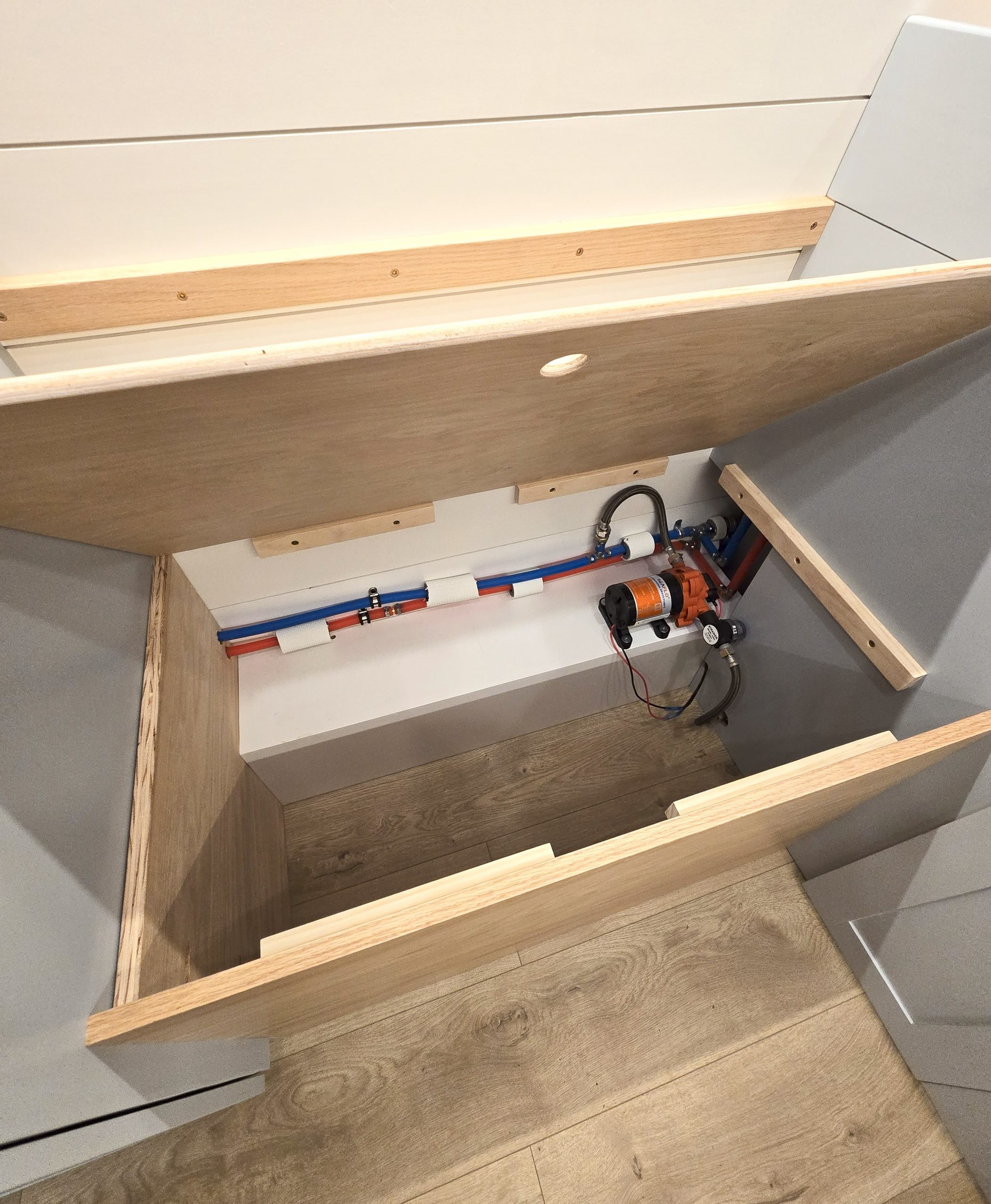

- Water pump with switch control, low-point drain, and winterizing bypass valve

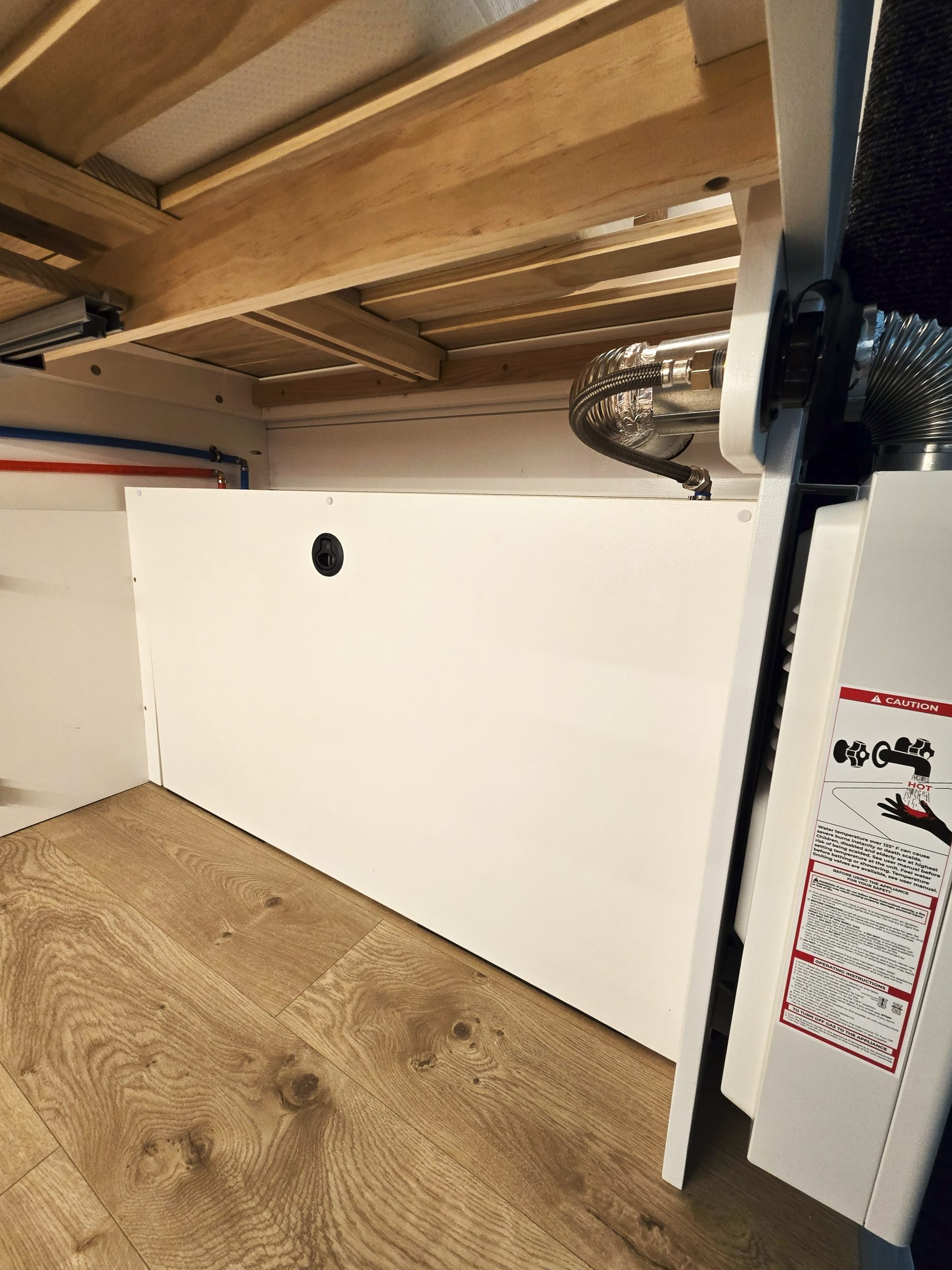

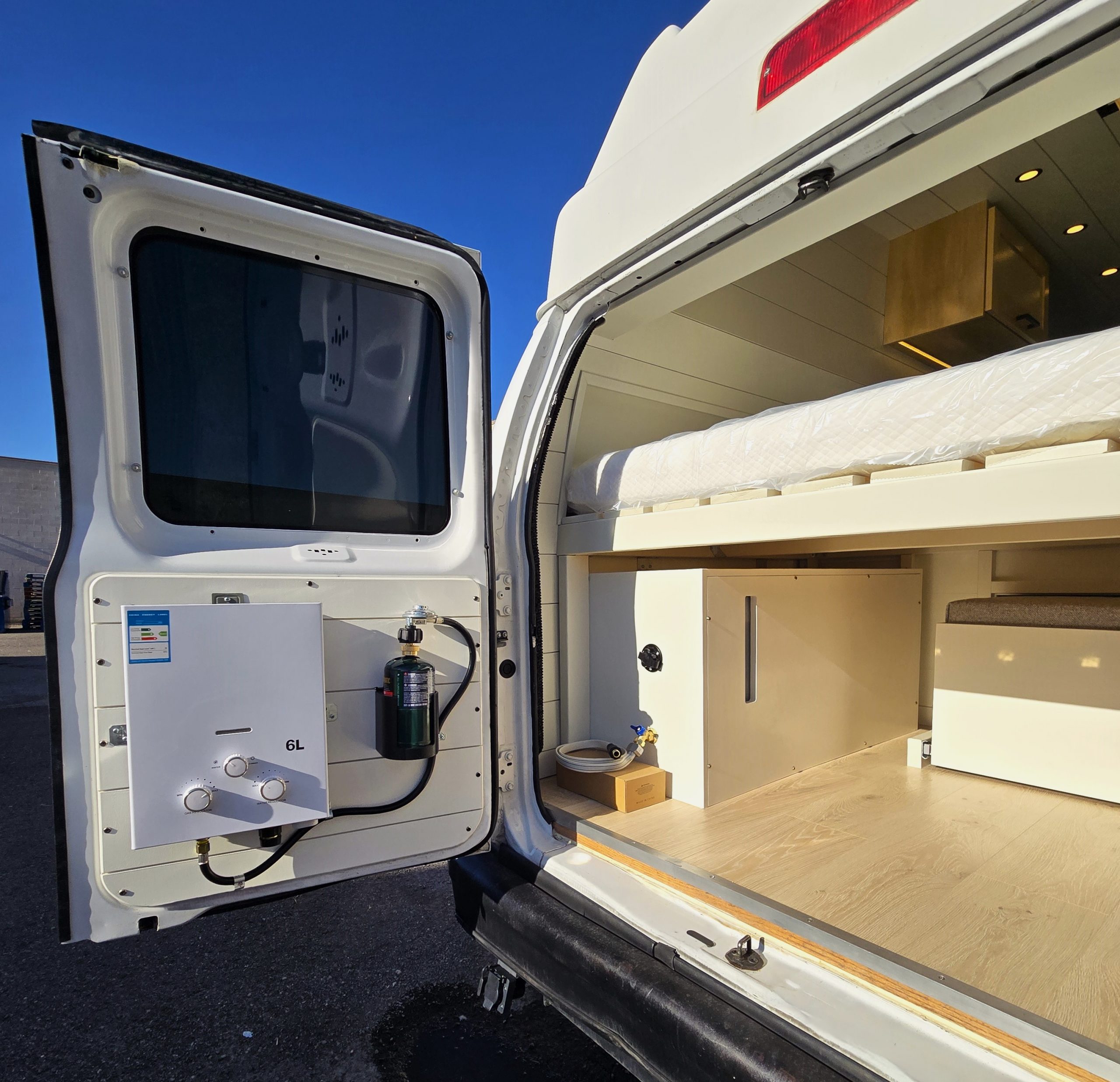

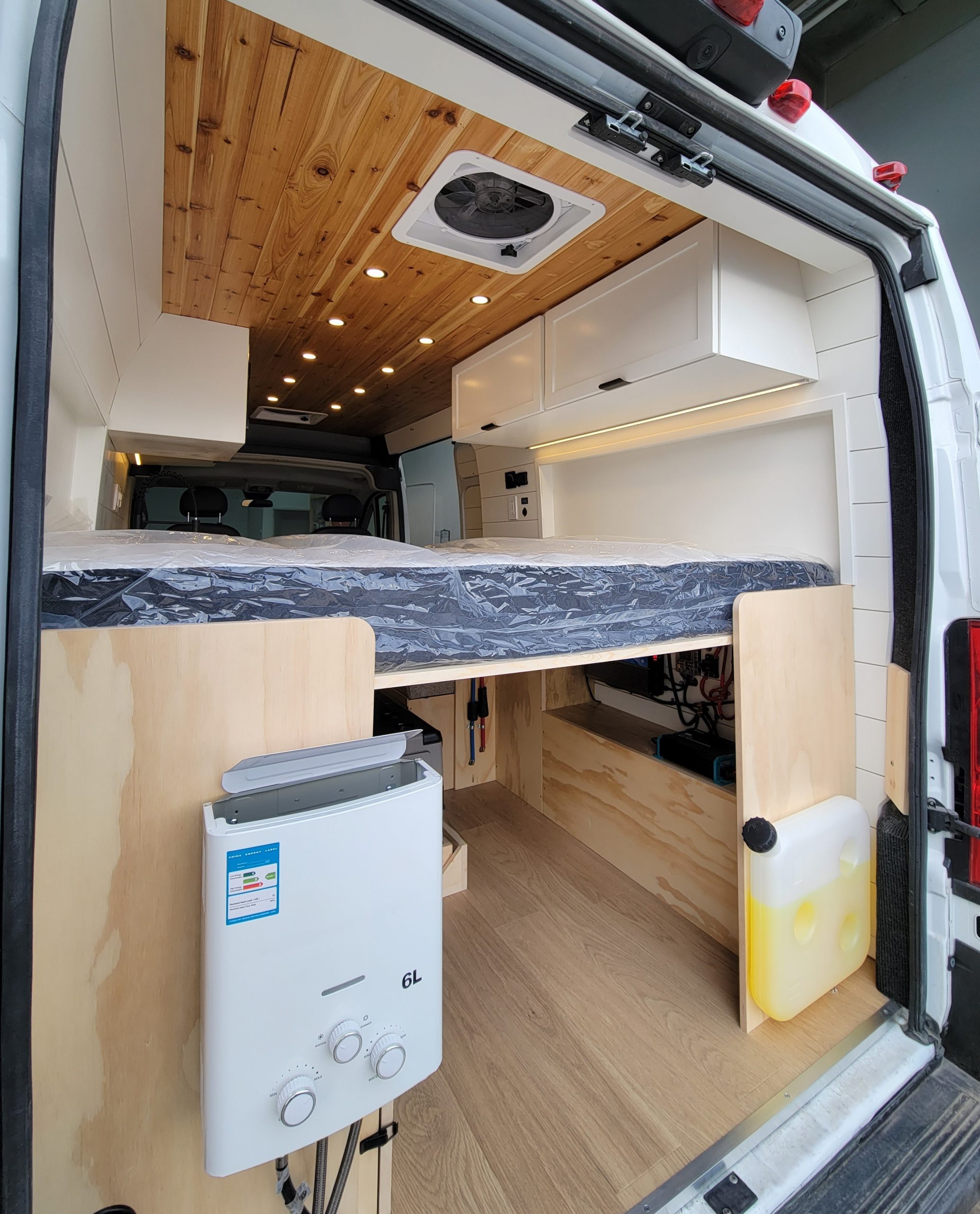

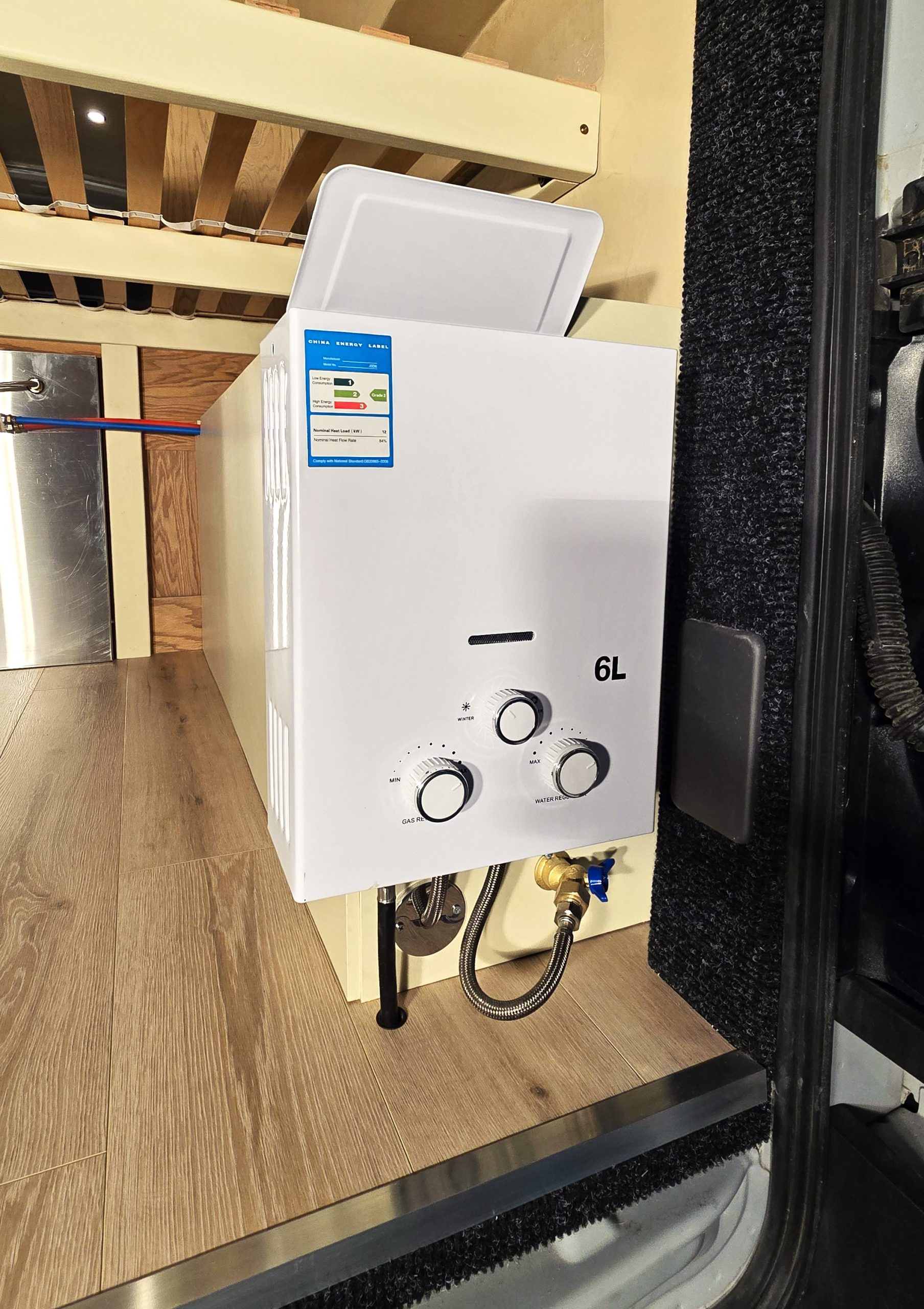

- LPG water heater with dual-wall exhaust
- 20-gallon under-mount grey tank with heater pad
- TROBOLO WandaGO Lite composting toilet
- 2.5lb LPG Tank

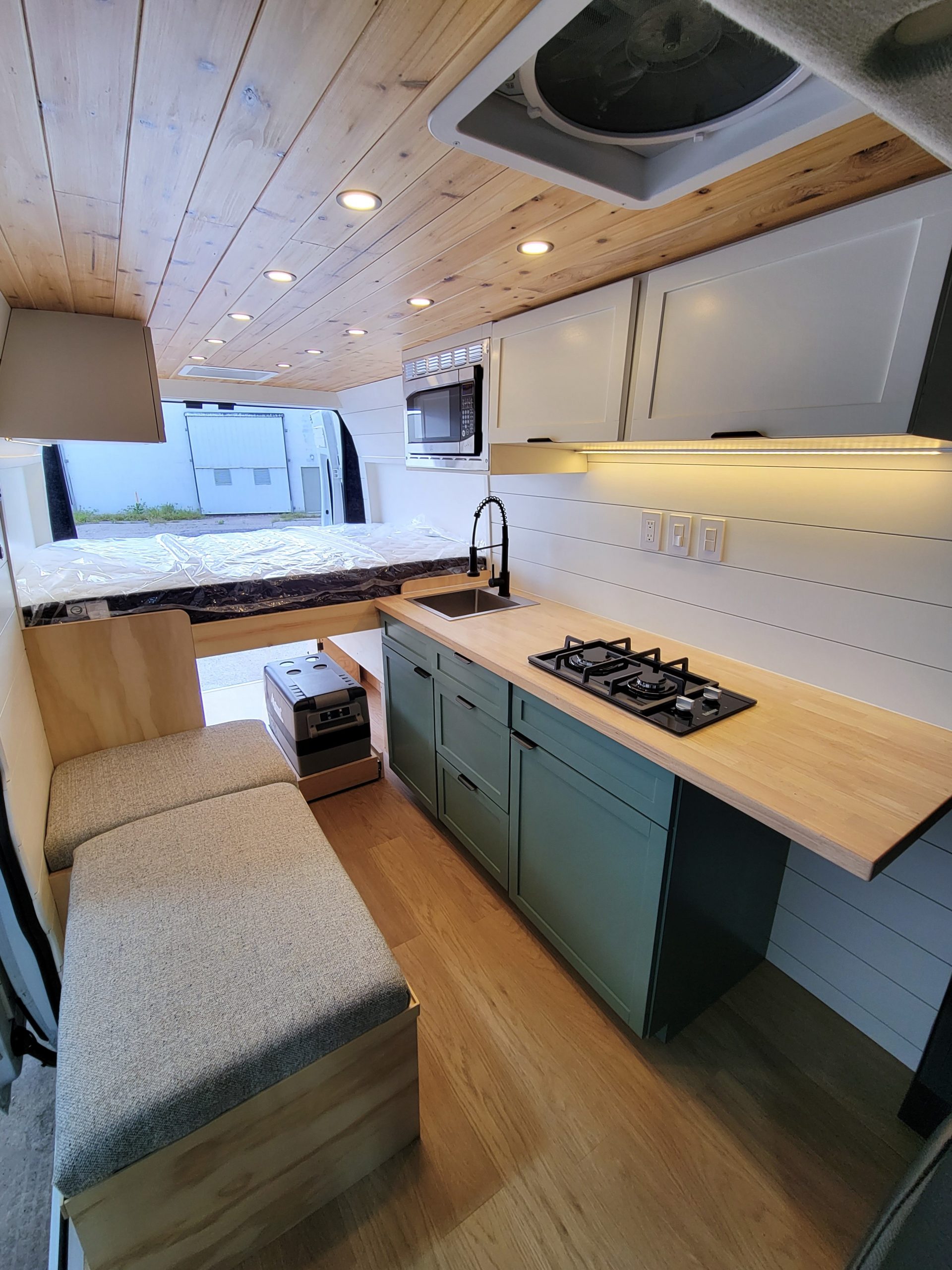

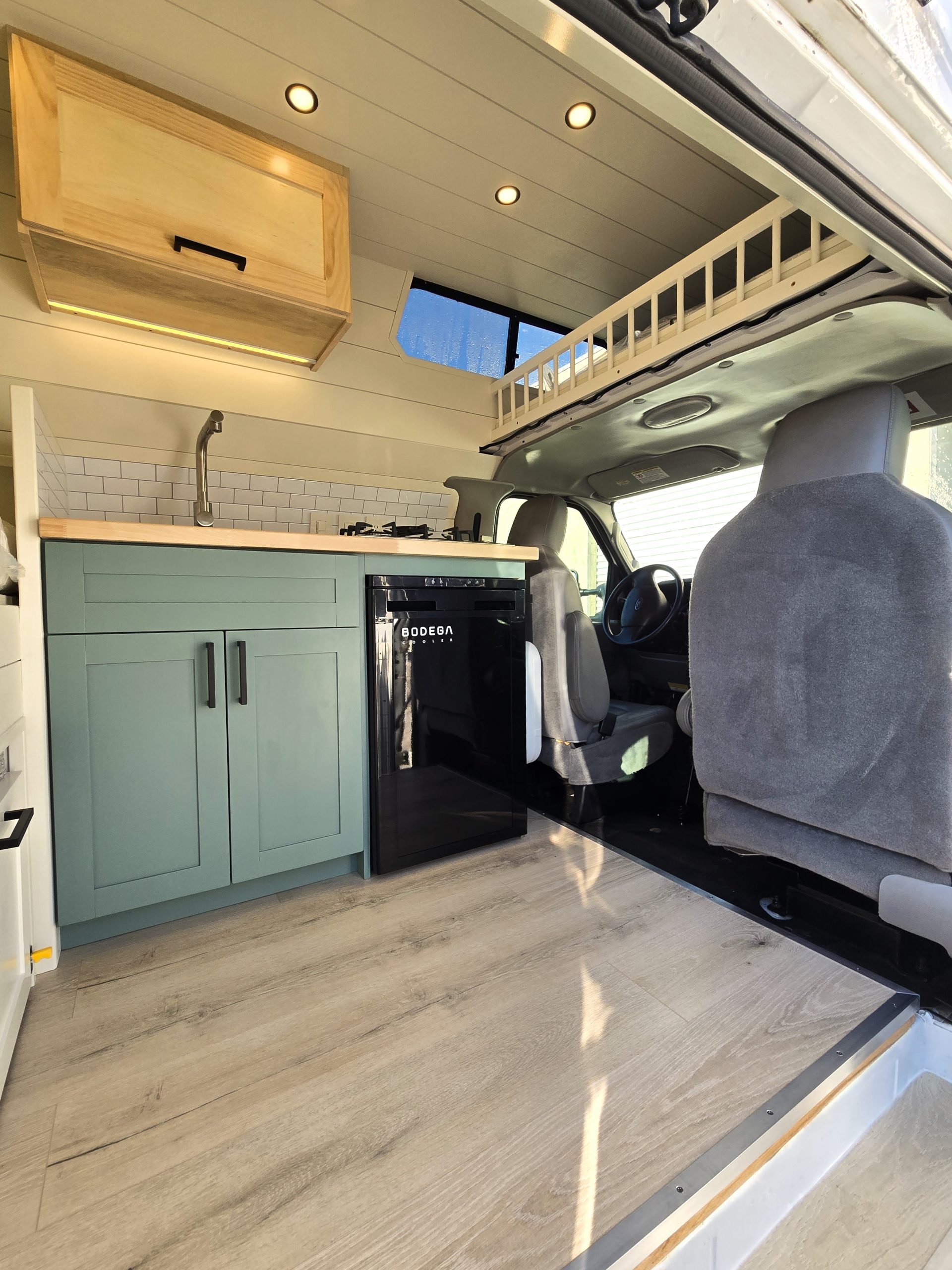

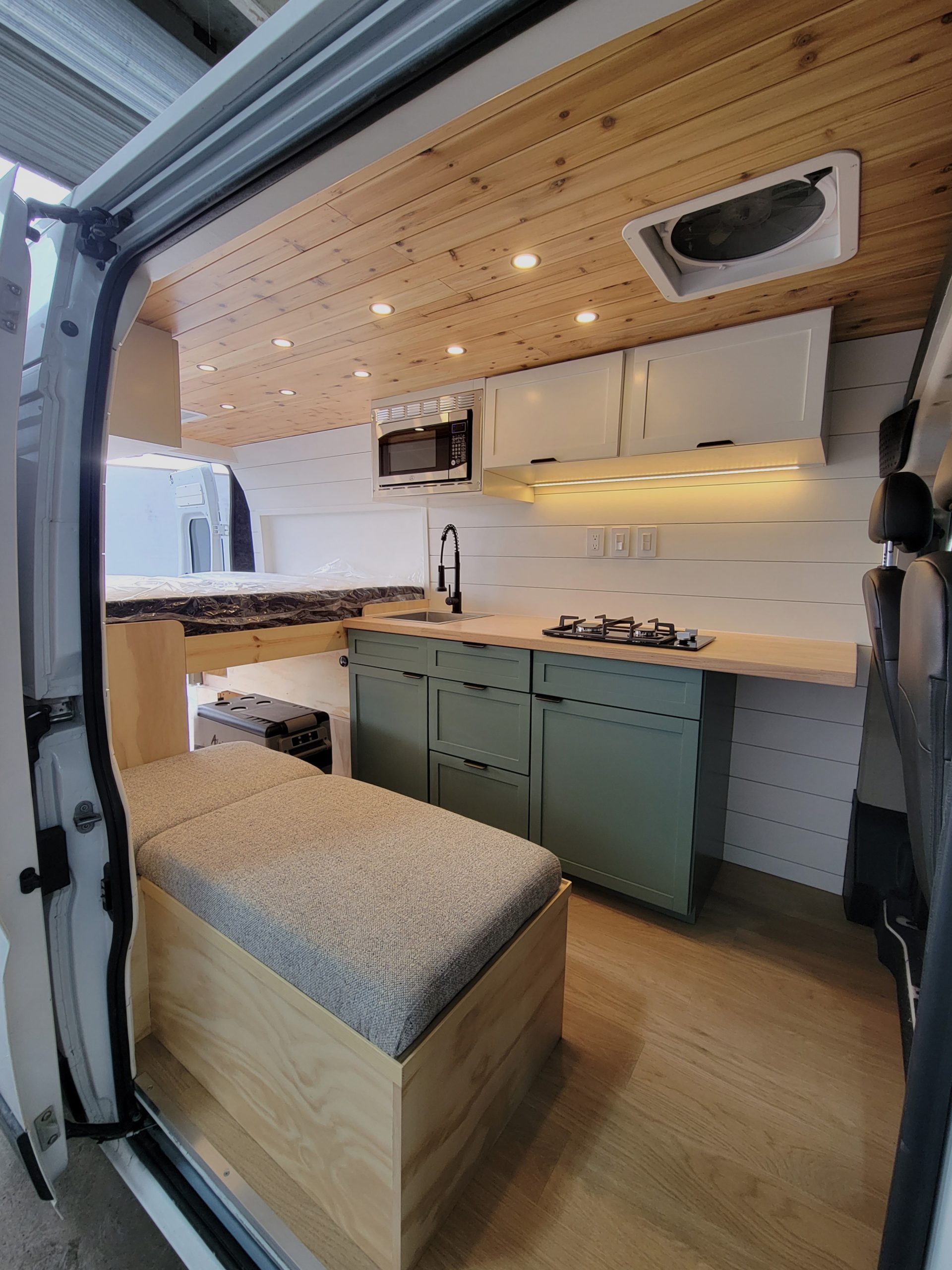

Layout

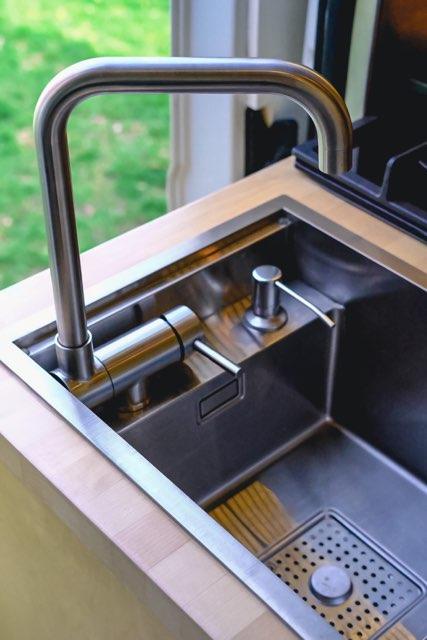

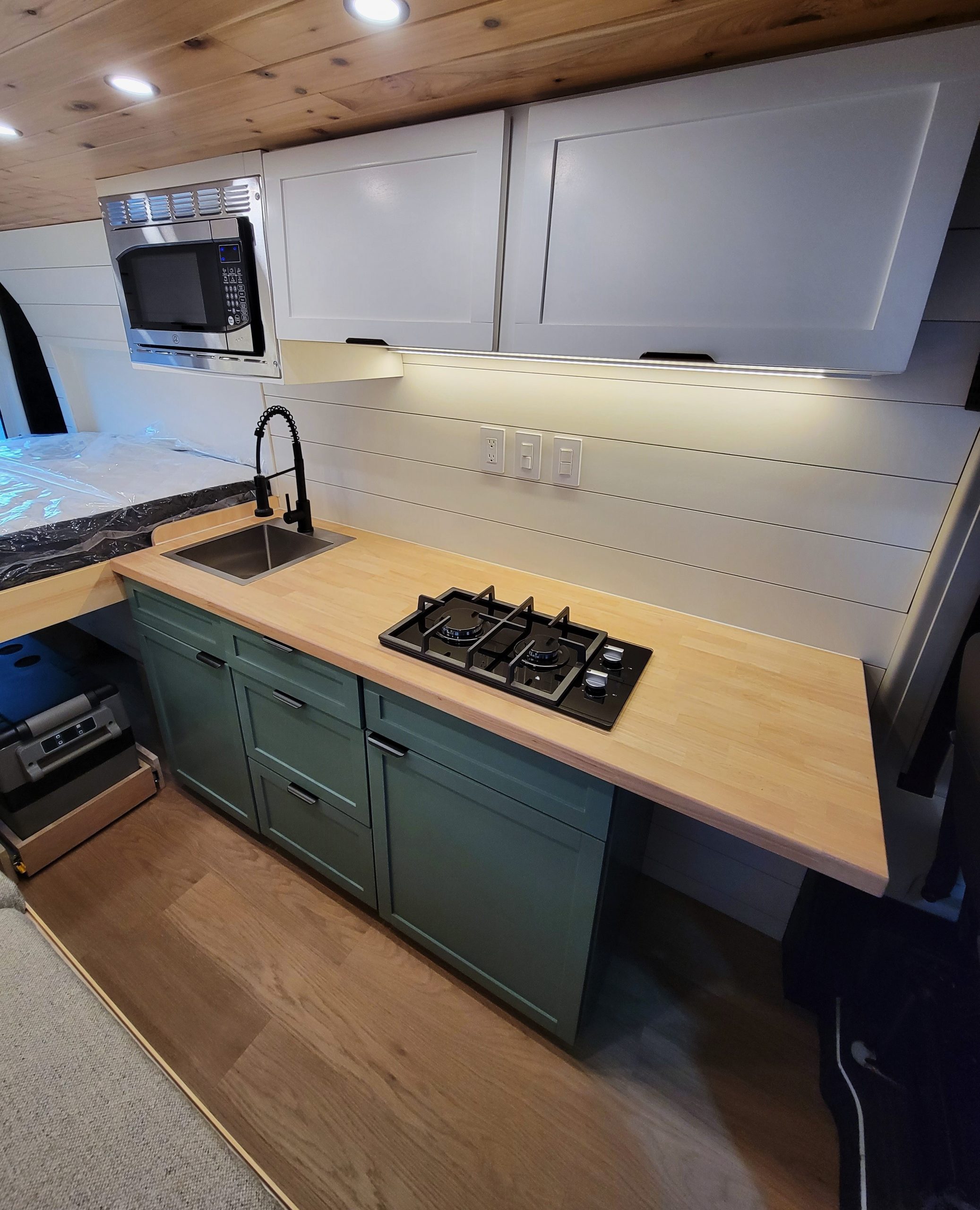

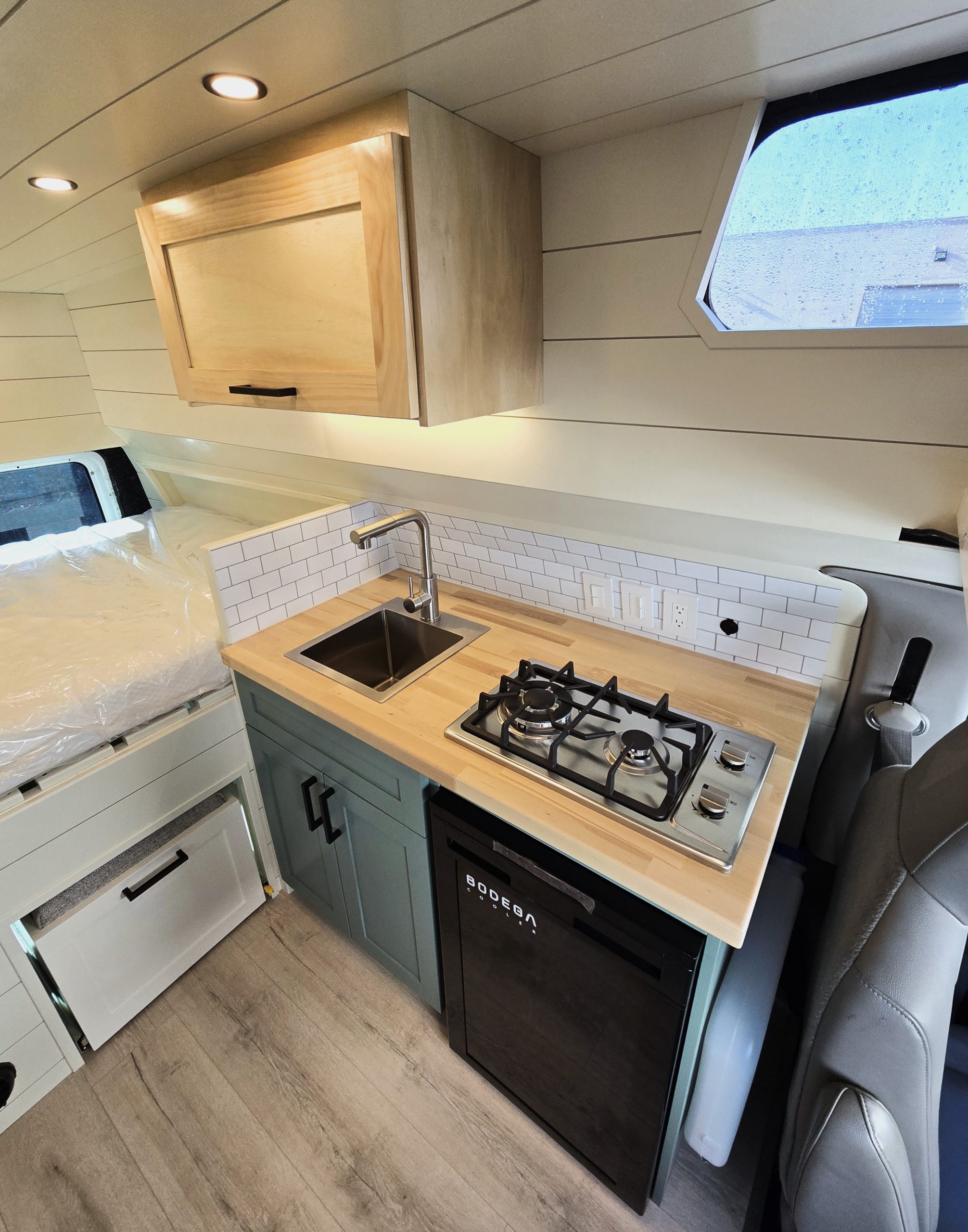

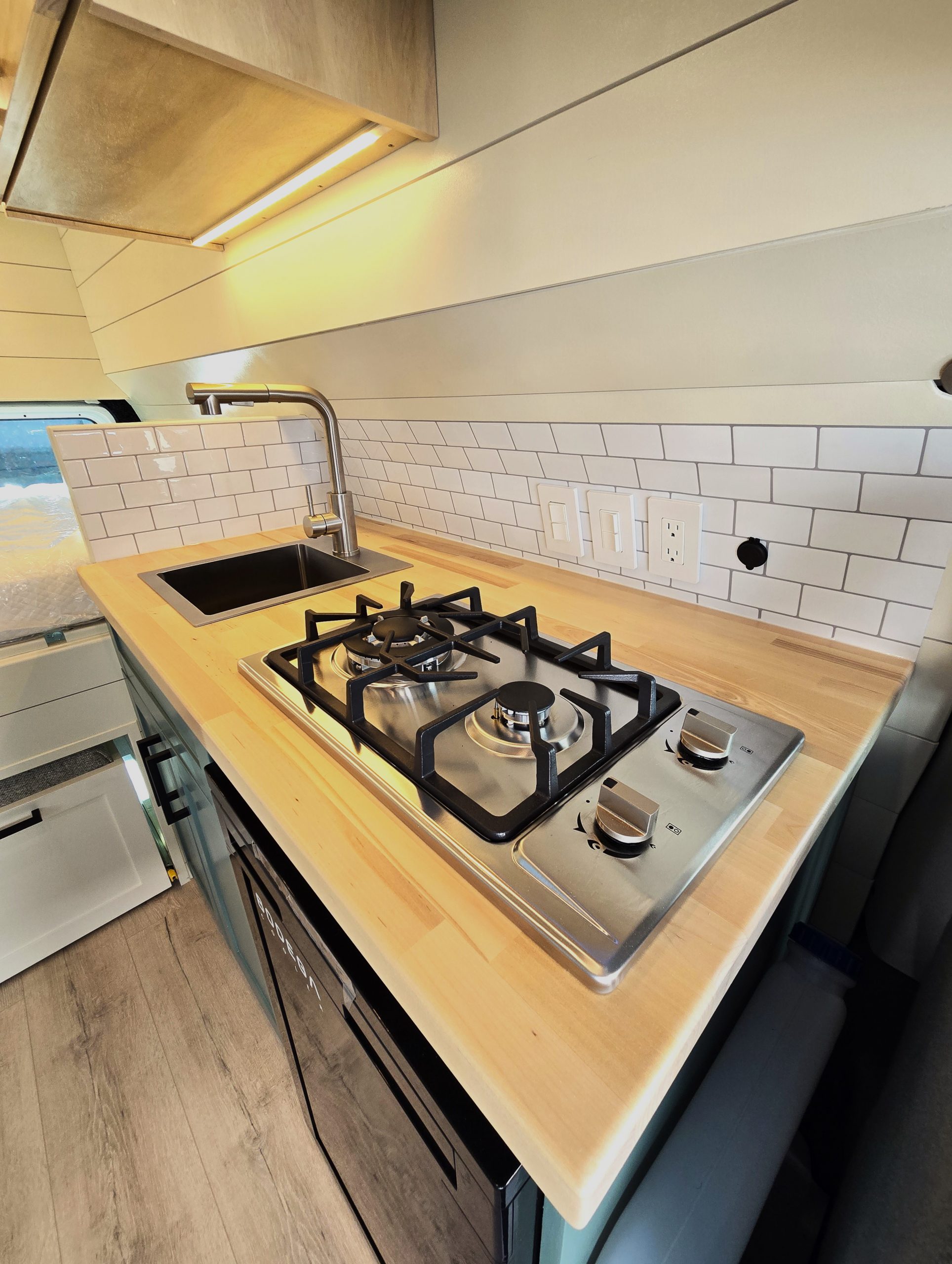

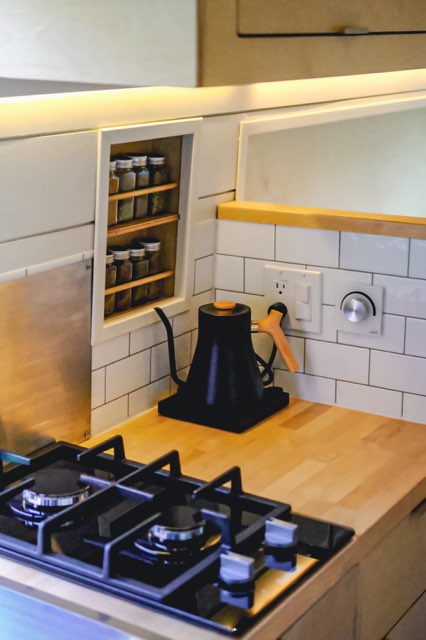

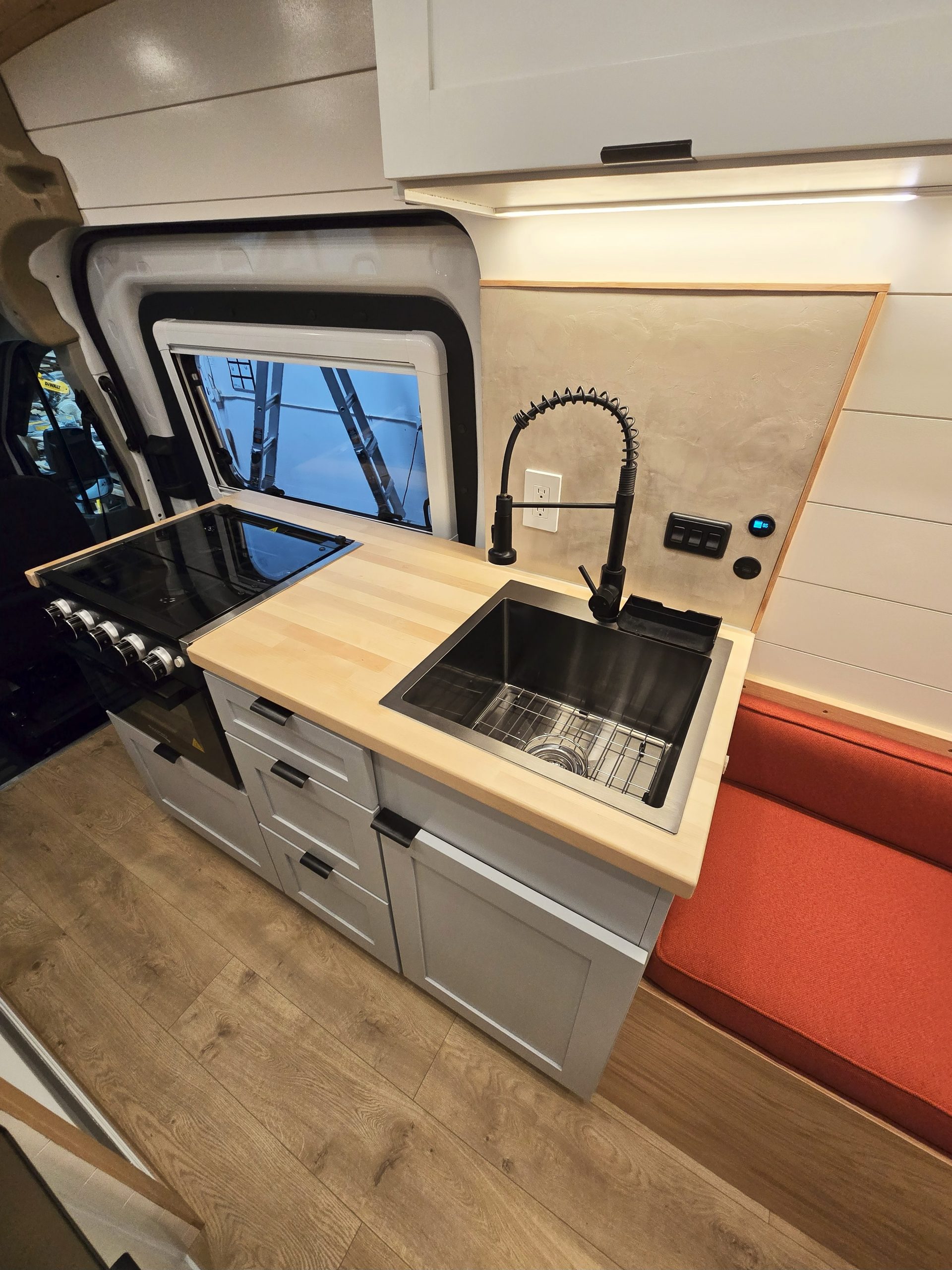

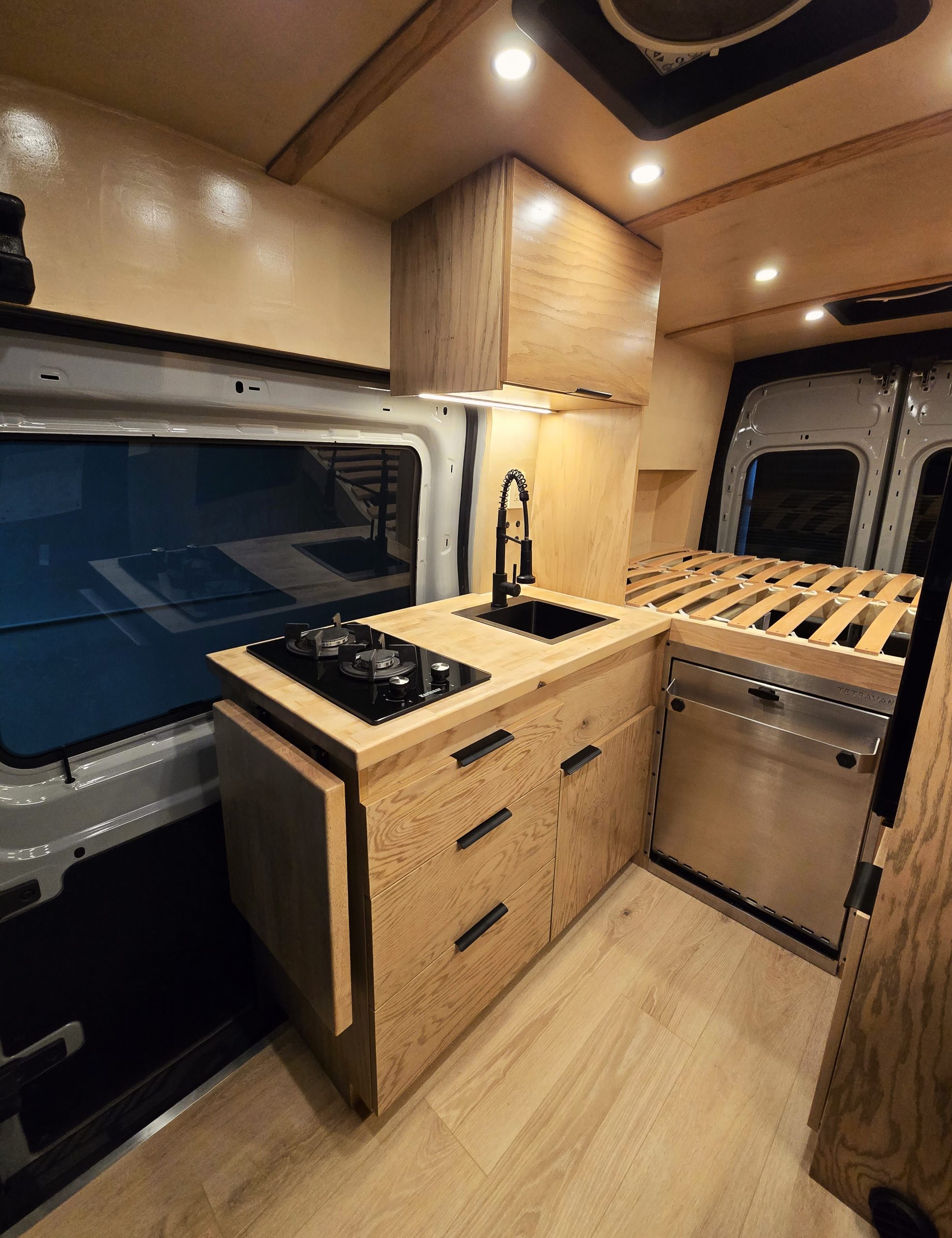

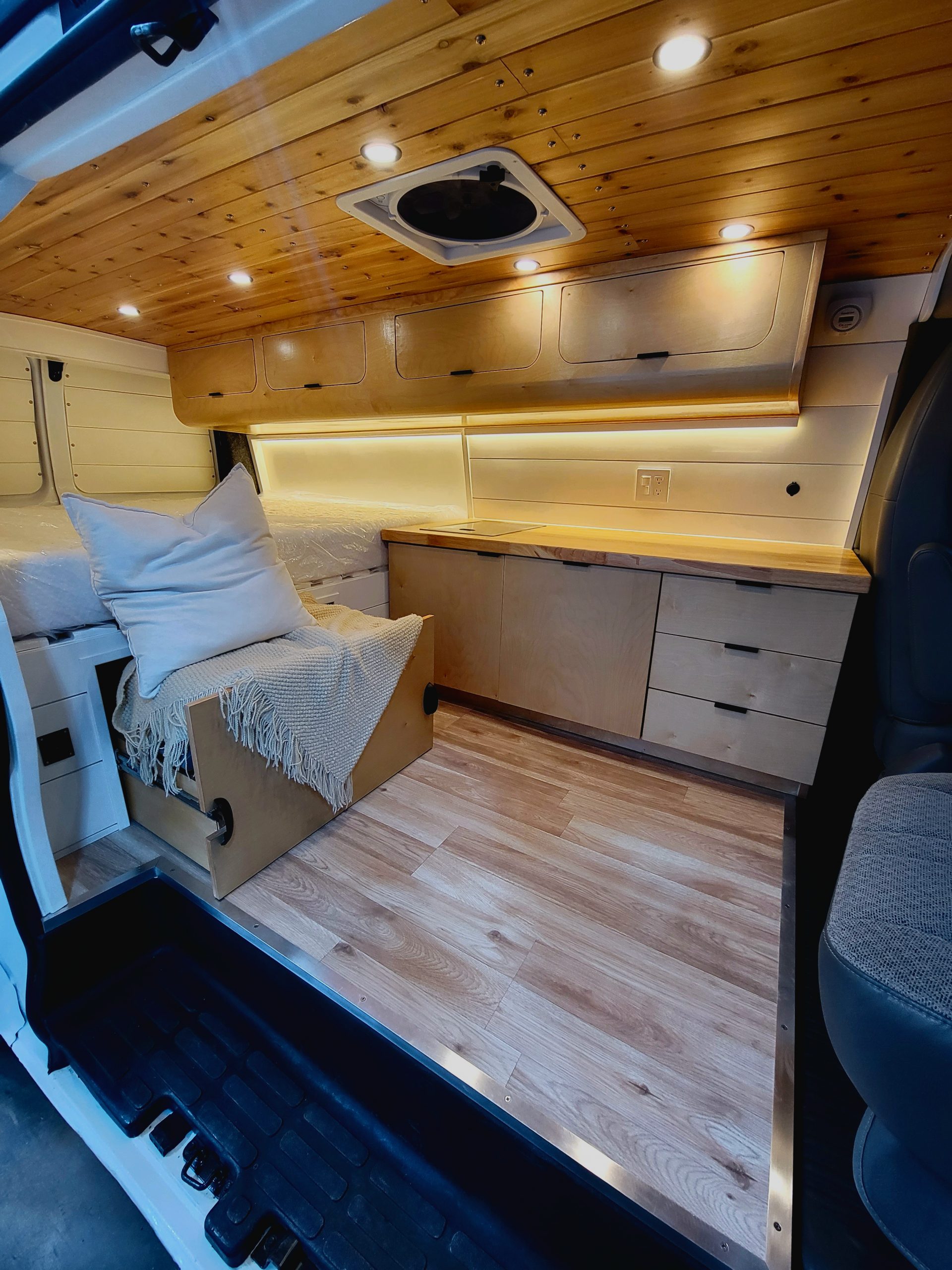

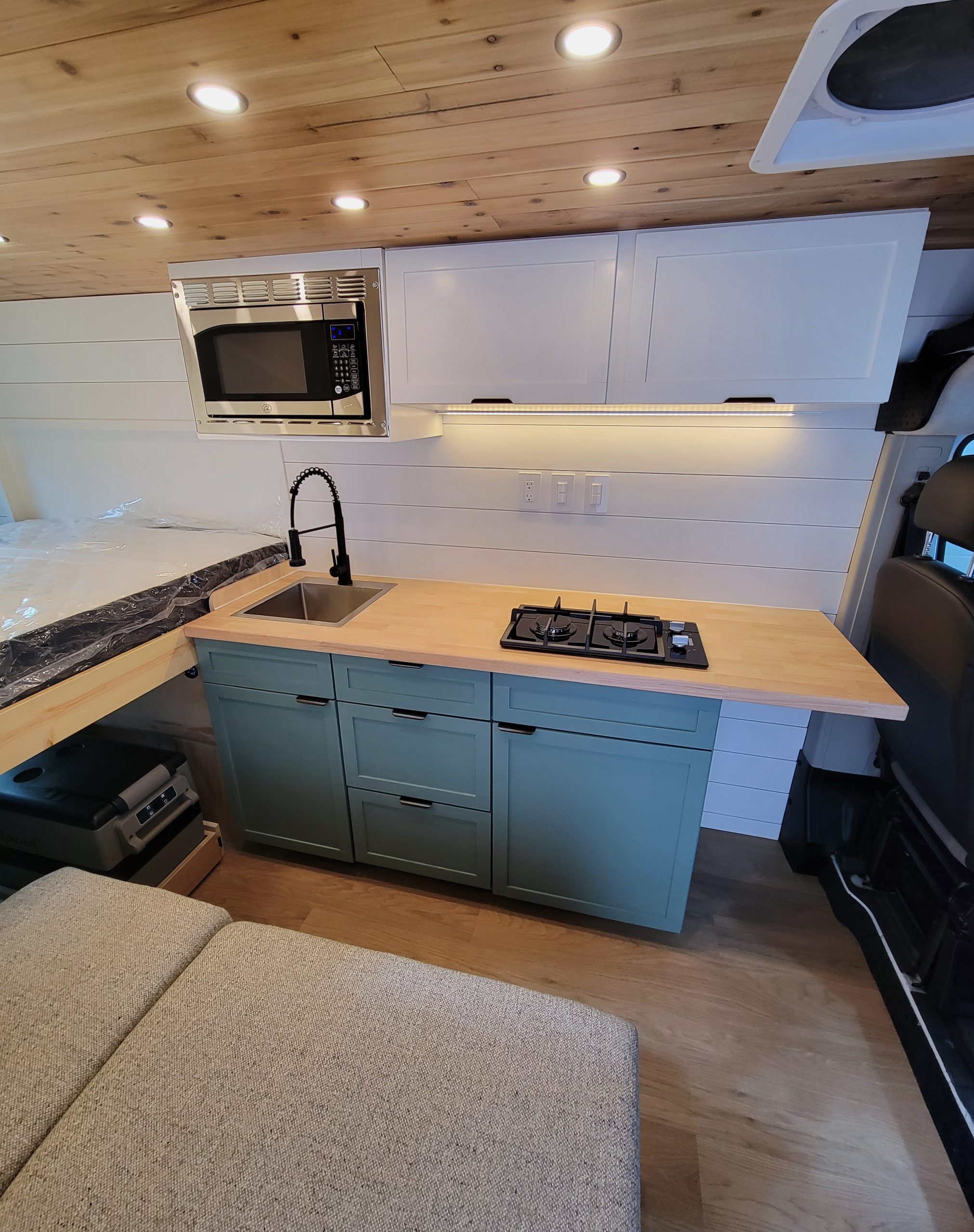

- Butcher block countertop with stainless steel sink and optional water filter

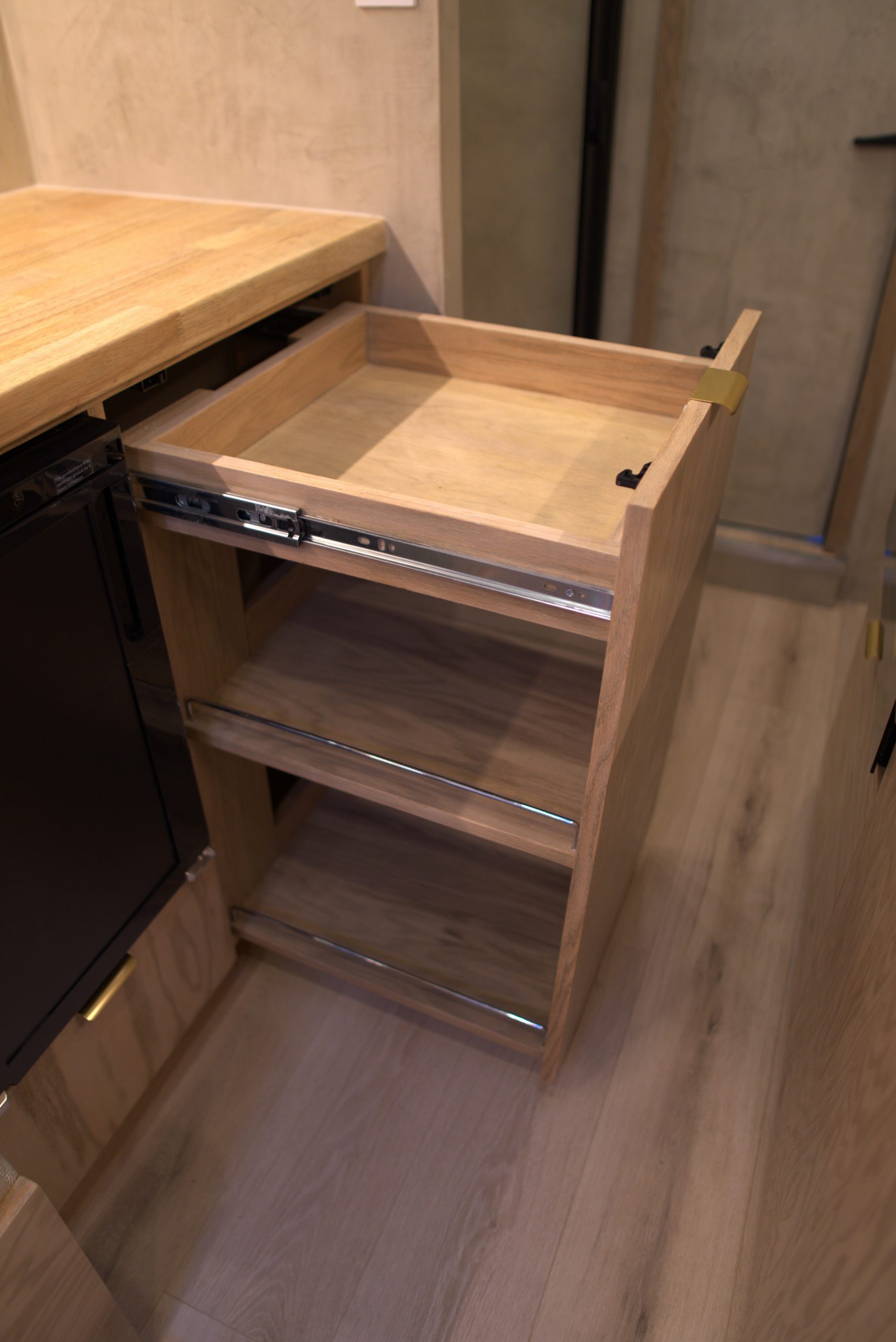

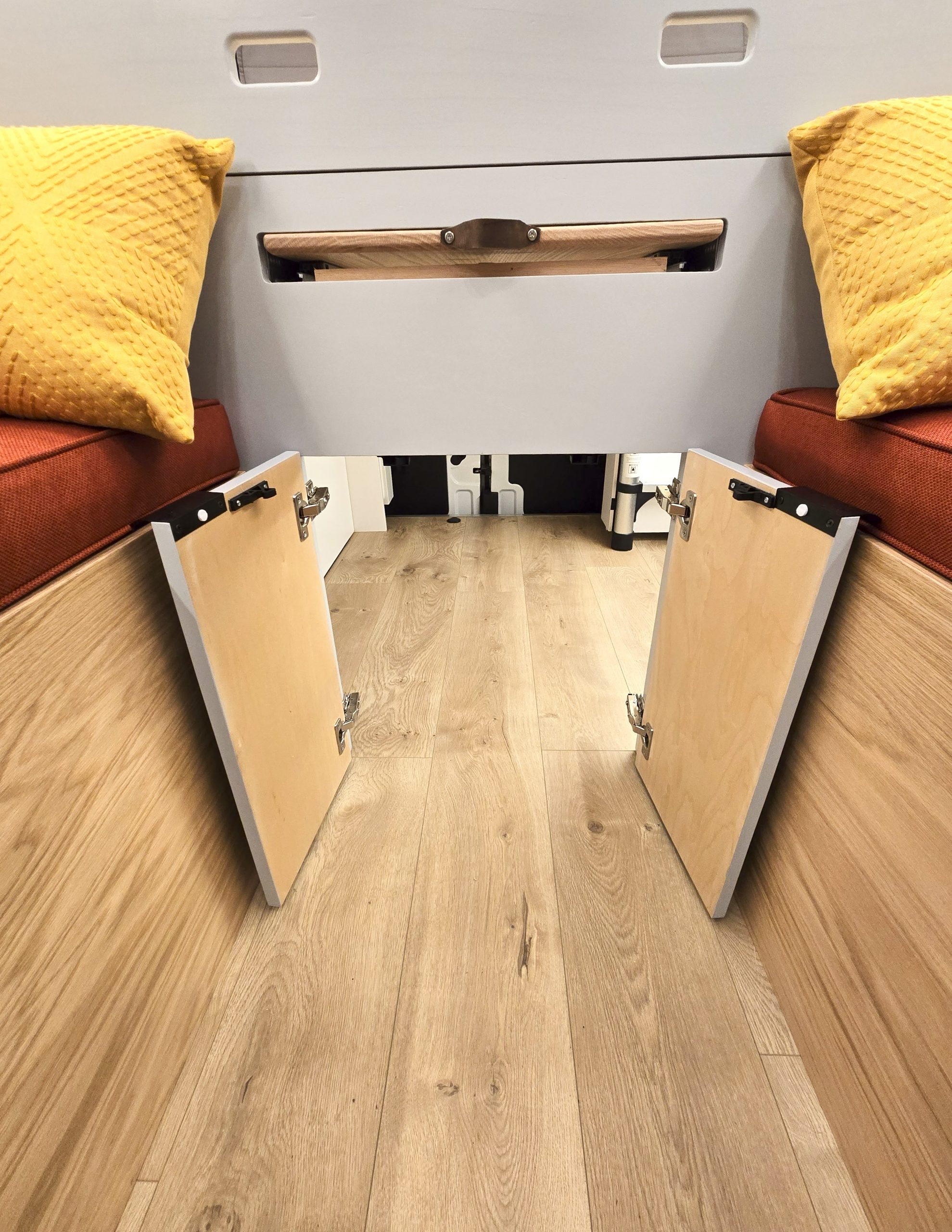

- Base cabinets with deep drawers and ample under-sink storage

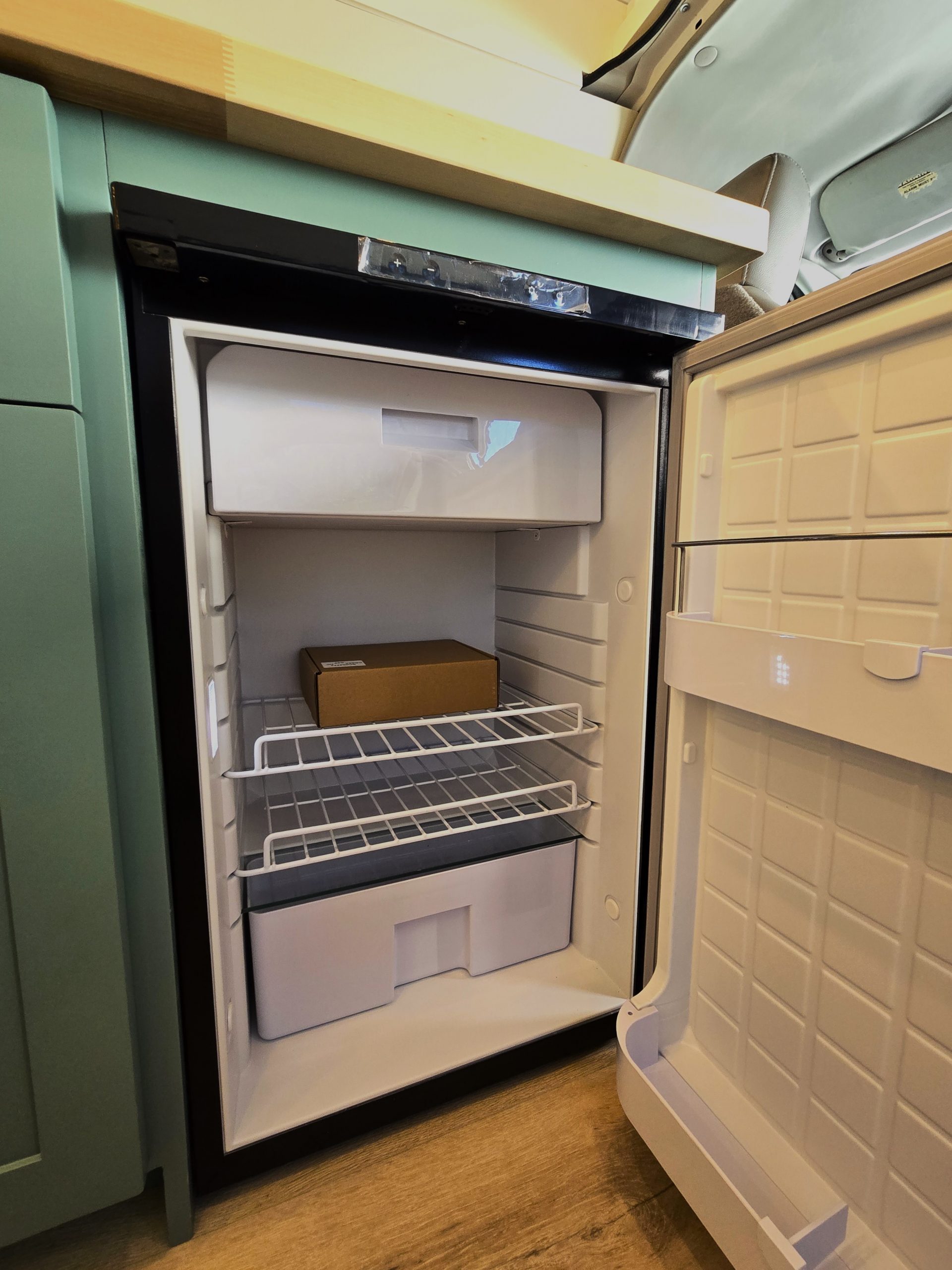

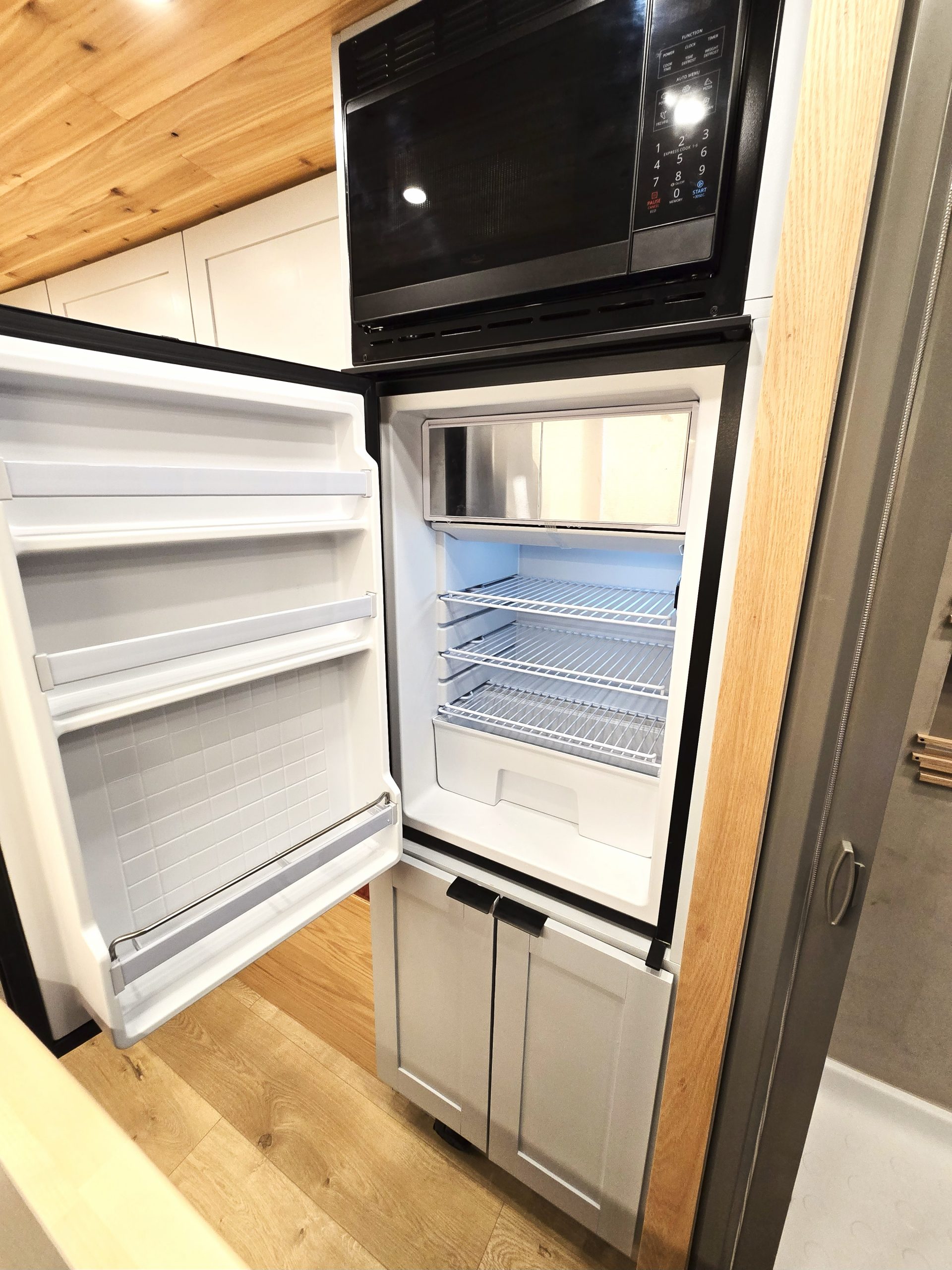

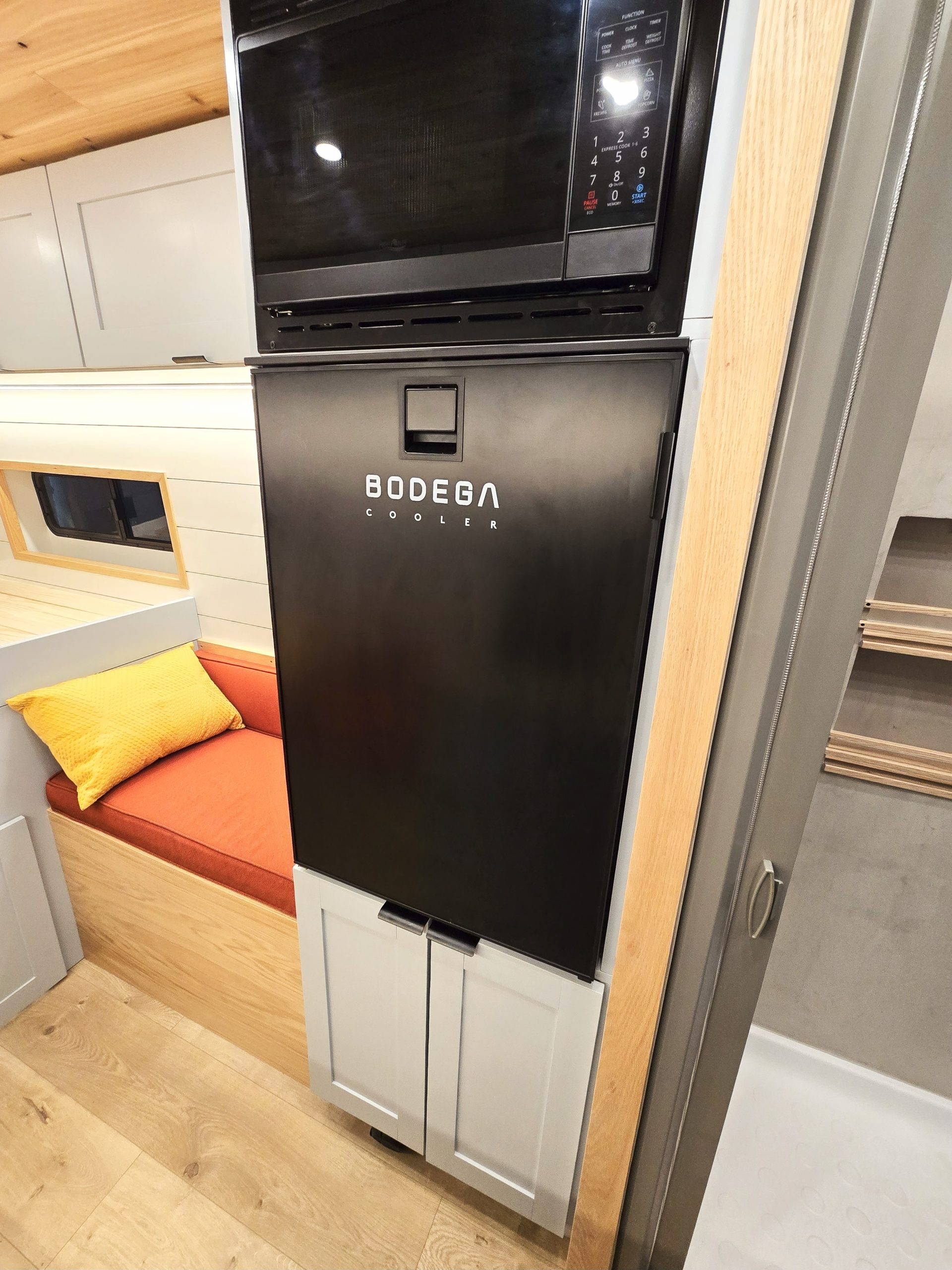

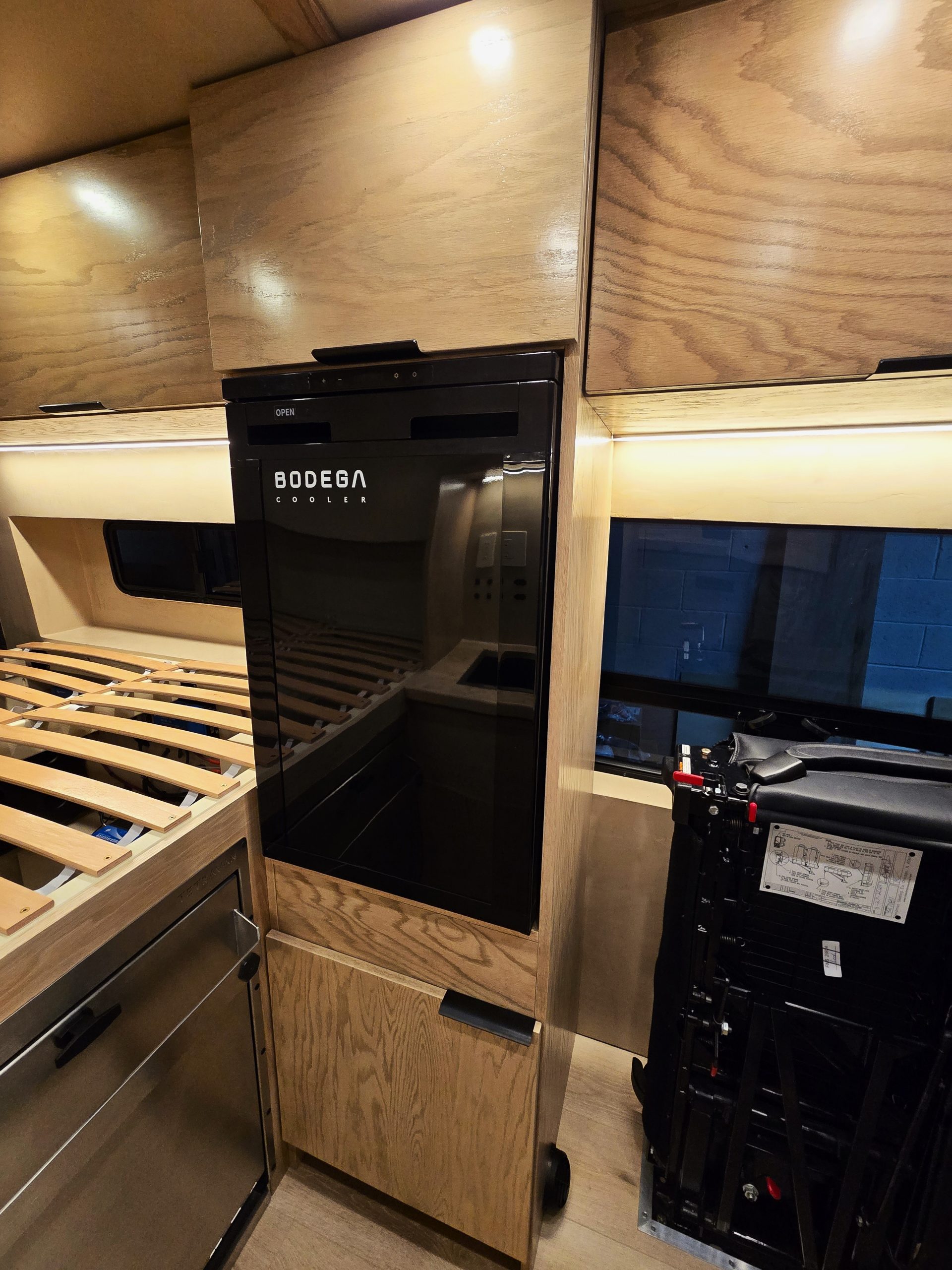

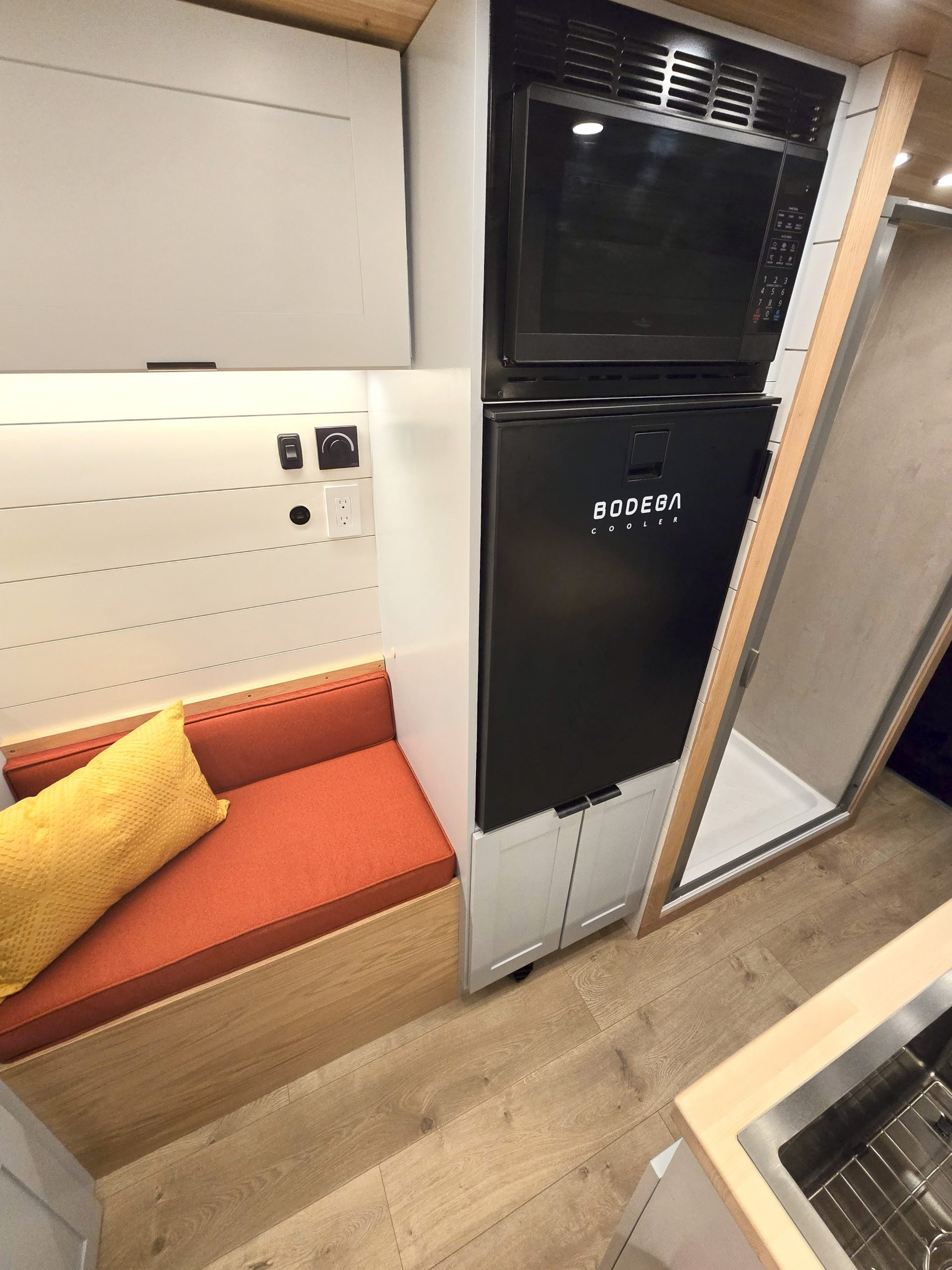

- 110L fridge with freezer compartment

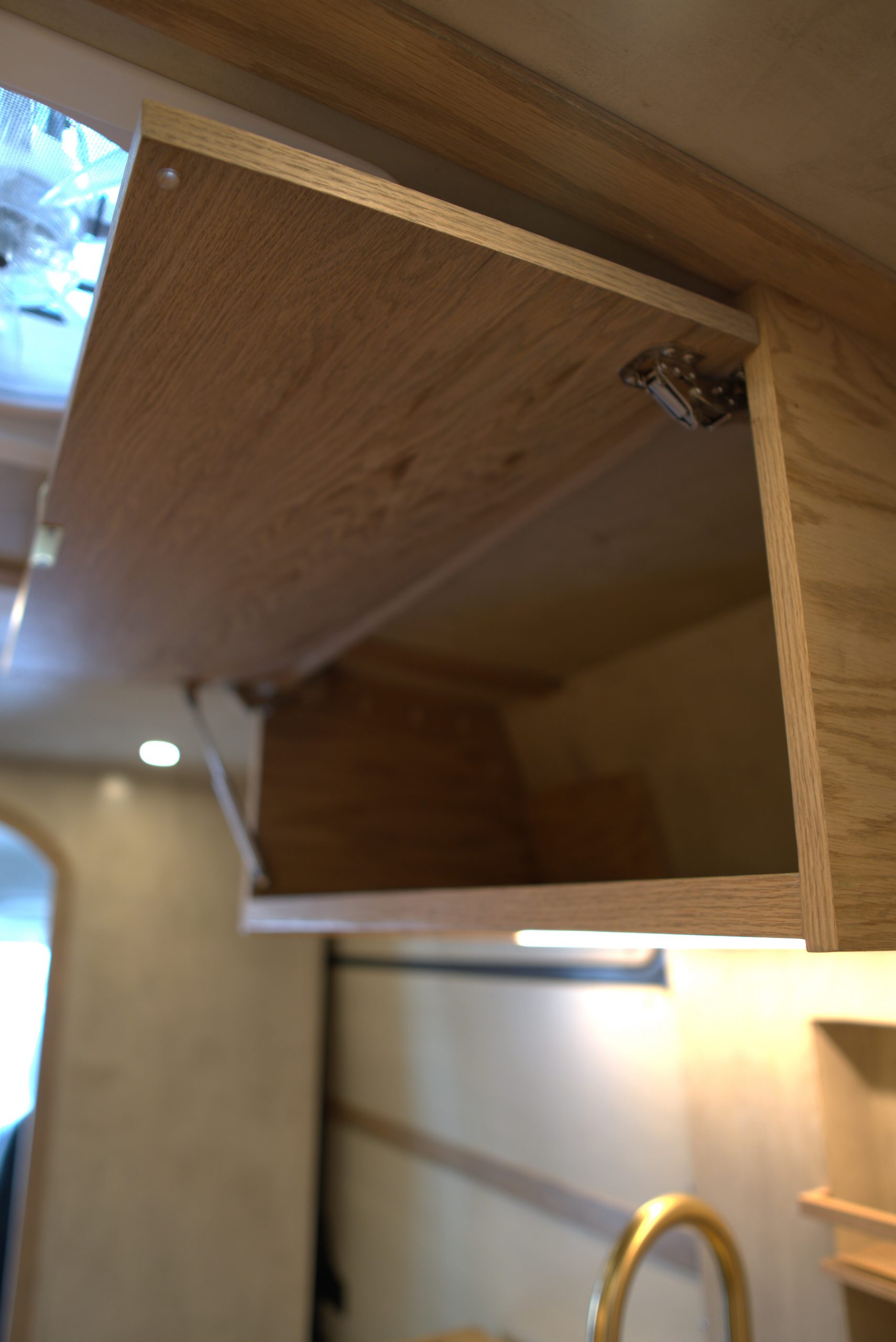

- Upper cabinets for additional storage

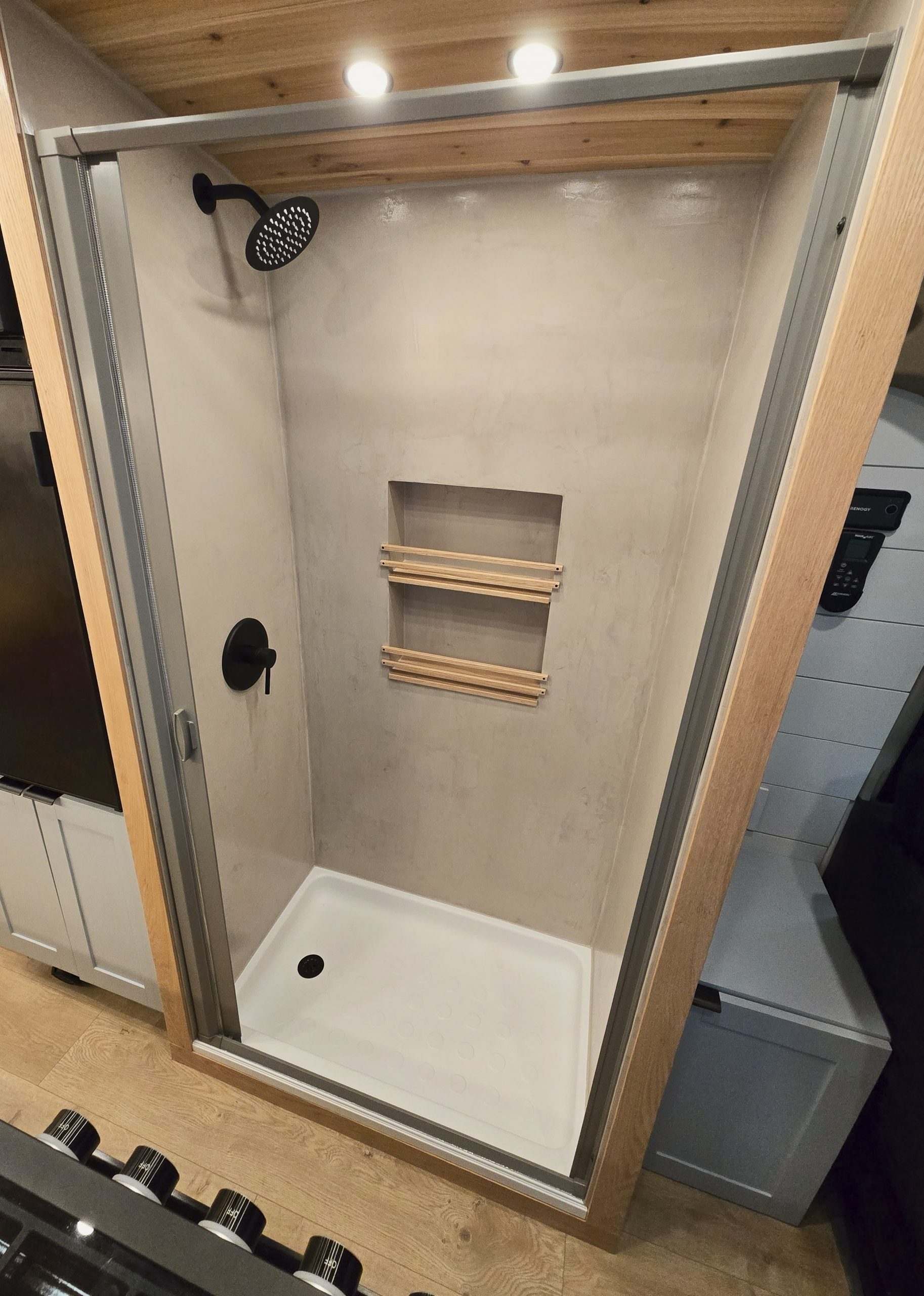

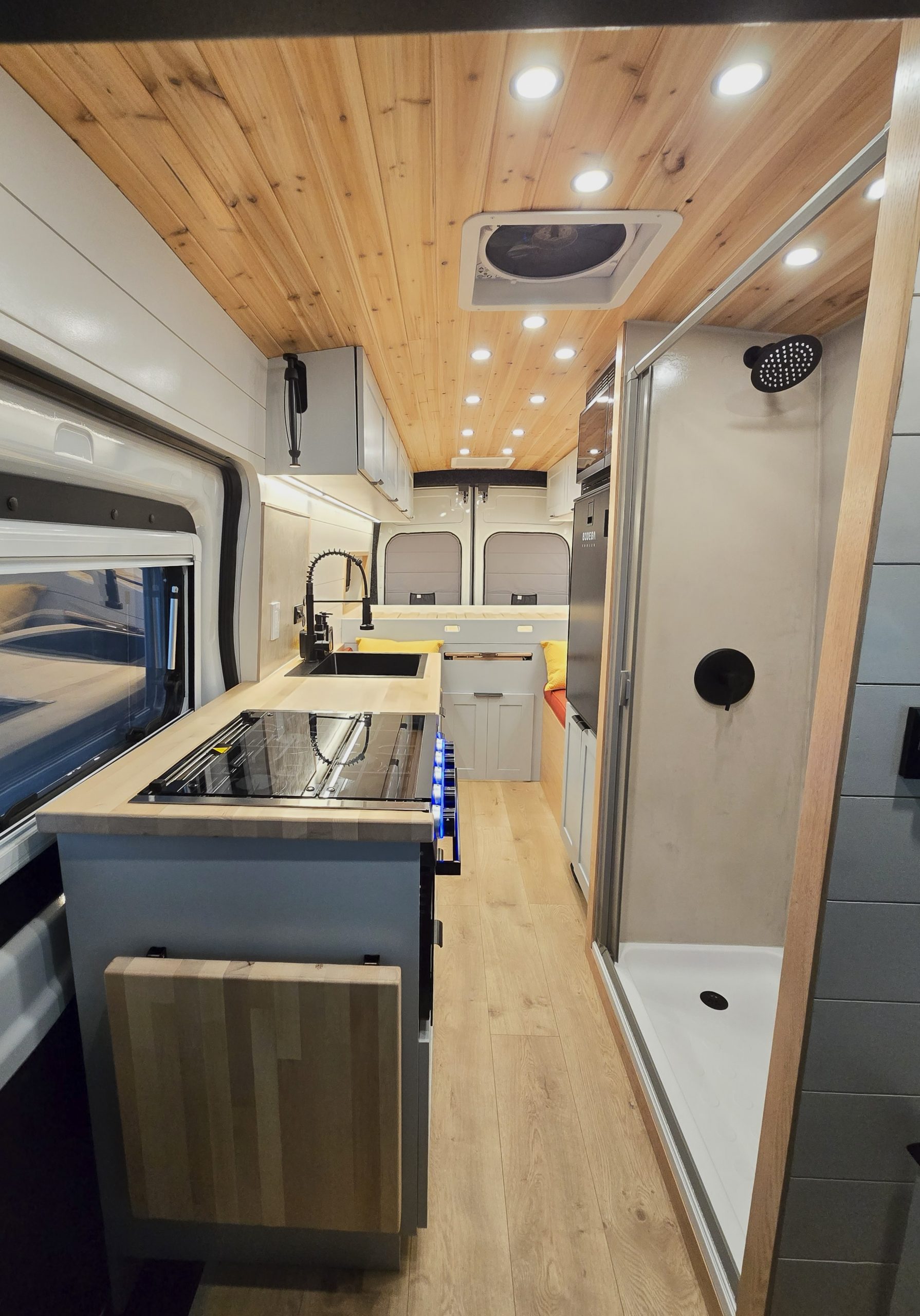

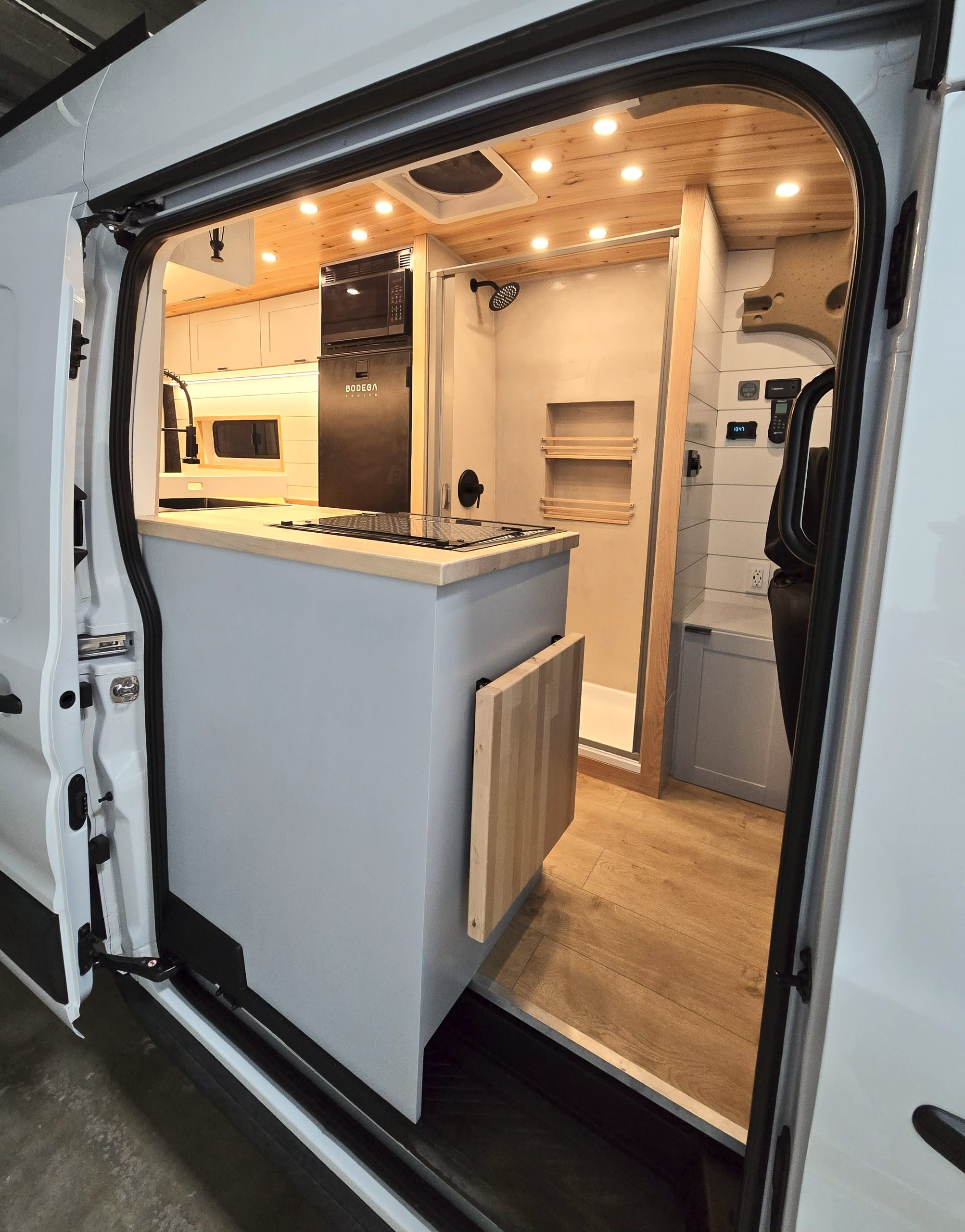

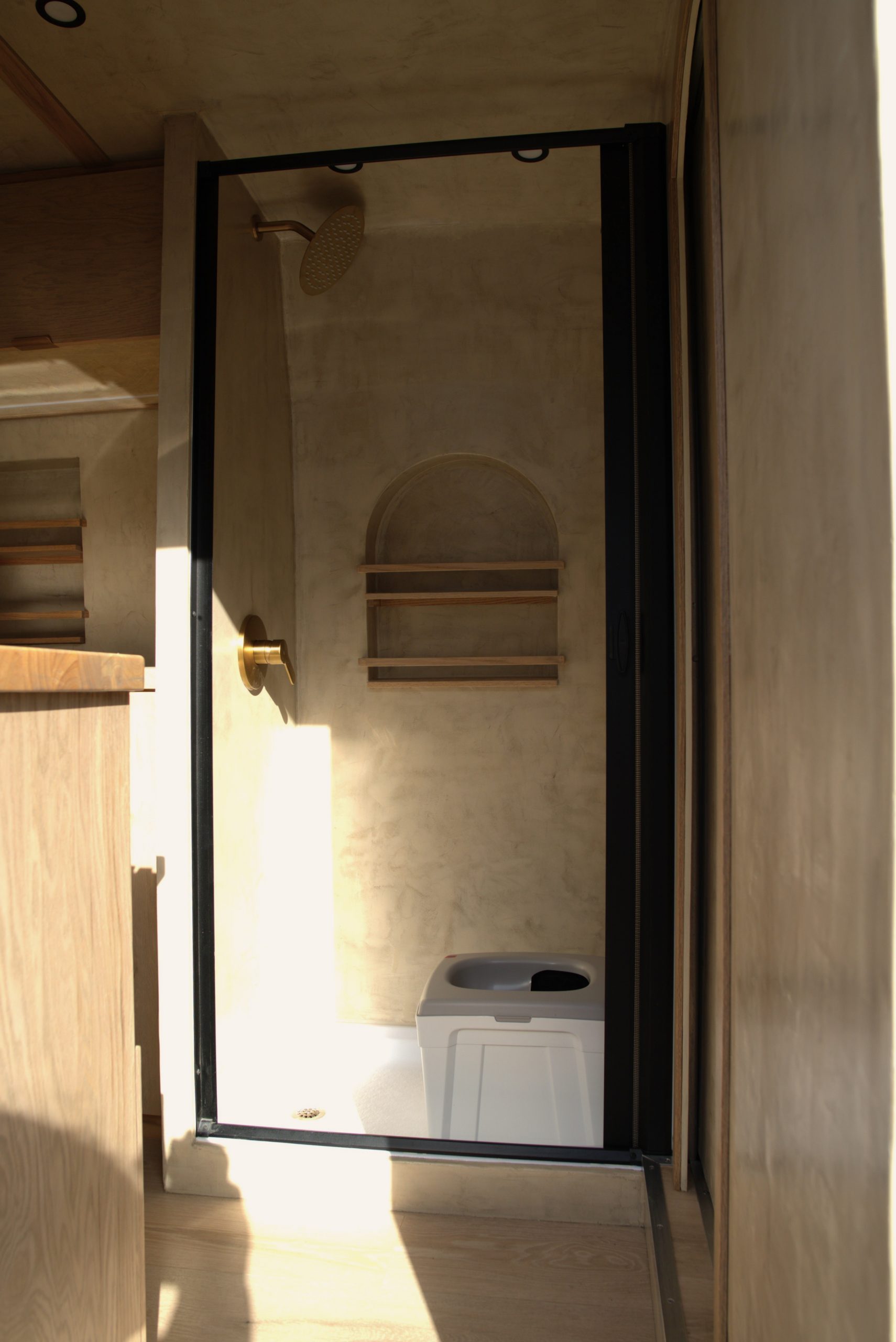

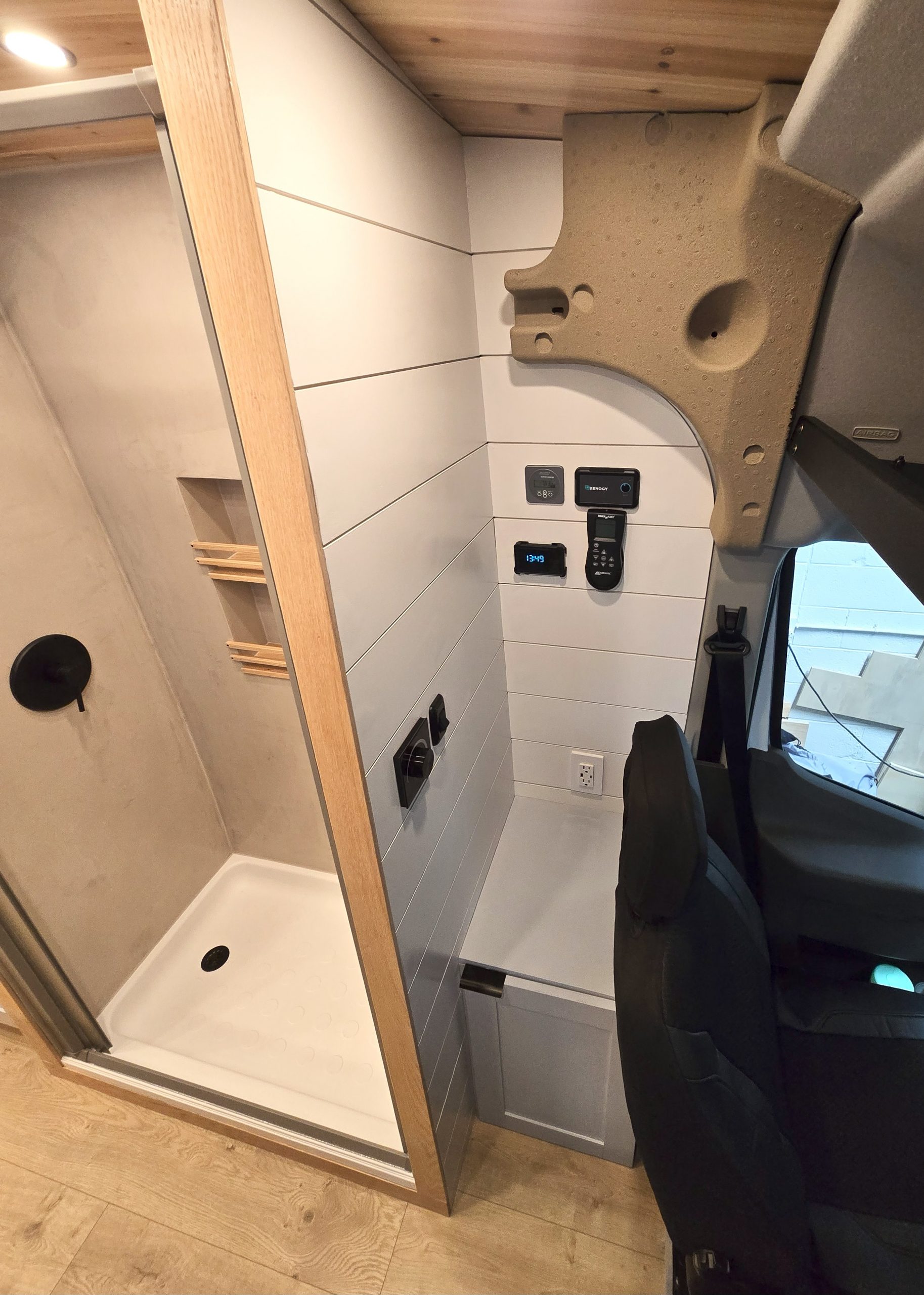

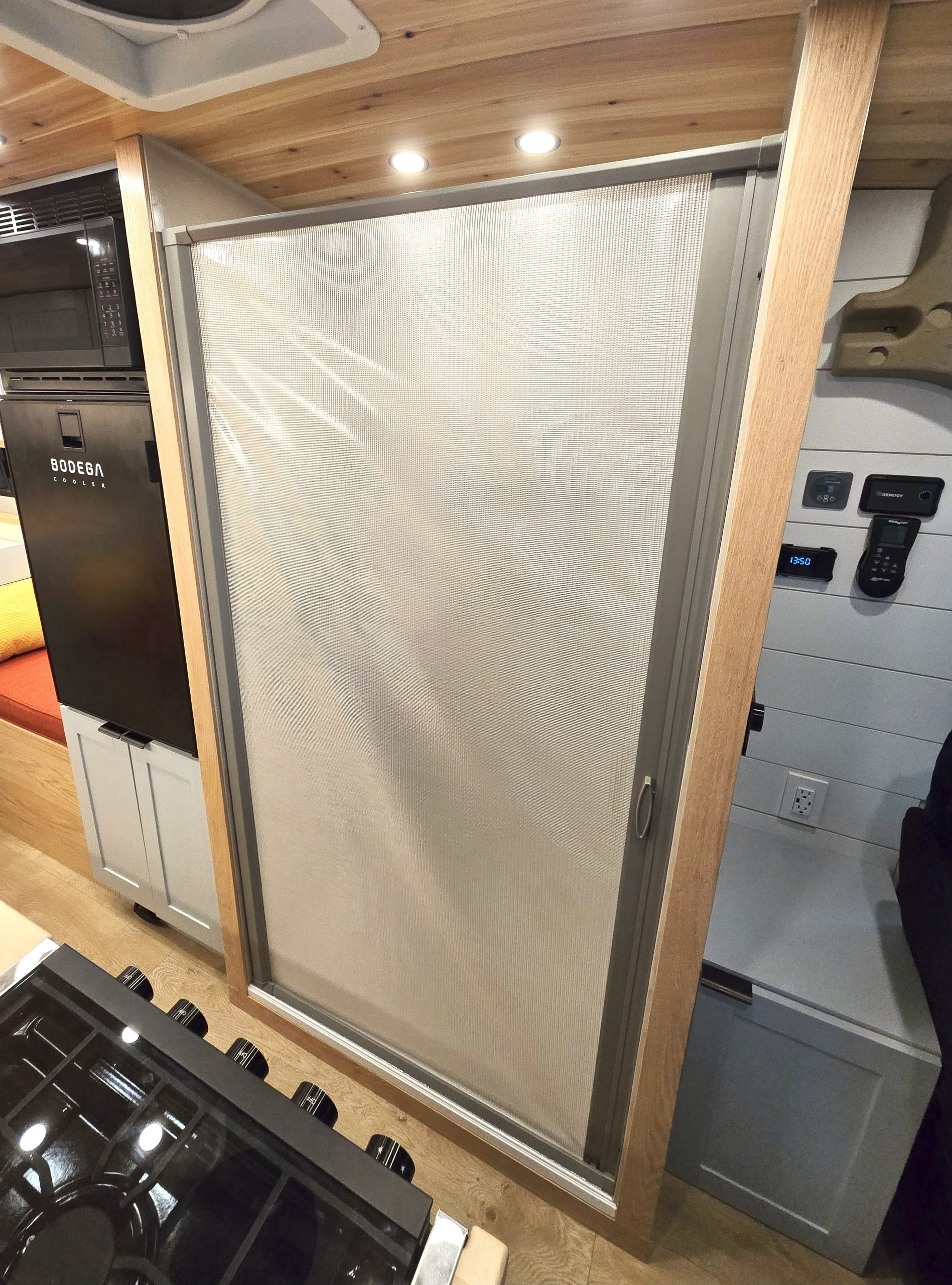

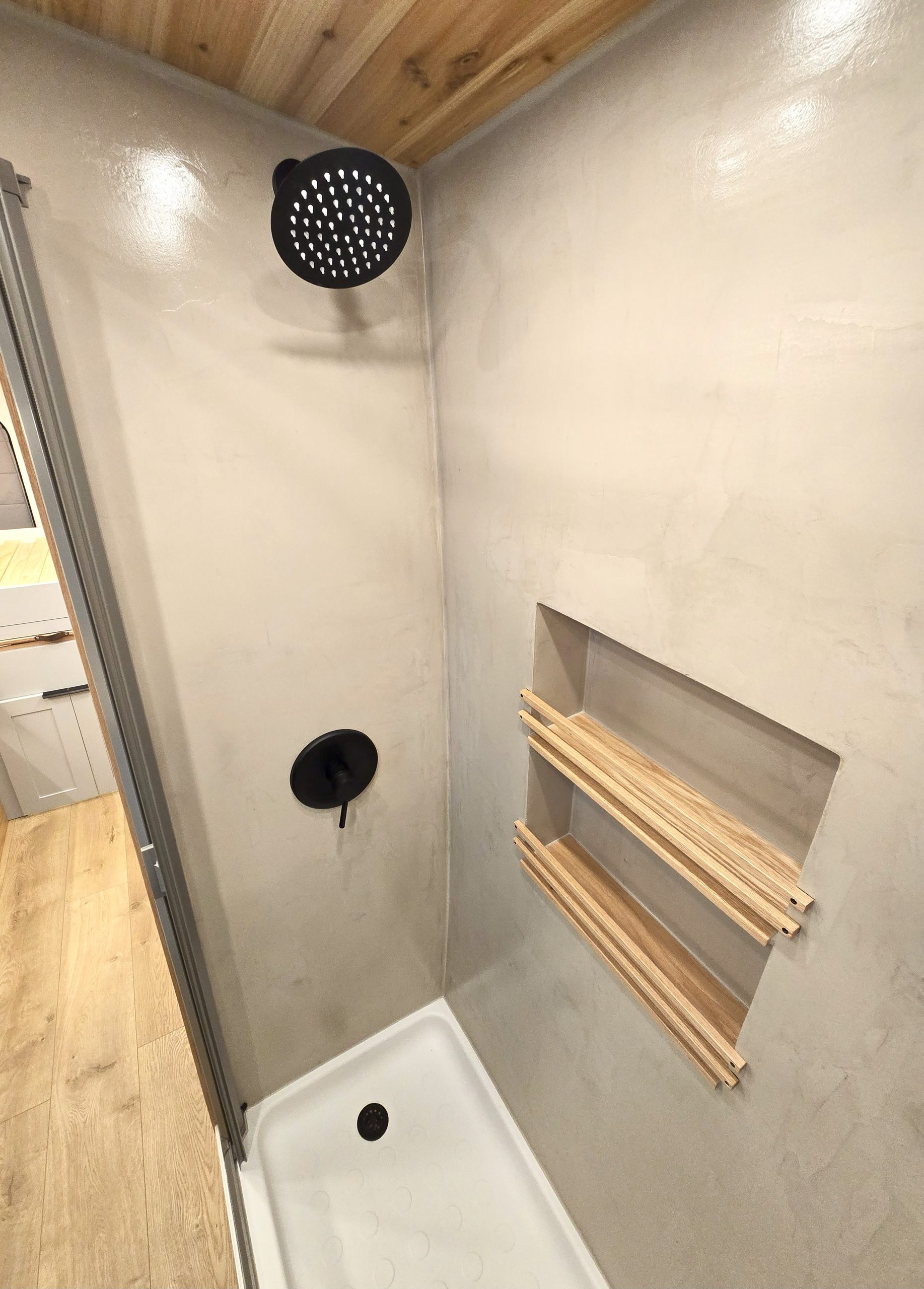

- 24” x 36” shower with waterproof microcement, integrated soap nook, and self-cleaning retractable door

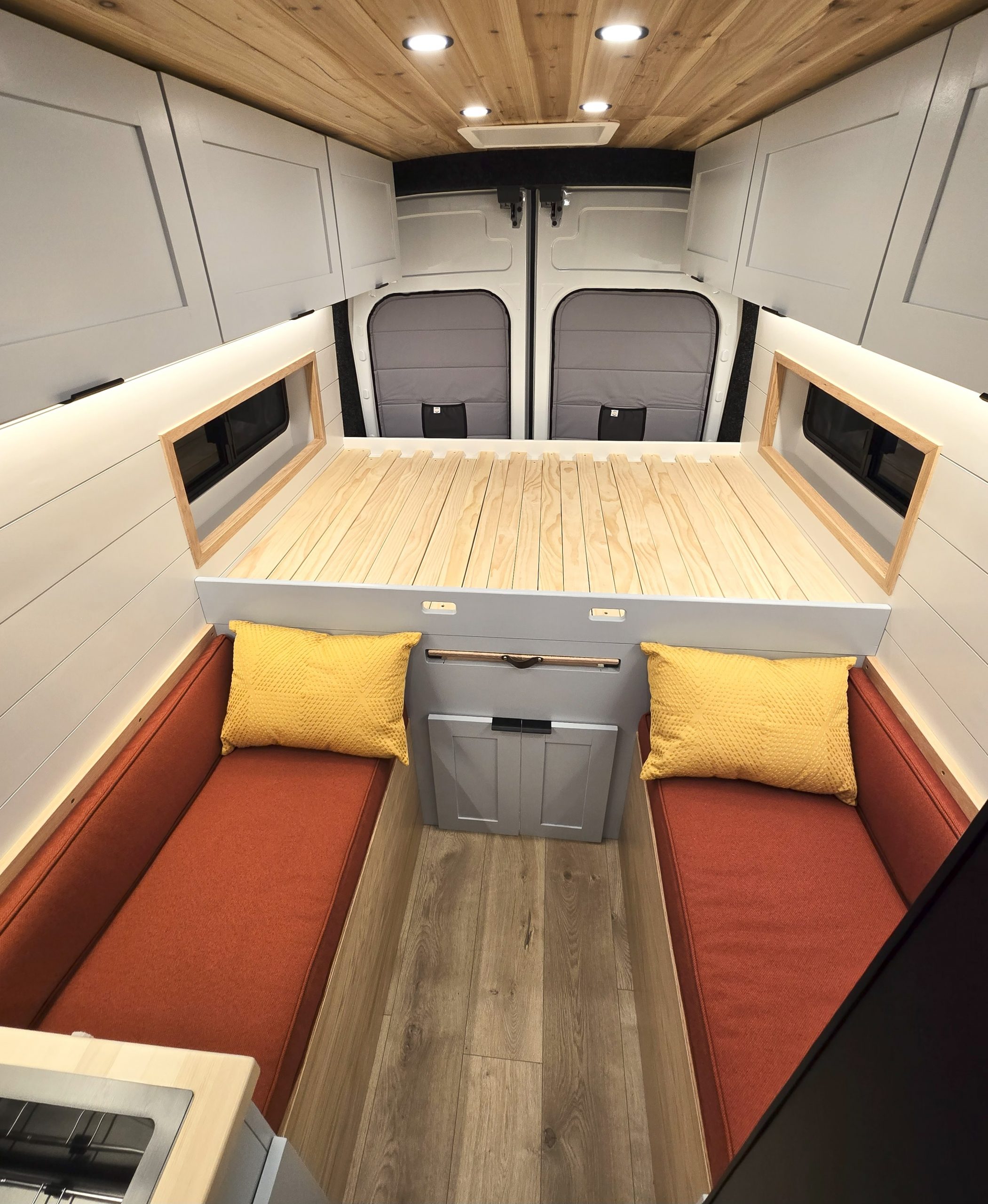

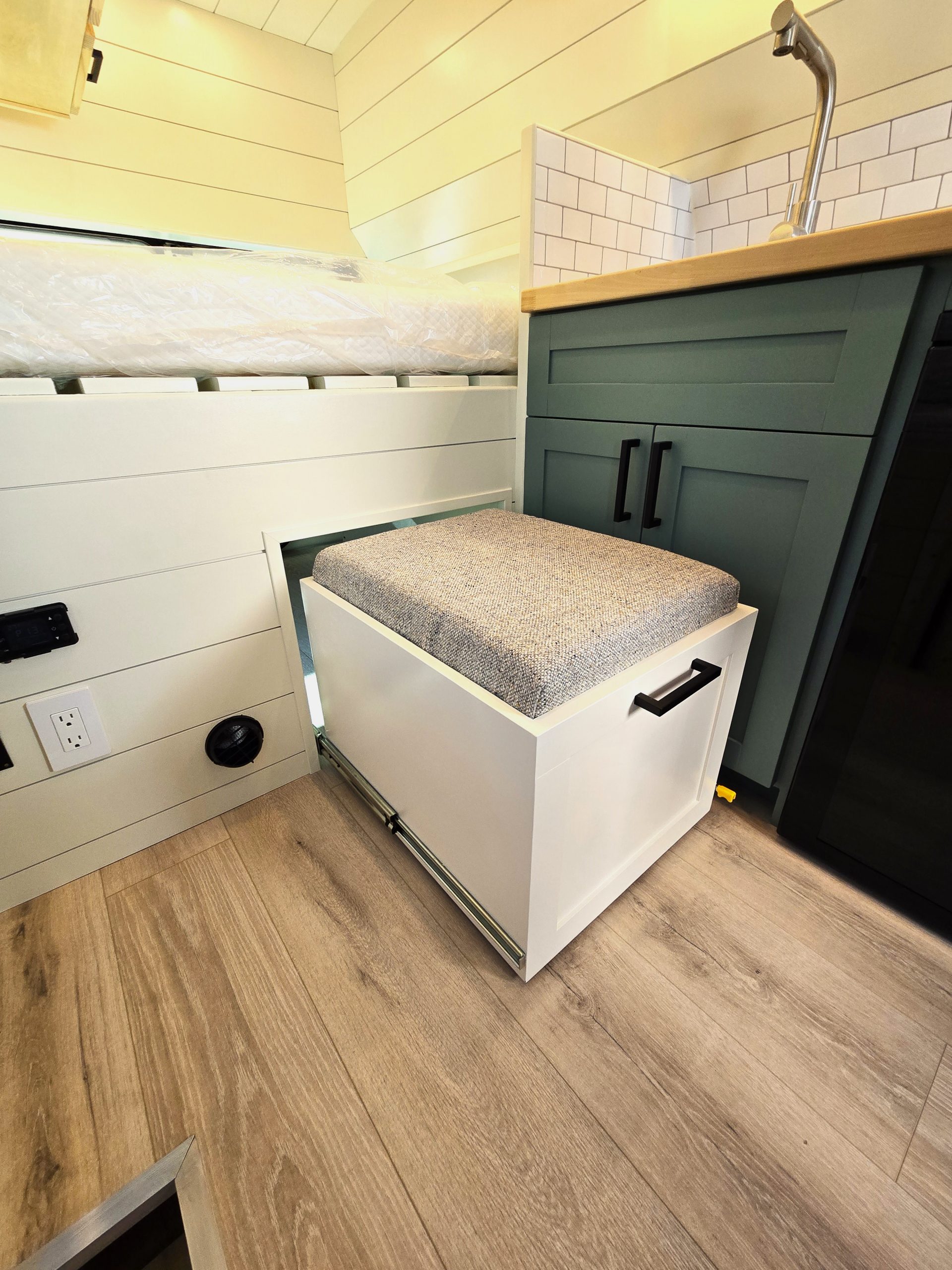

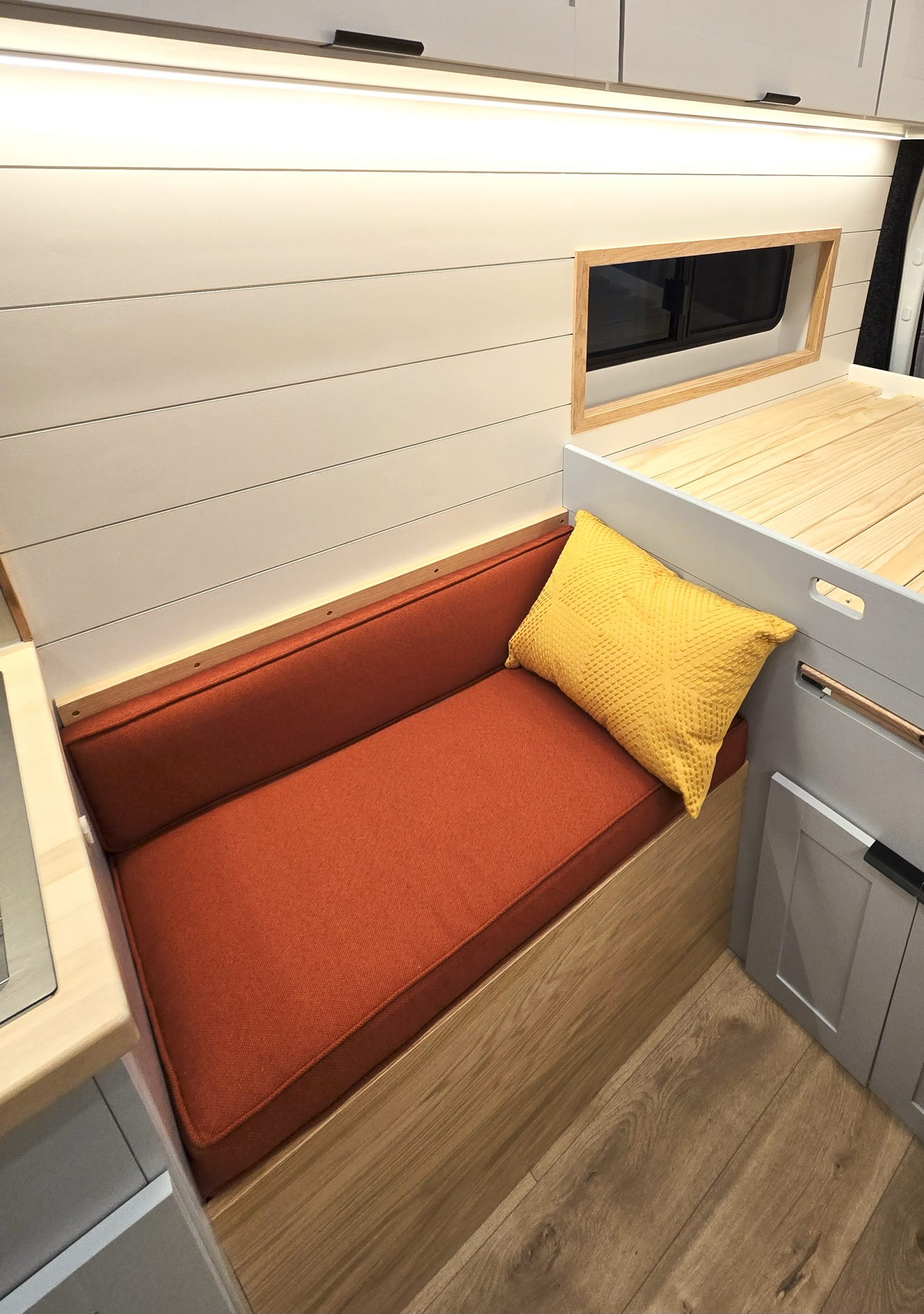

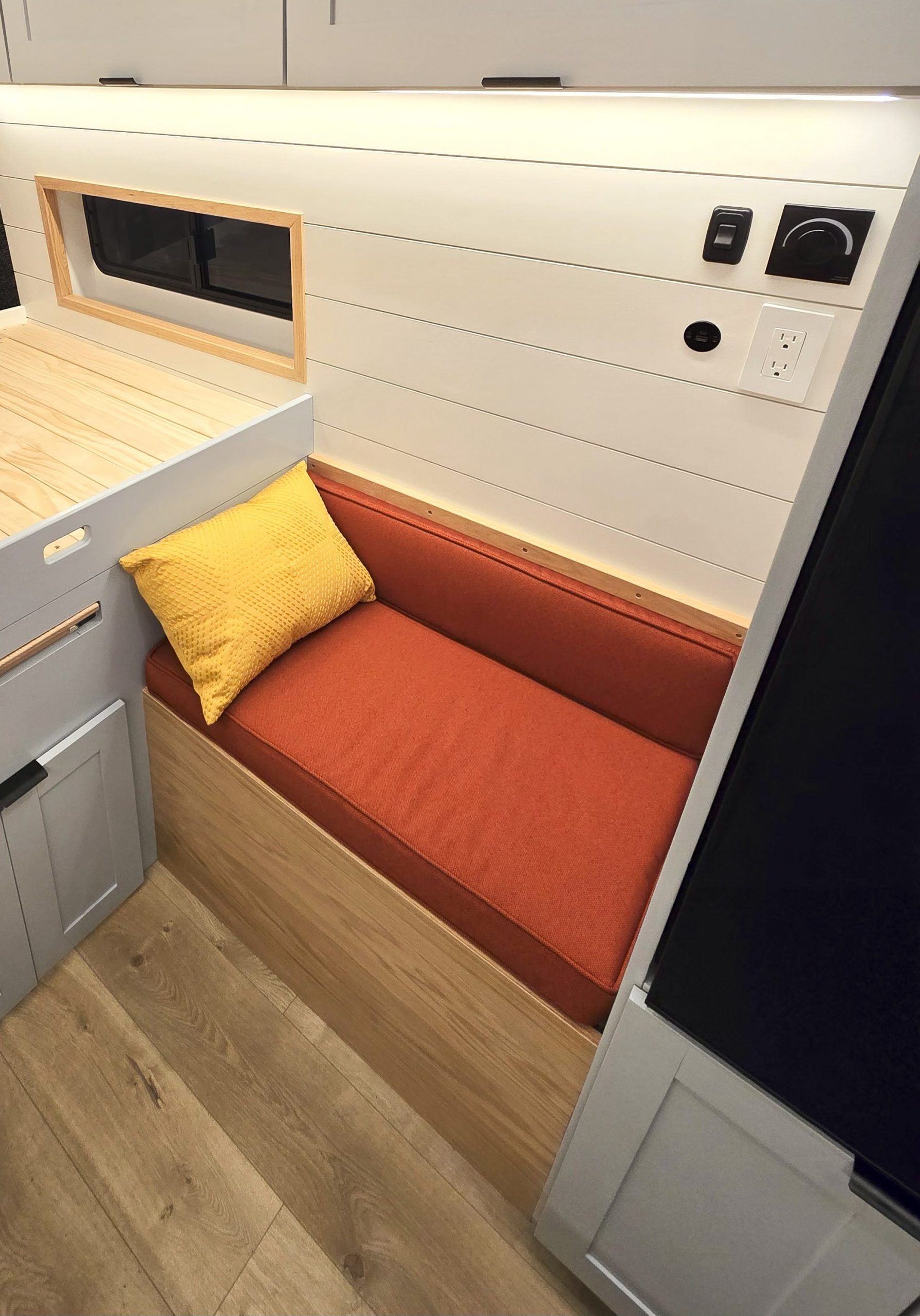

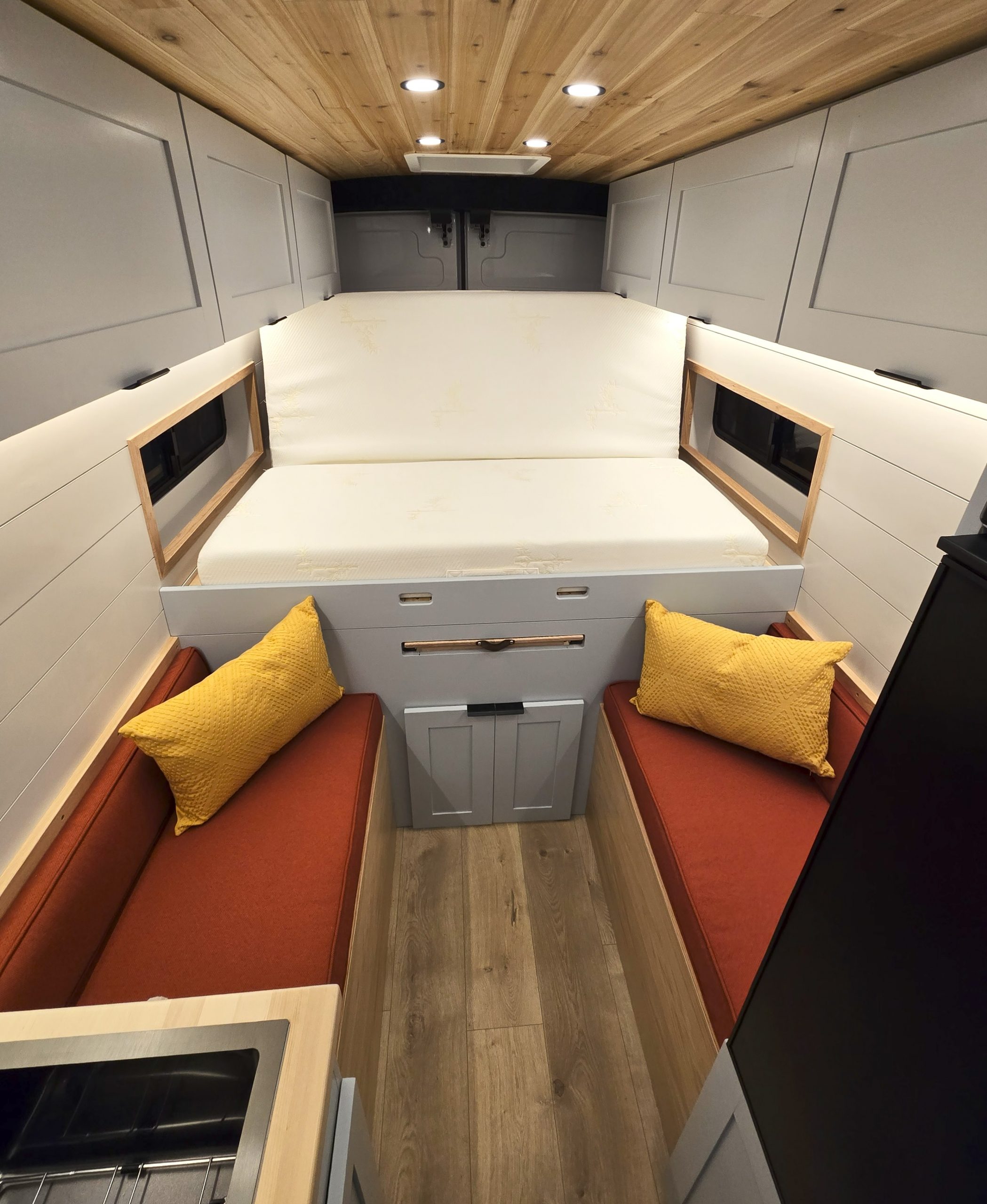

- Bench seating with custom upholstery cushions

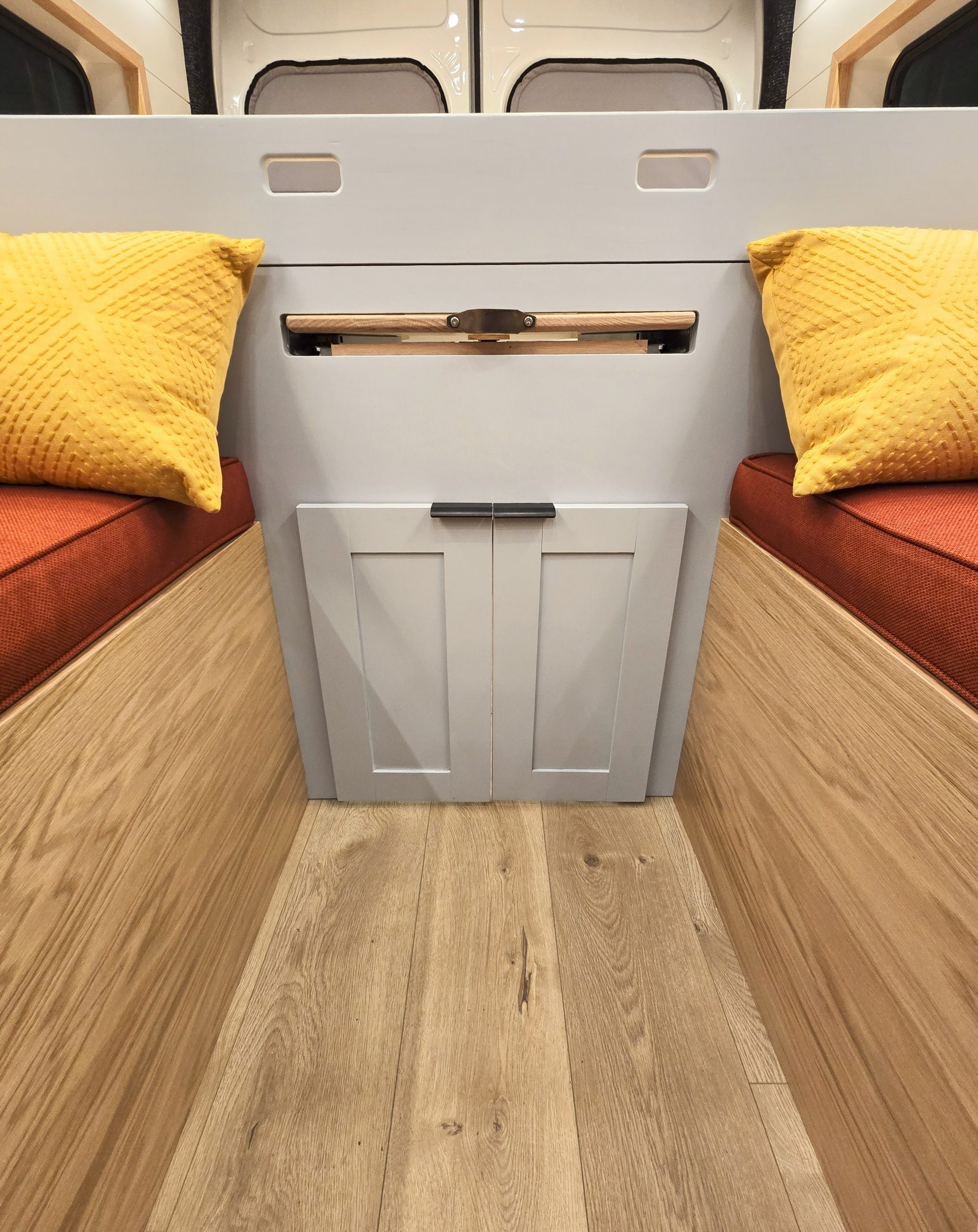

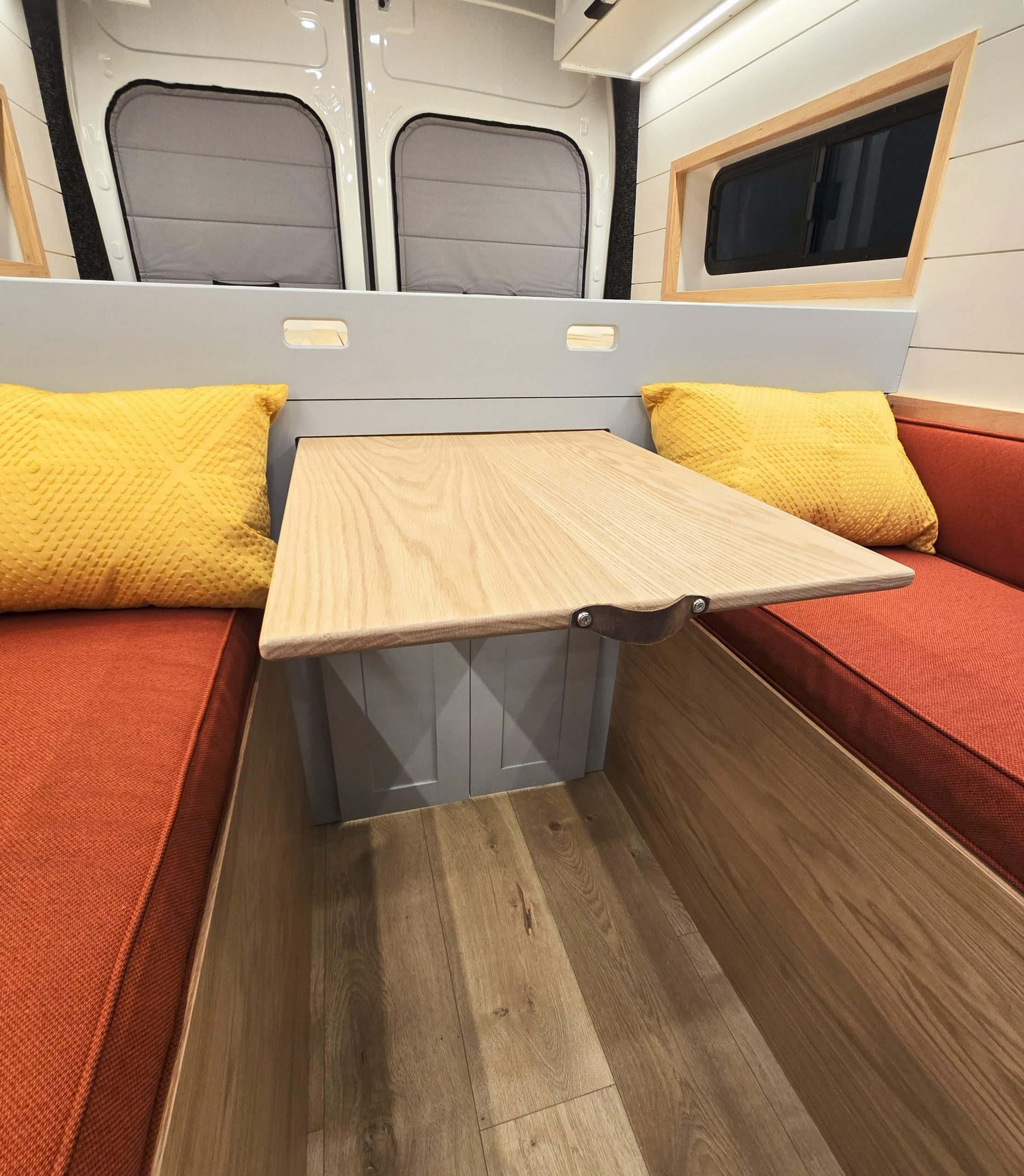

- Pull-out solid oak table under bed

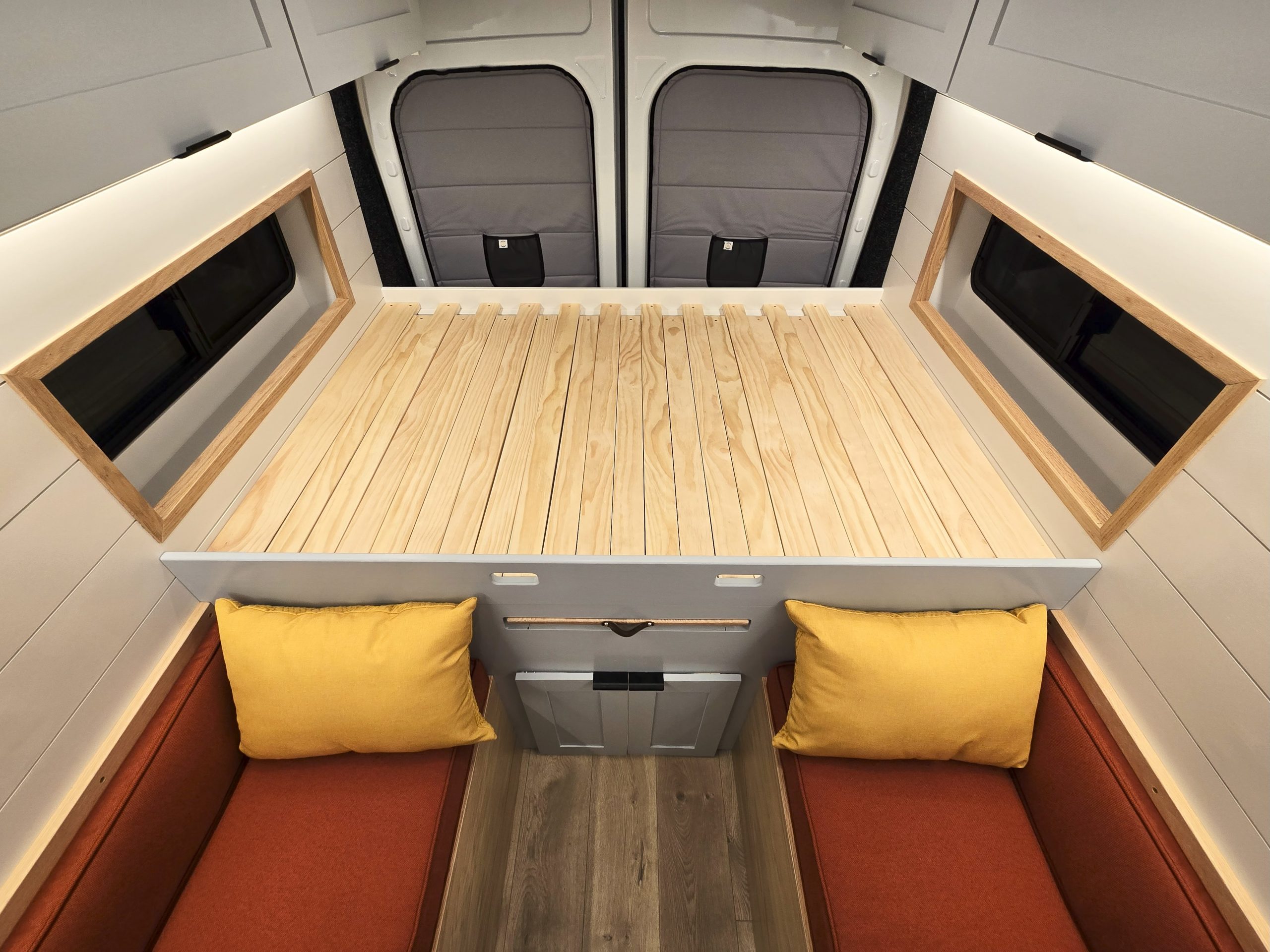

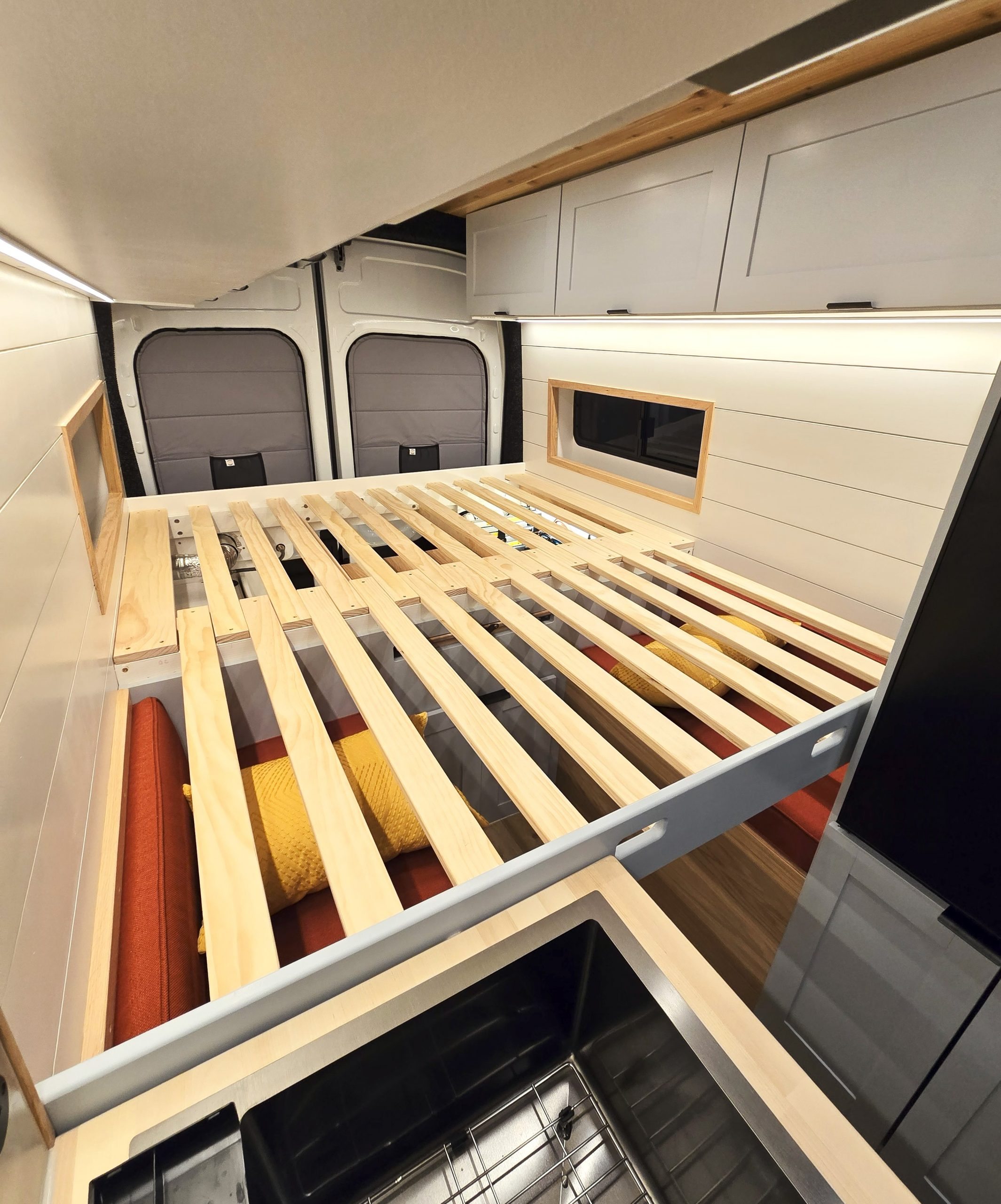

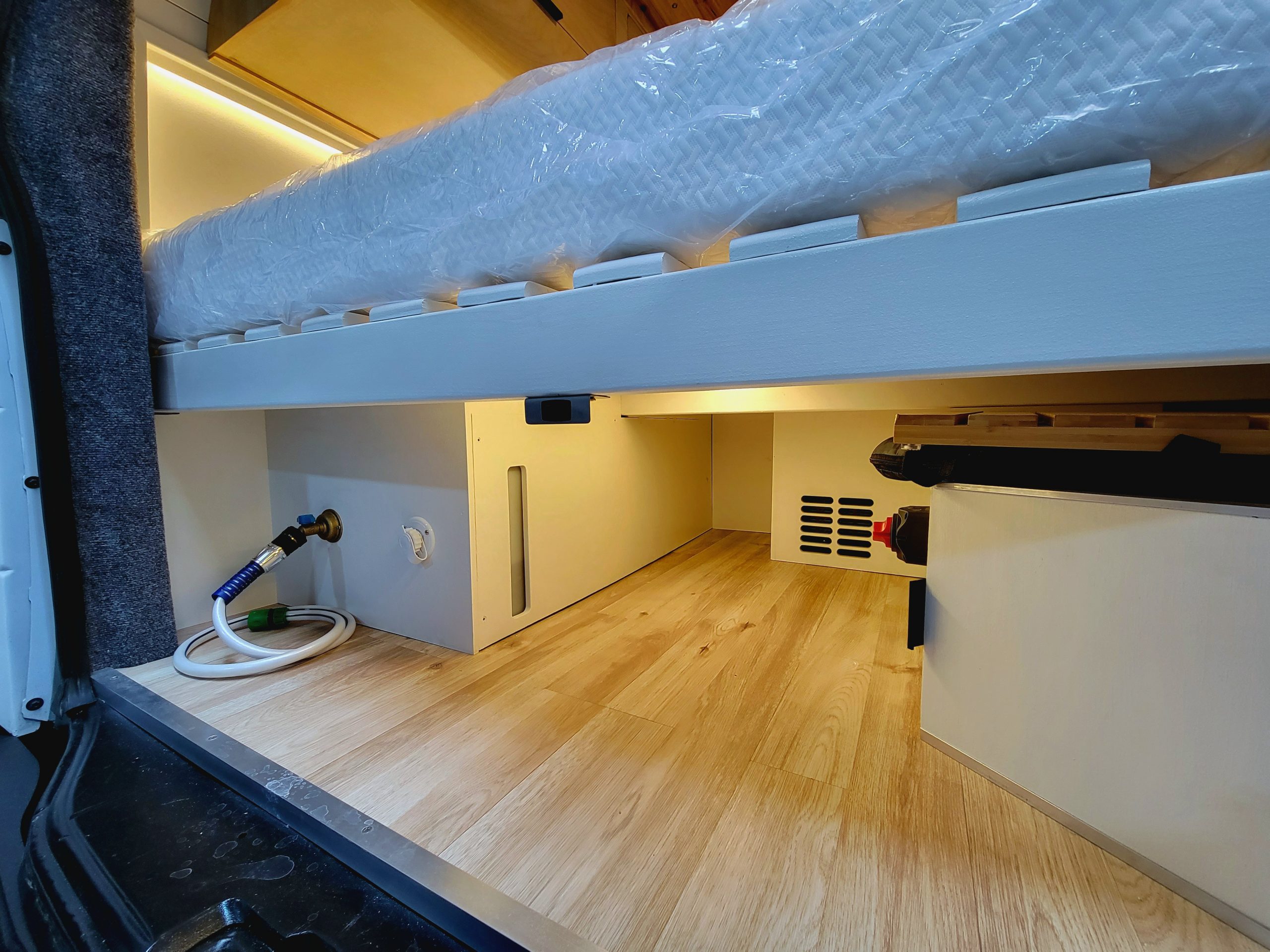

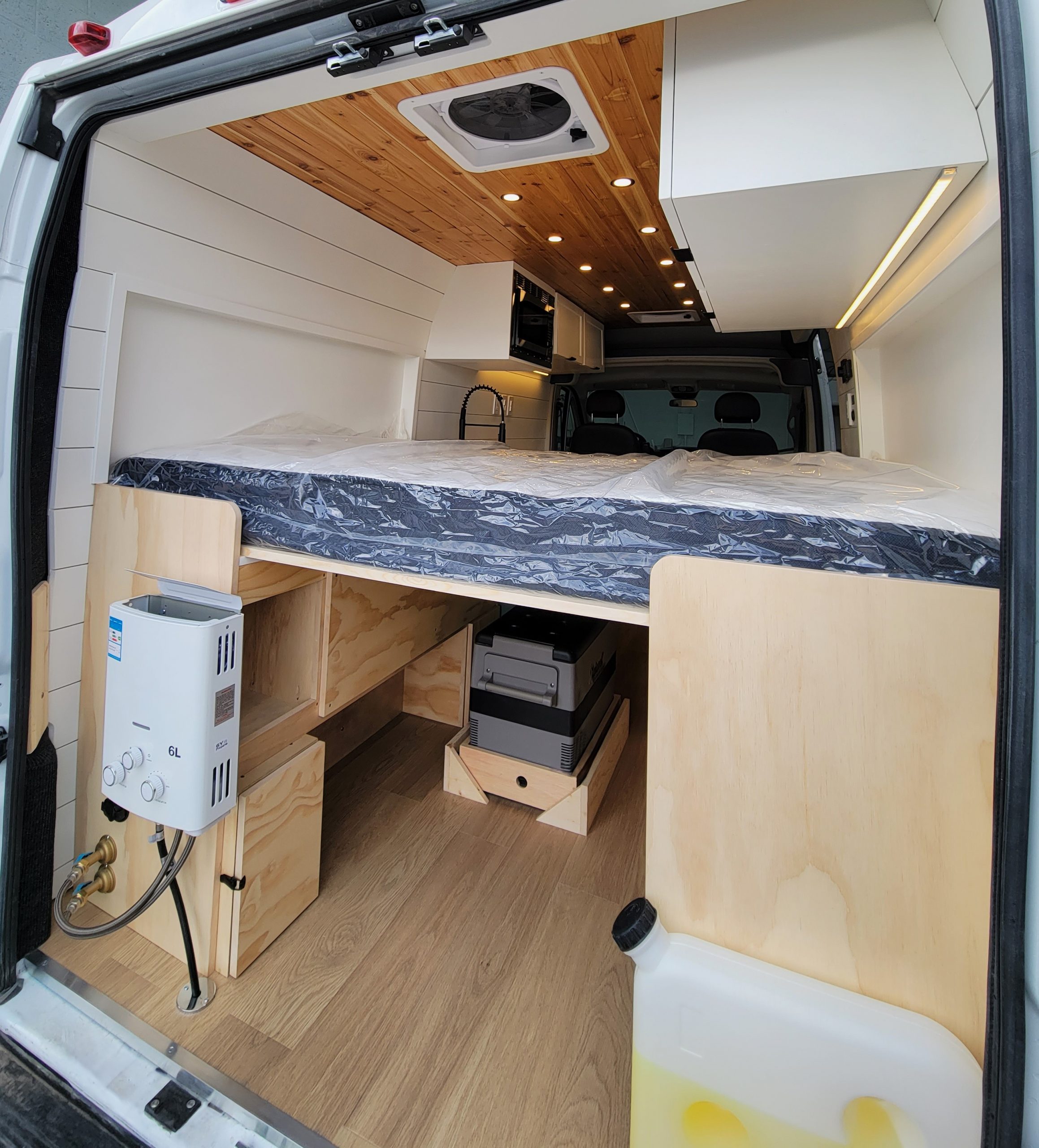

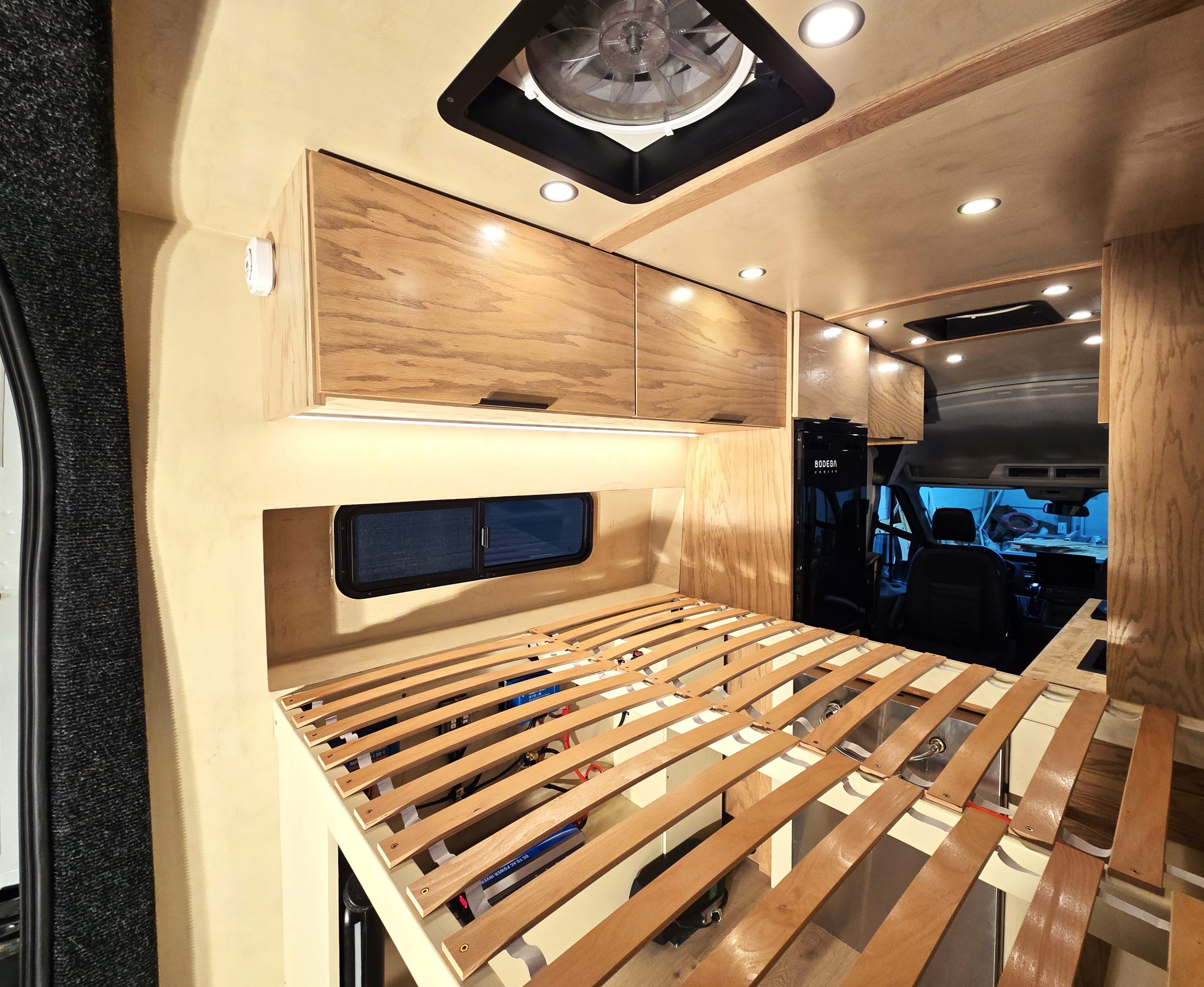

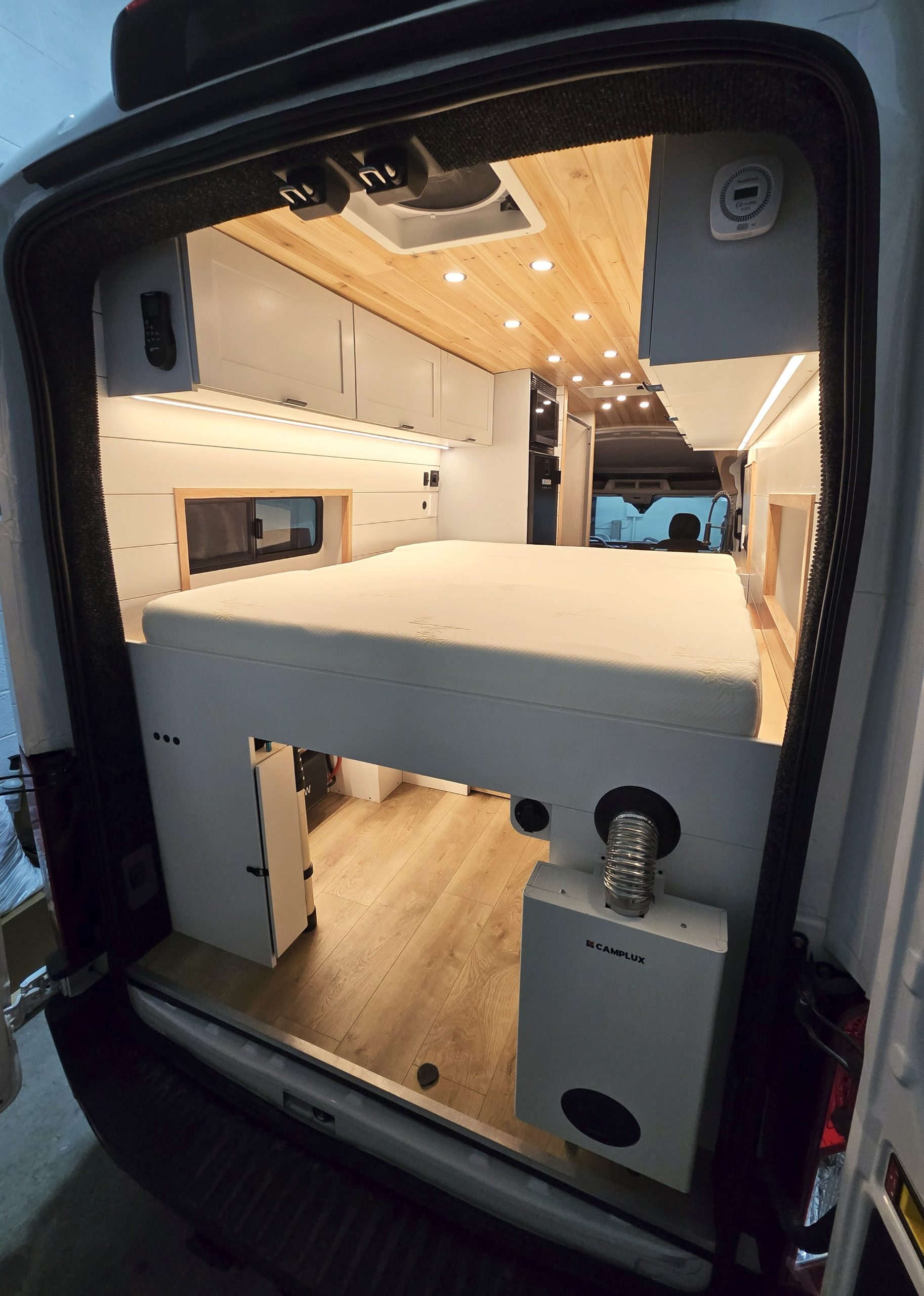

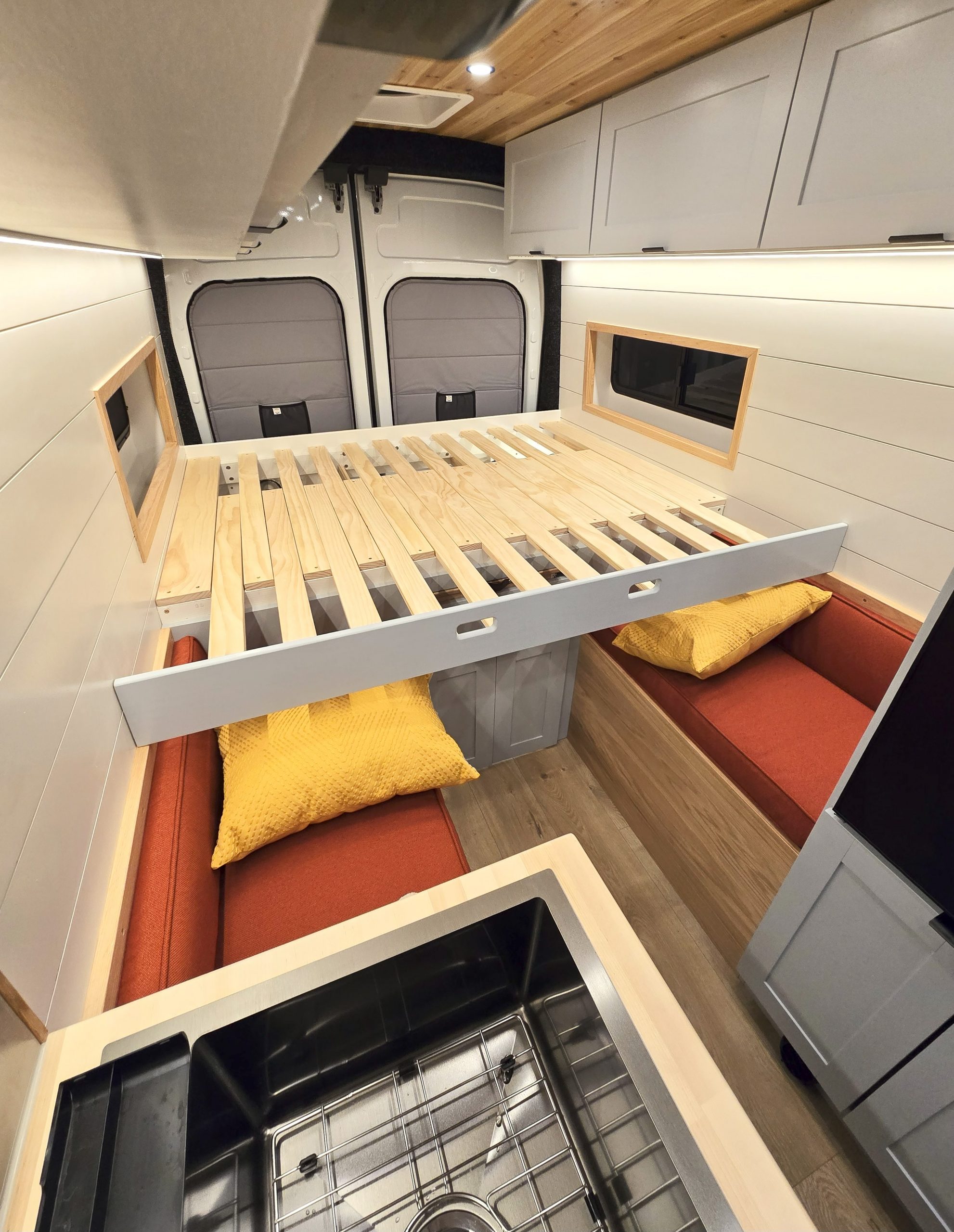

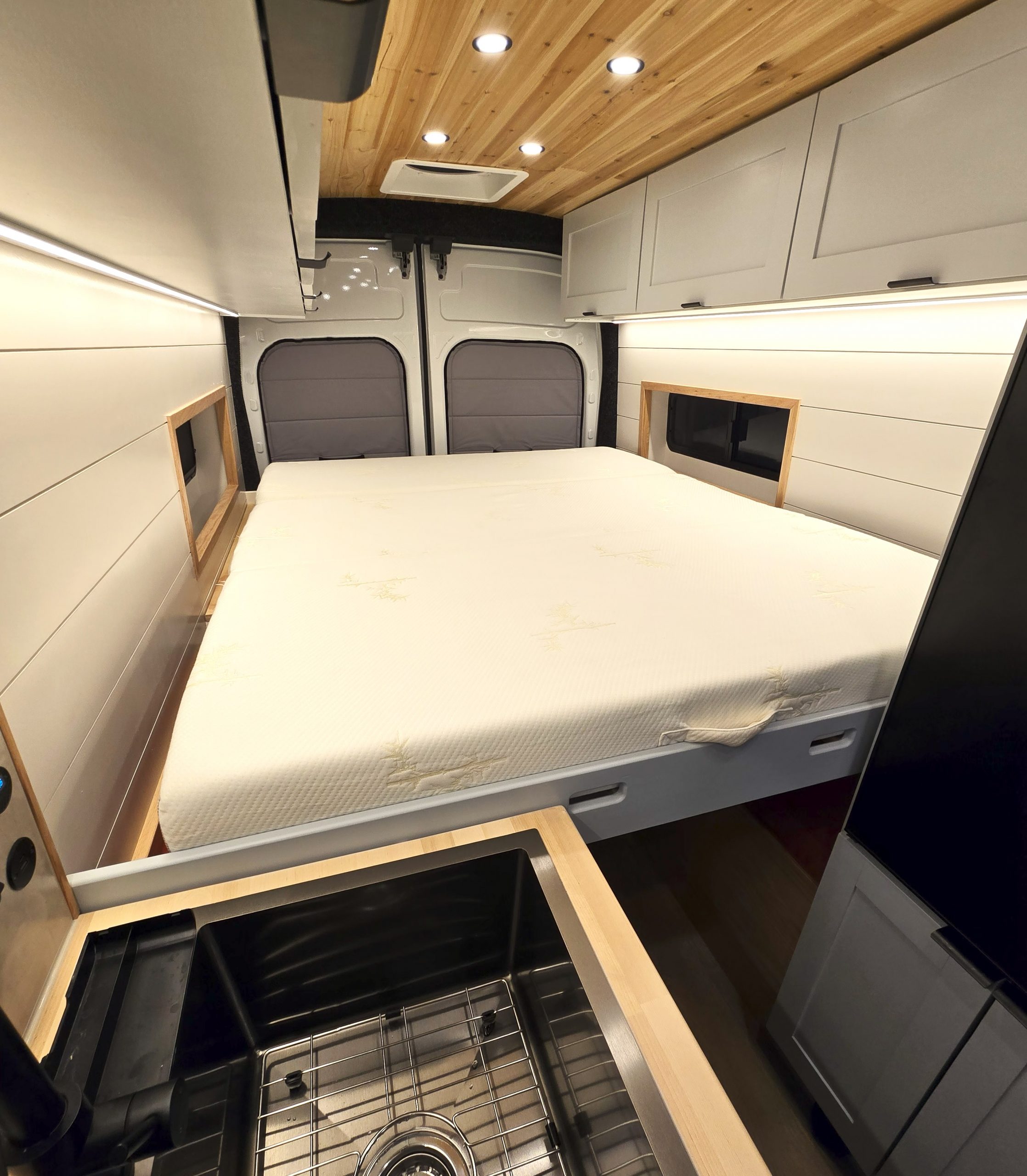

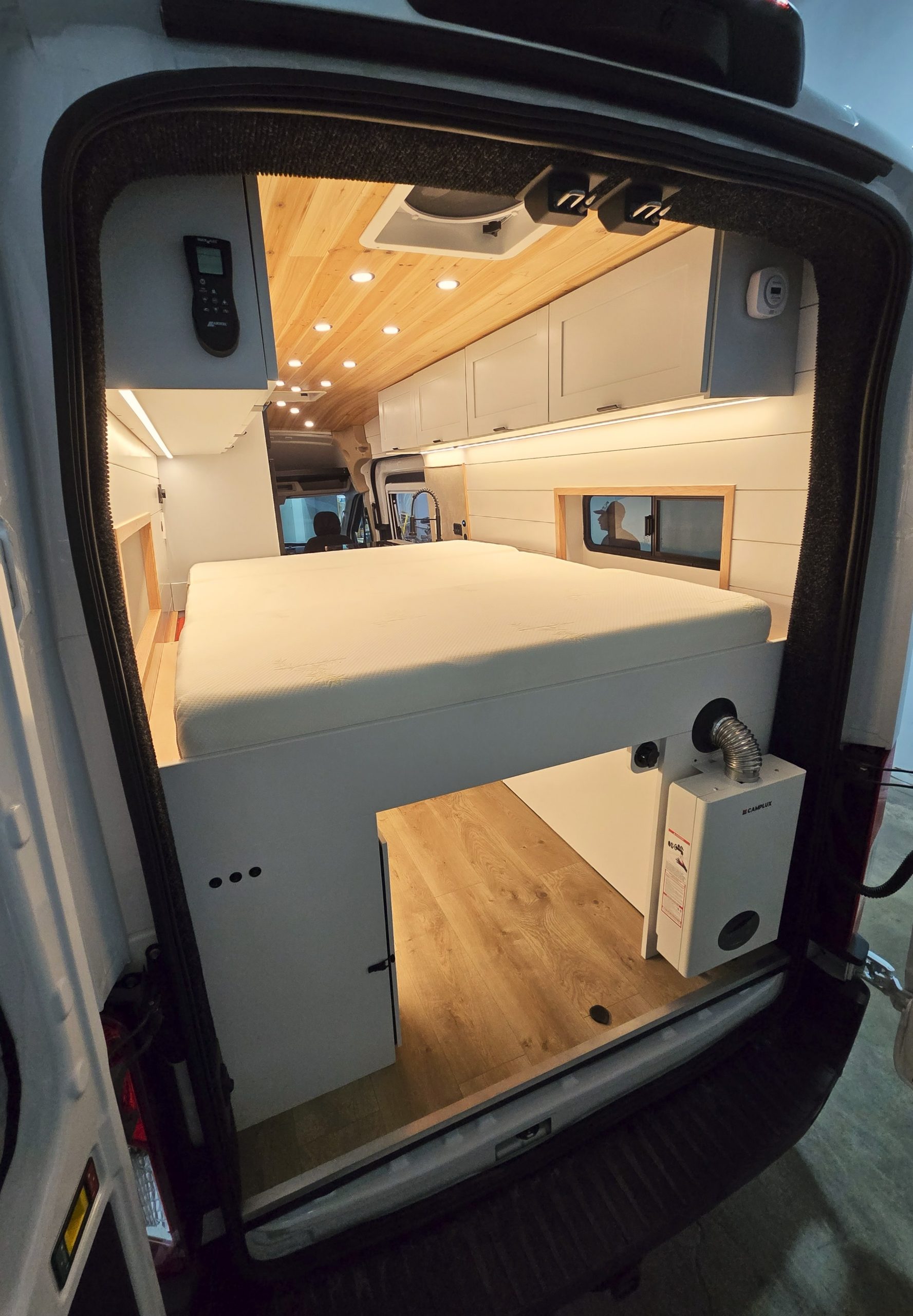

- Queen-sized trifold mattress on sliding slatted bed frame
- Custom window placement, including 20” x 11” bunk windows and NomadicArk double-pane awning window with shade and bug screen
Extras

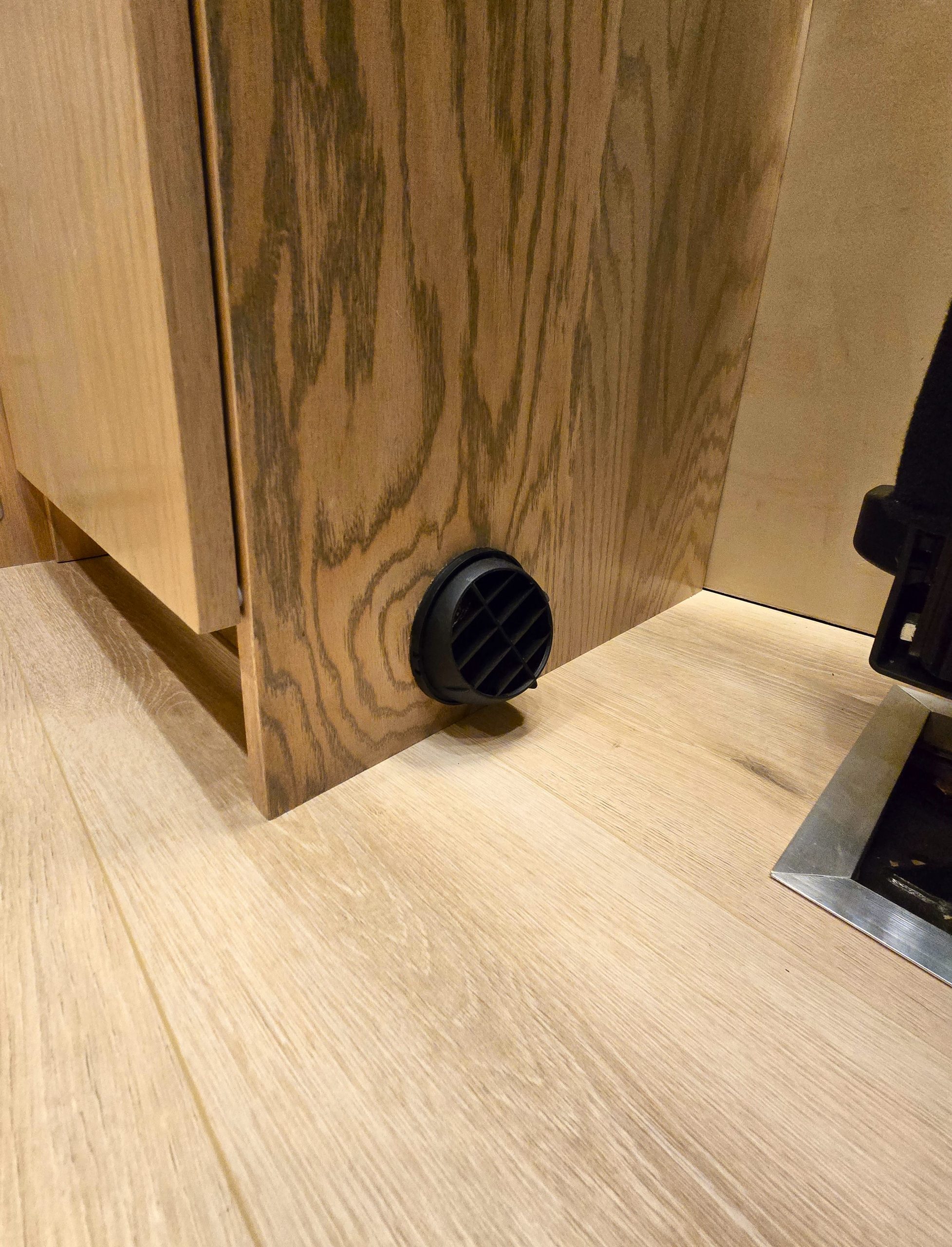

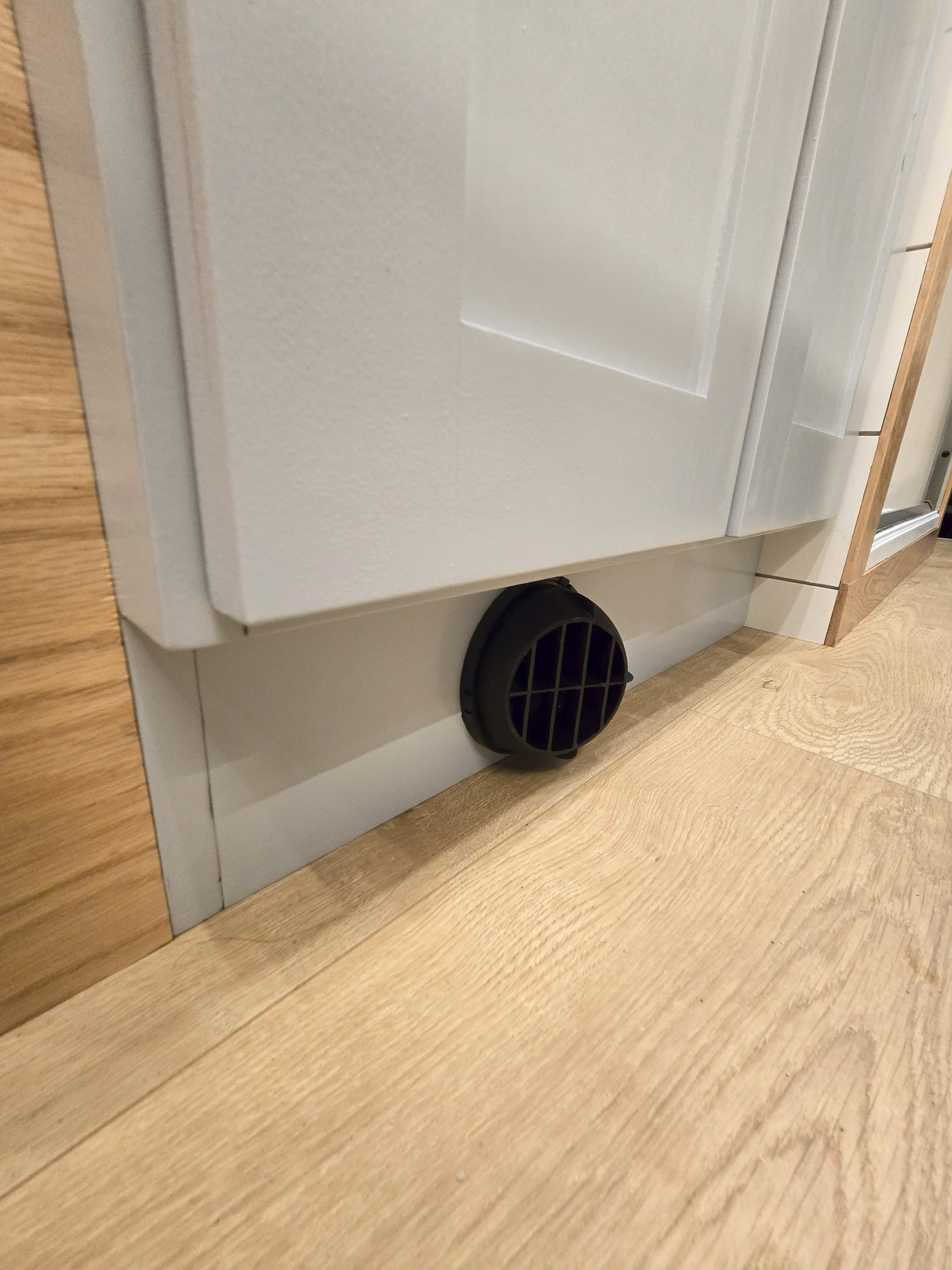

- Diesel heater with auto altitude adjustment and thermostat
- Front and rear MaxxAir 7500K ventilation fans

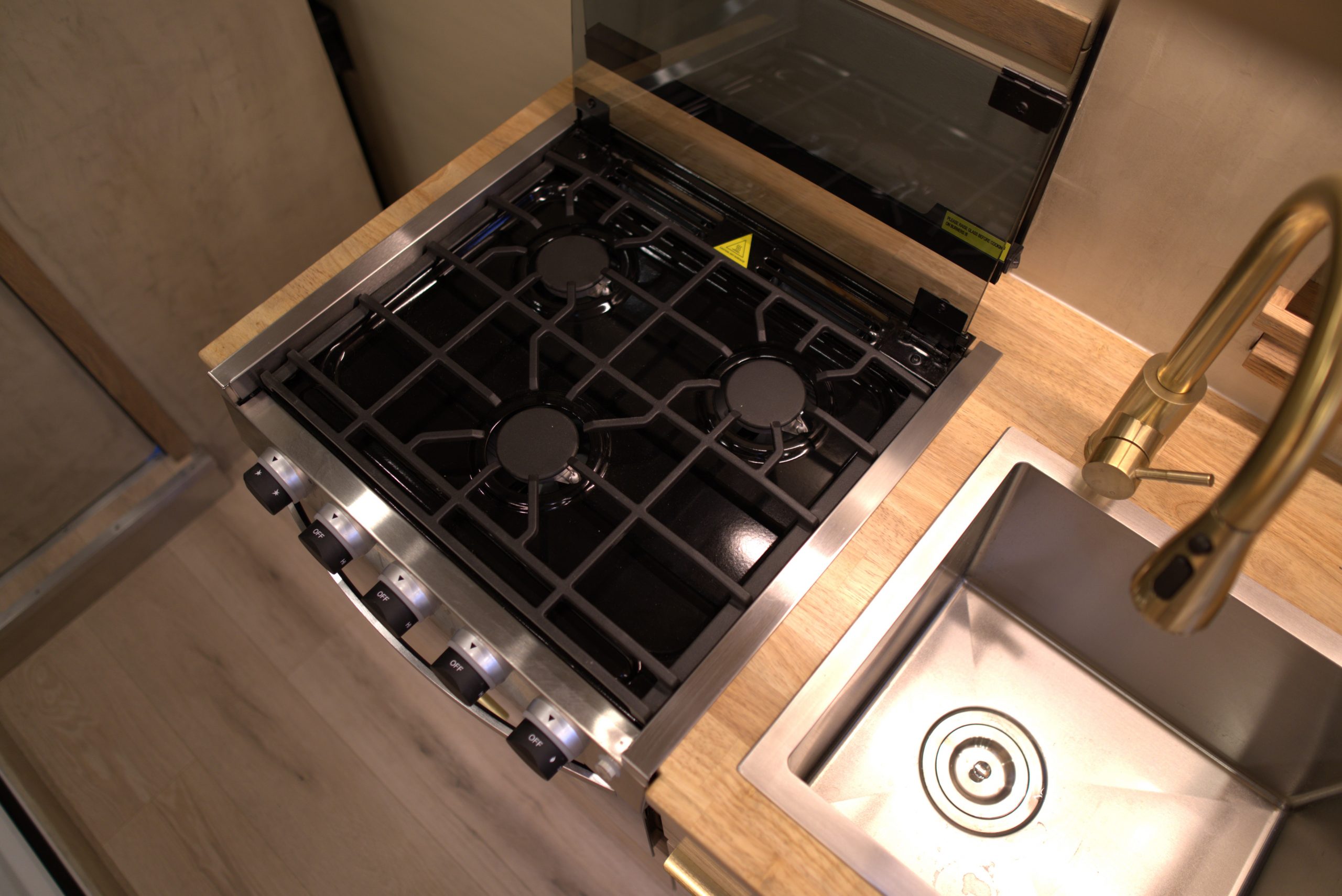

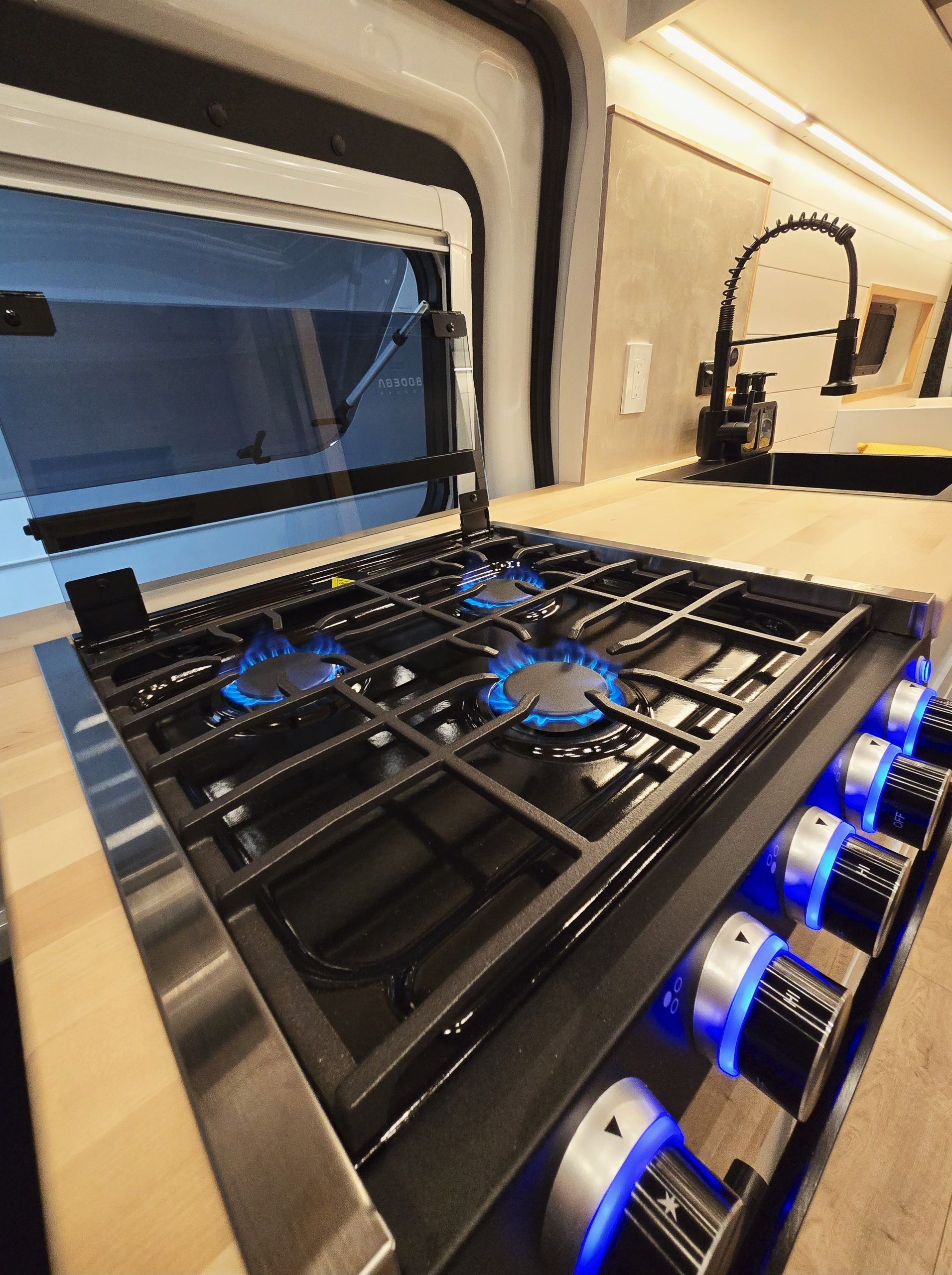

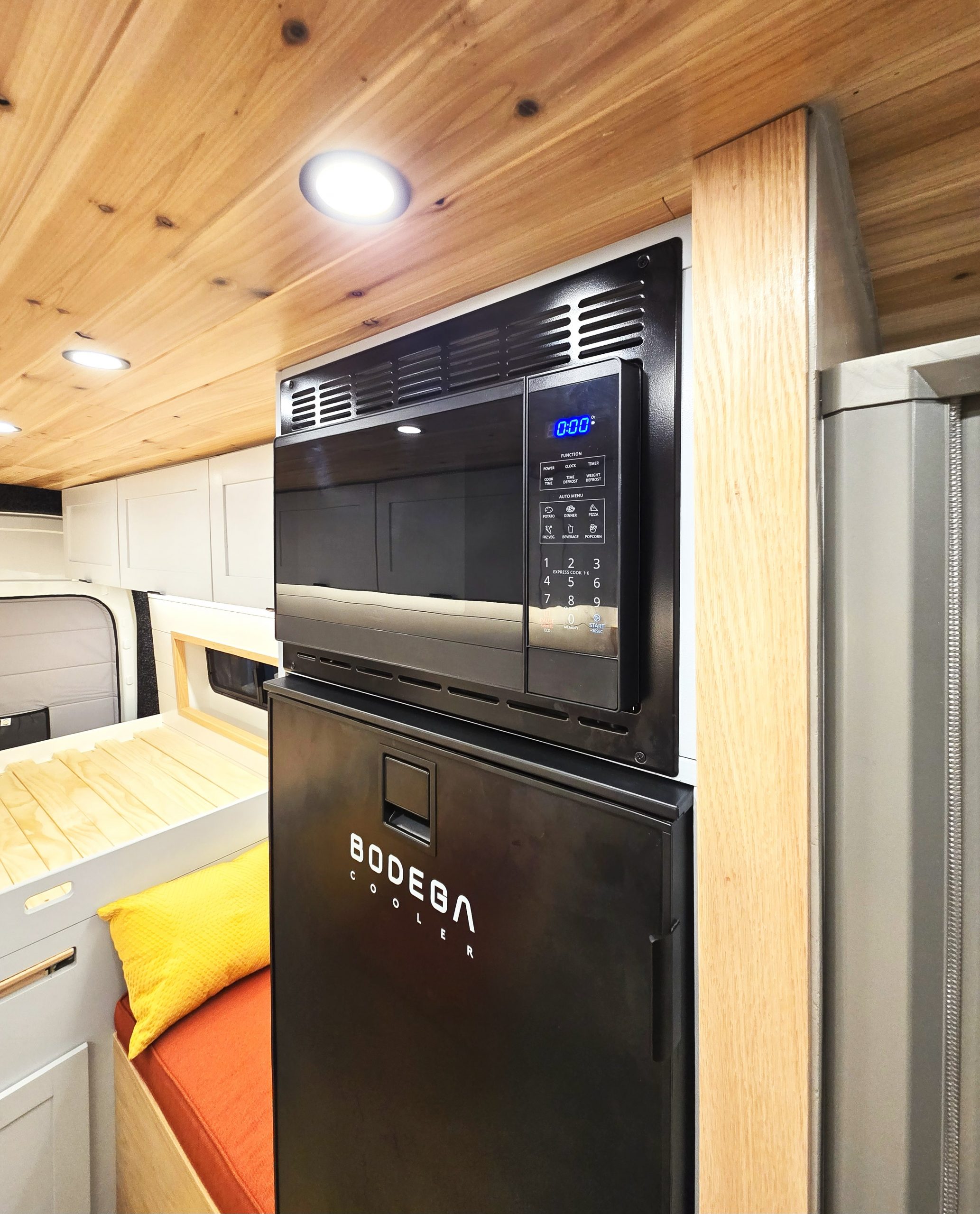

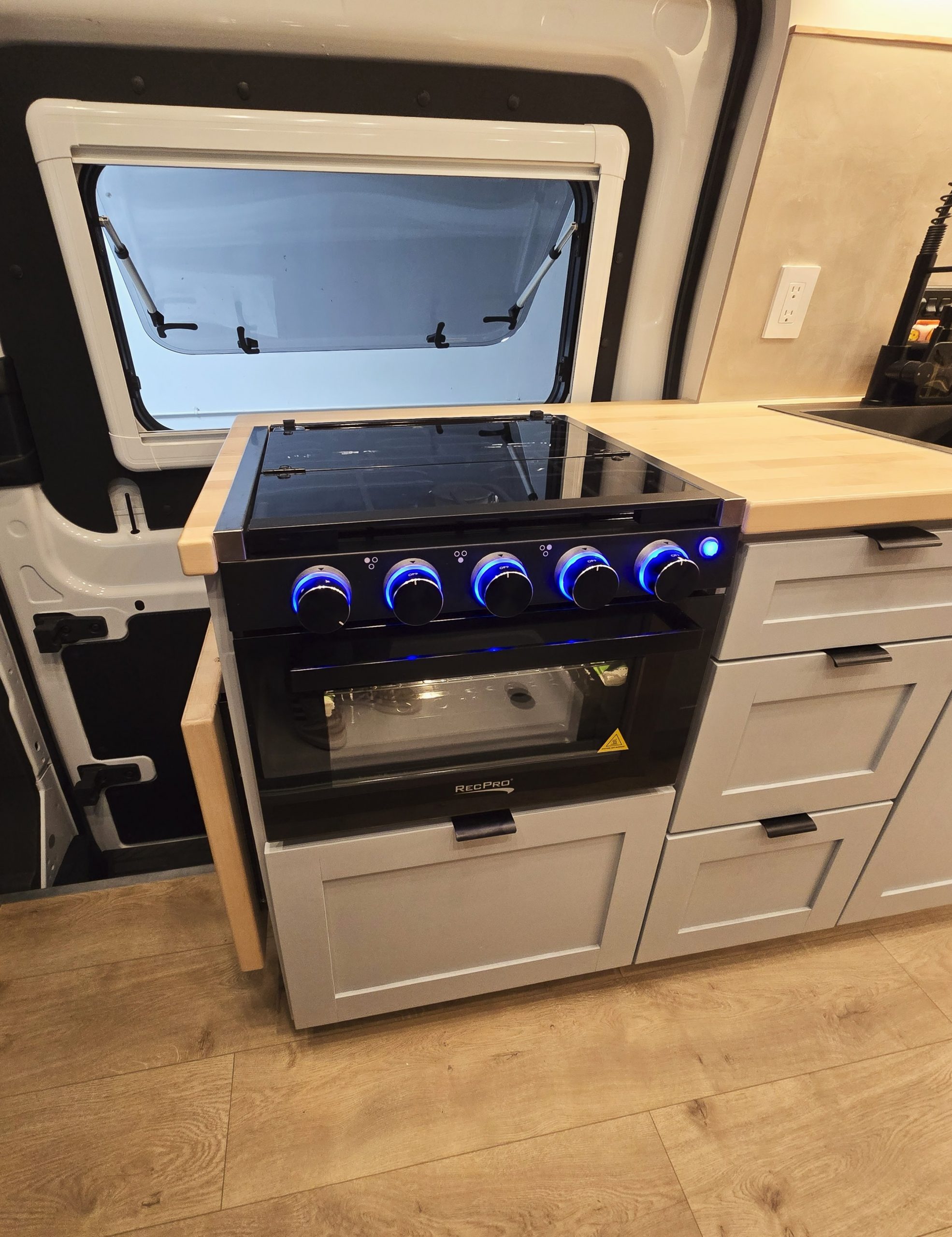

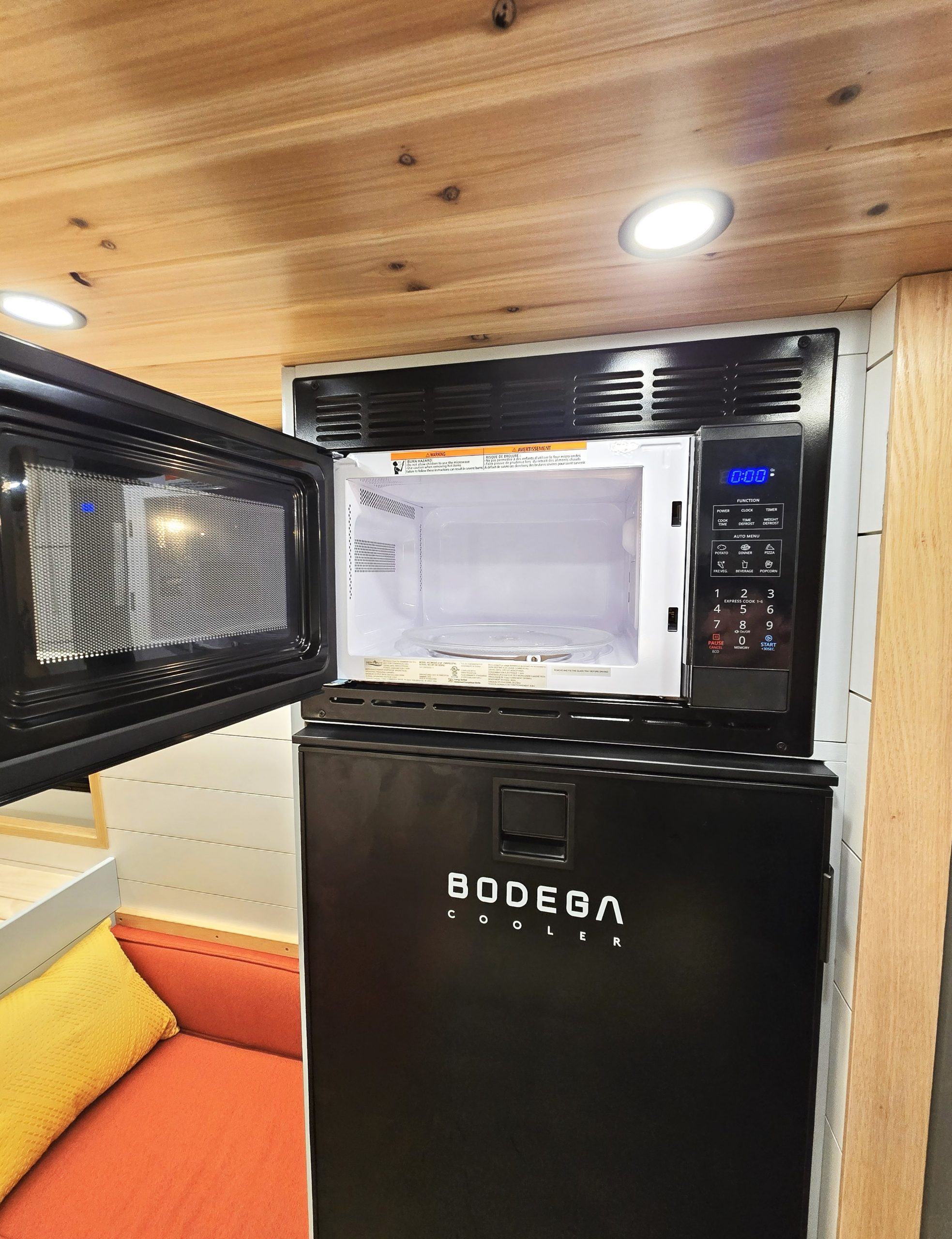

- Contoure USA stainless RV microwave and RecPro 3-burner cooktop with oven
- Starlink satellite internet
- Vanlife components headliner shelf and Wanderful headliner
- Shoe rack, storage organizers

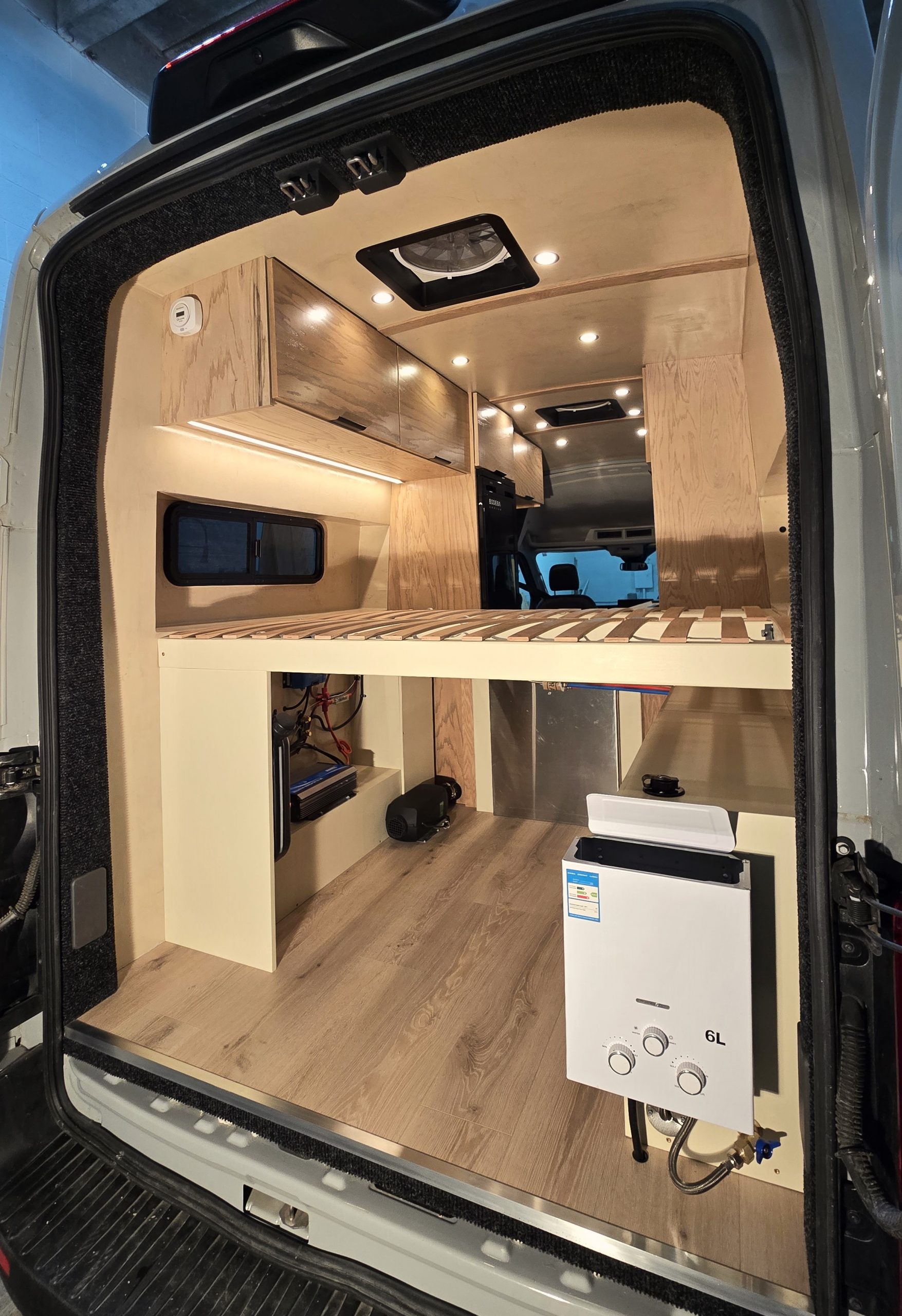

Ford Transit 001
Premium Build Materials
- Killmat sound deadening on all panels for a quiet ride
- Thinsulate and Havelock wool SM600L insulation on walls and ceiling, with additional R-value where space allows
- 1/2” polyiso underfloor insulation, 3/4” subfloor, and 3/4” glued and screwed framing
- Waterproof laminate flooring
- Microcement walls and ceiling with oak trim
Electrical System
- 400Ah lithium battery bank (4 x 200Ah Renogy batteries)
- Renogy 40A DC-DC charger and 100V/30A MPPT solar controller
- 500W solar array on the roof
- 2000W inverter with DC fuse and breaker panel
- 12V and 120V outlets, including USB and USB-C ports
- Dimmable LED puck lights throughout
- Victron shunt and power supply monitor
Plumbing
- PEX piping with crimp fittings
- 30-gallon fresh water tank with two-stage filter
- Water pump with switch control, low-point drain, and winterizing bypass valve
- LPG water heater
- 16-gallon under-mount grey tank with heater pad and electric emptying valve
- 2.5lb LPG Tank

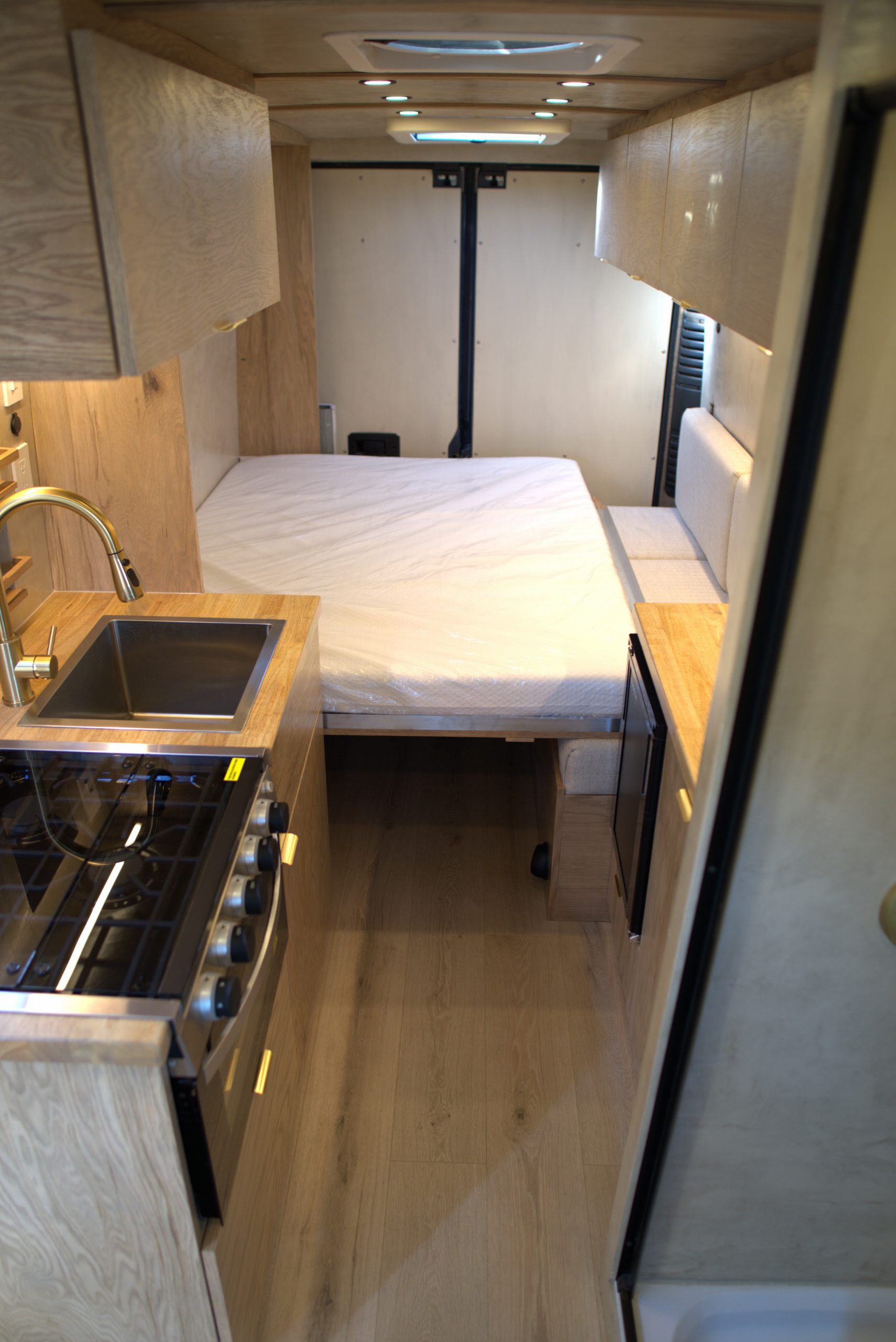

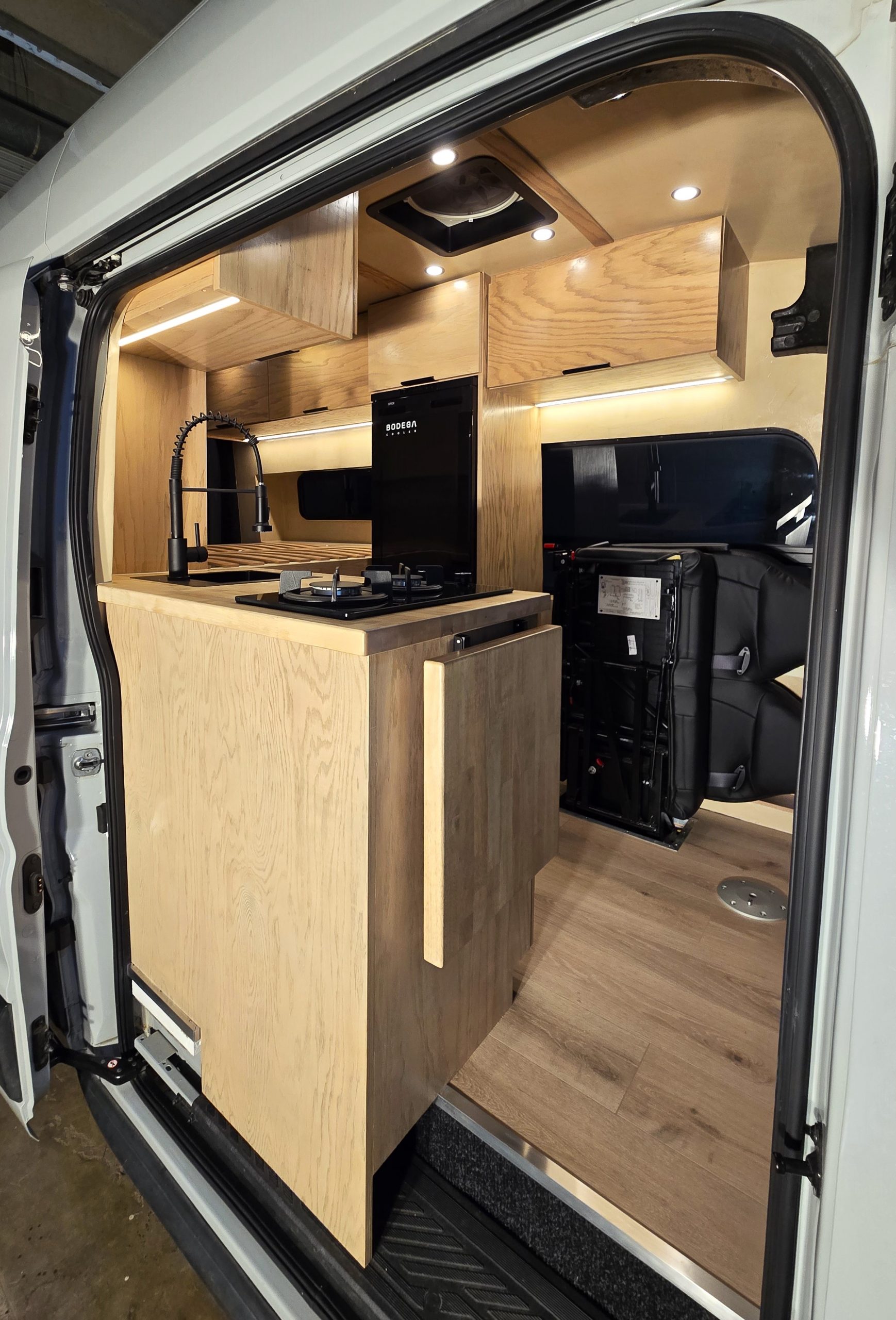

Layout

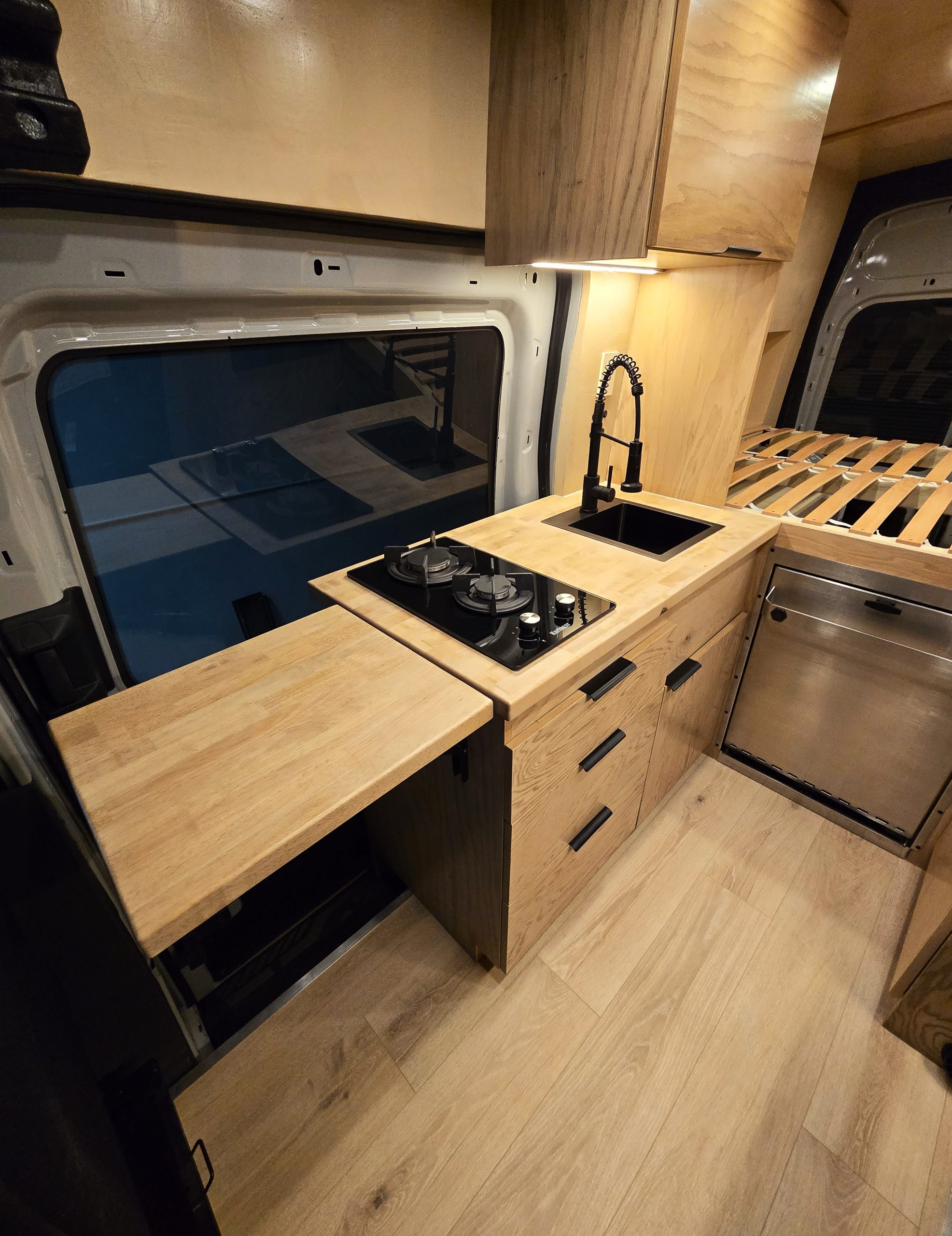

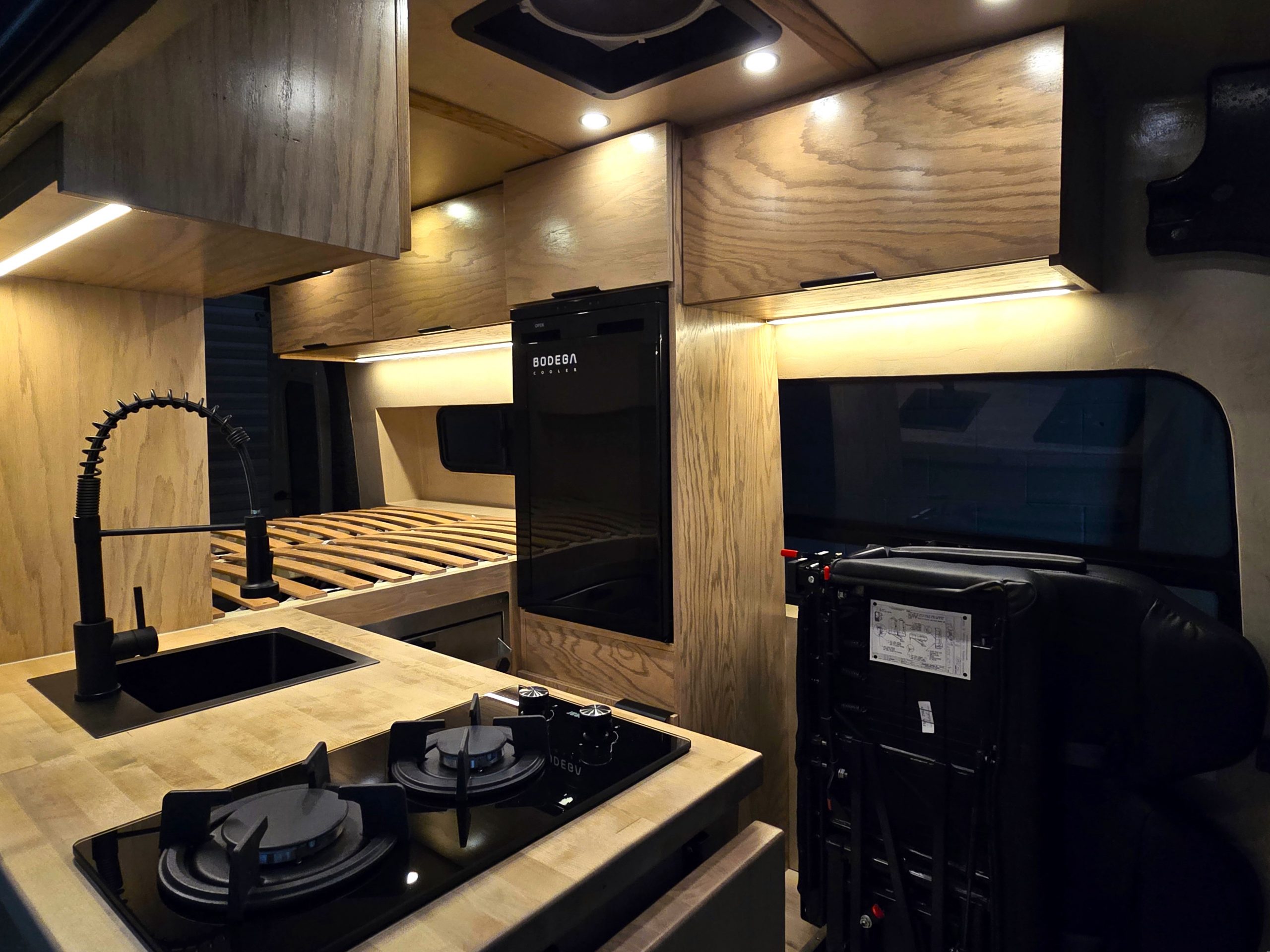

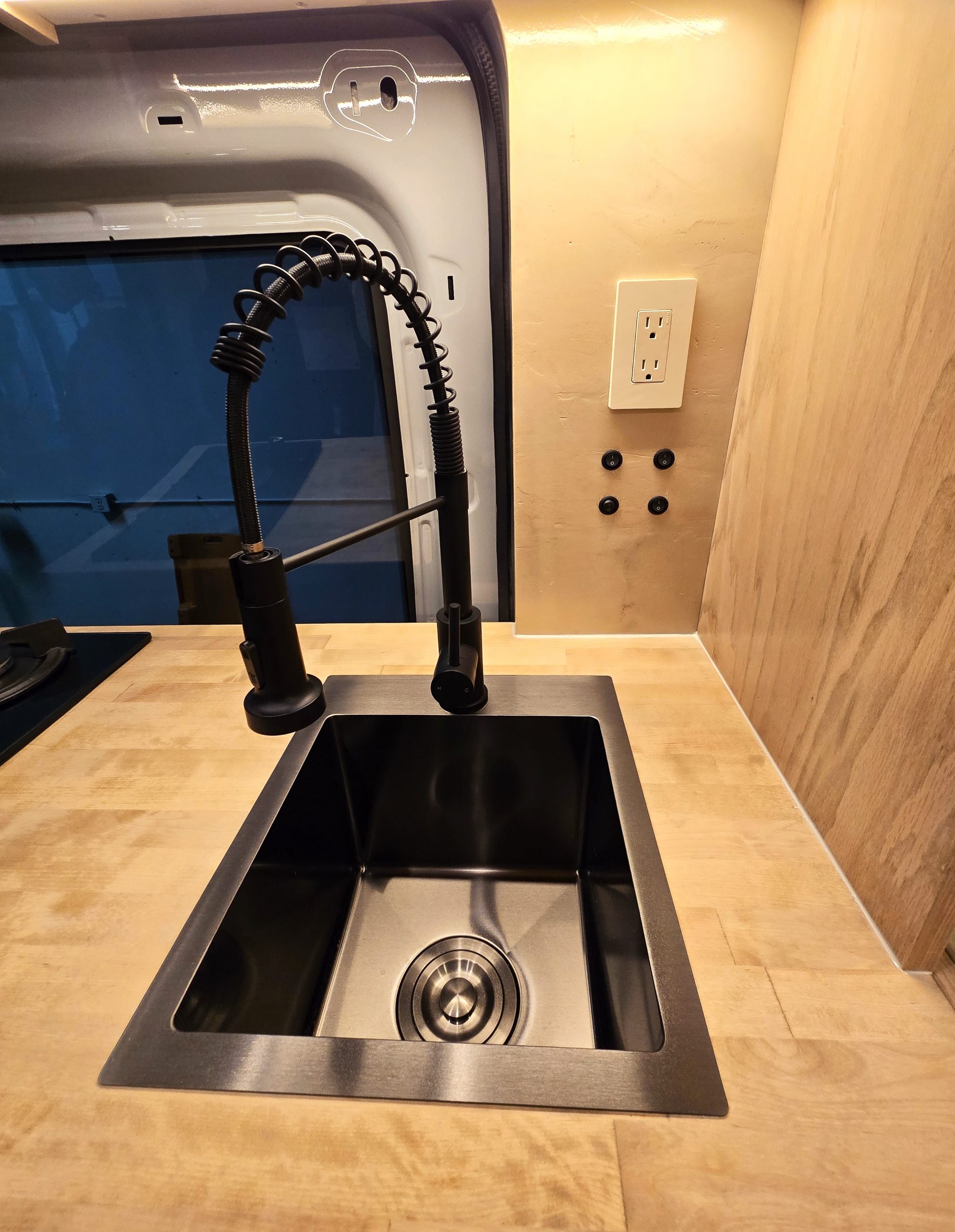

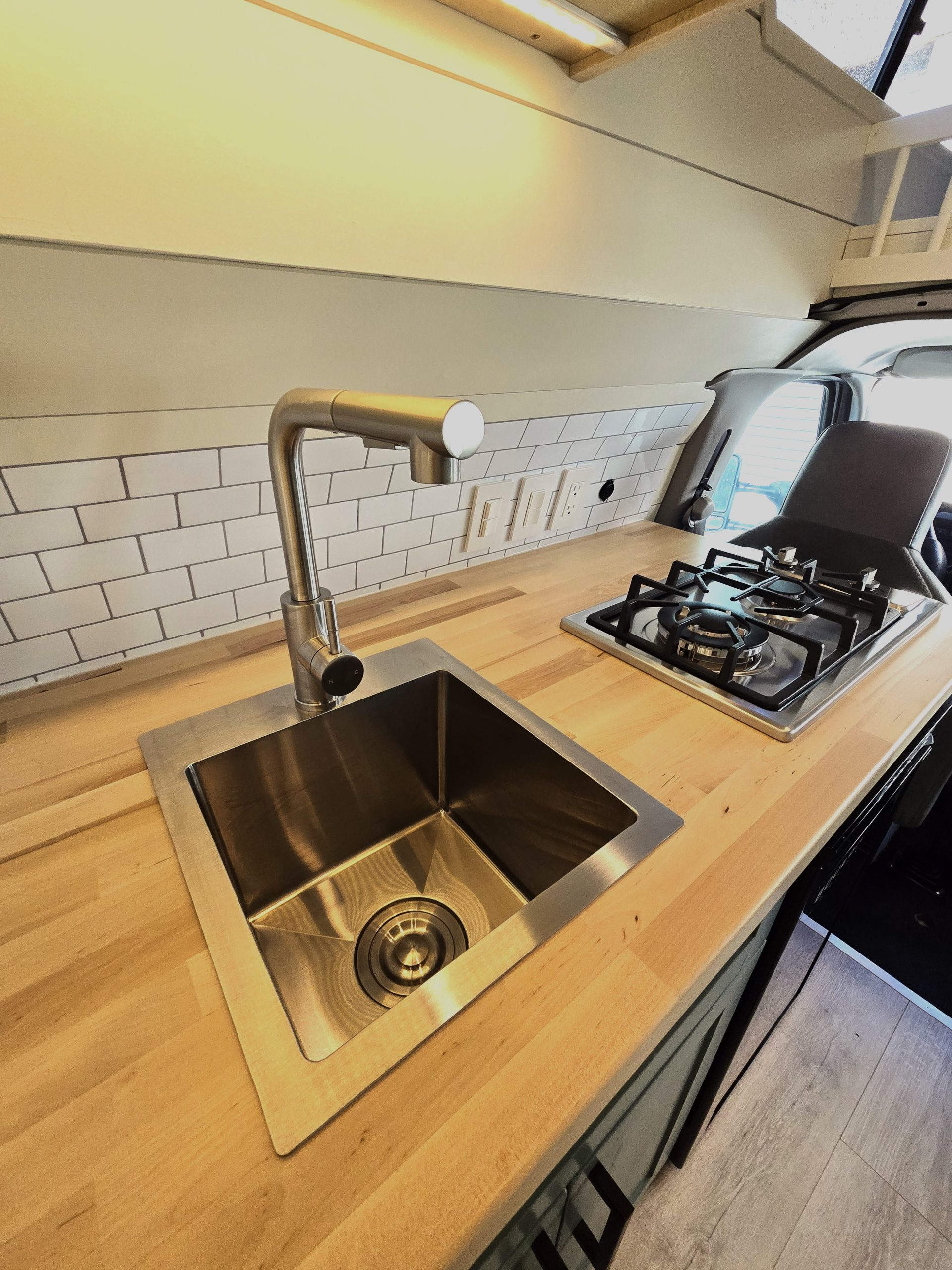

- Butcher block countertop with stainless steel sink and optional water filter

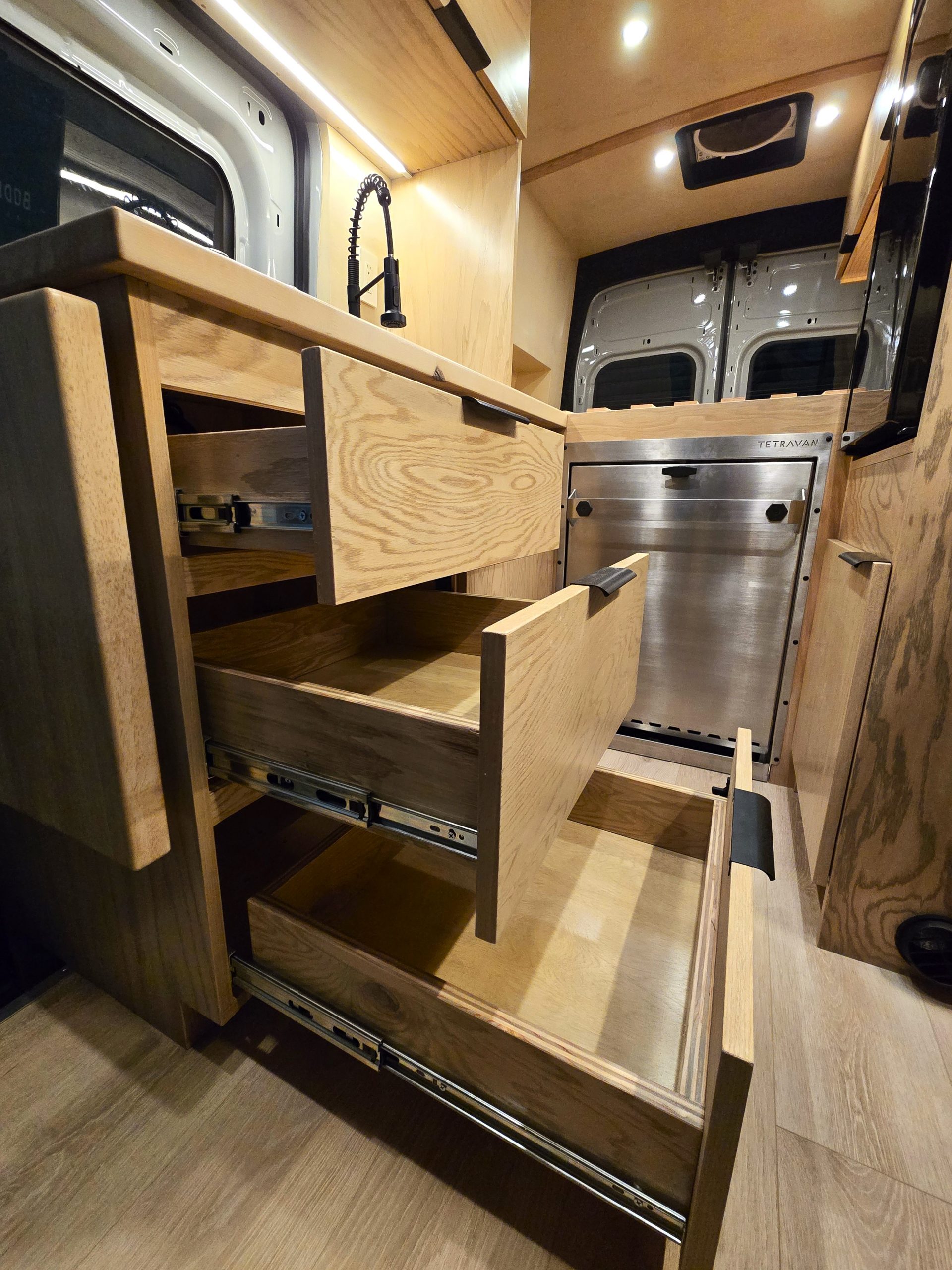

- Base cabinets with deep drawers and ample under-sink storage

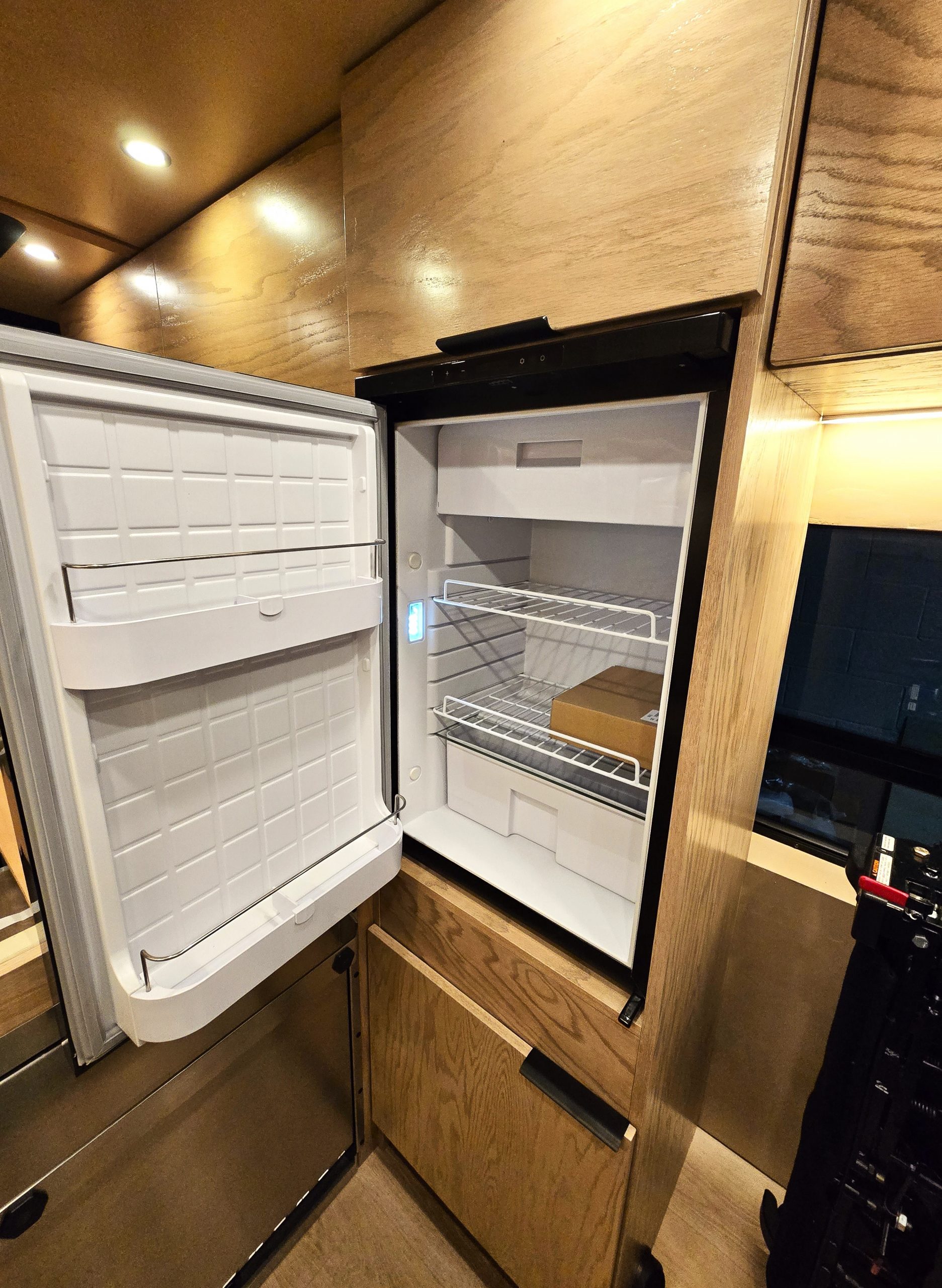

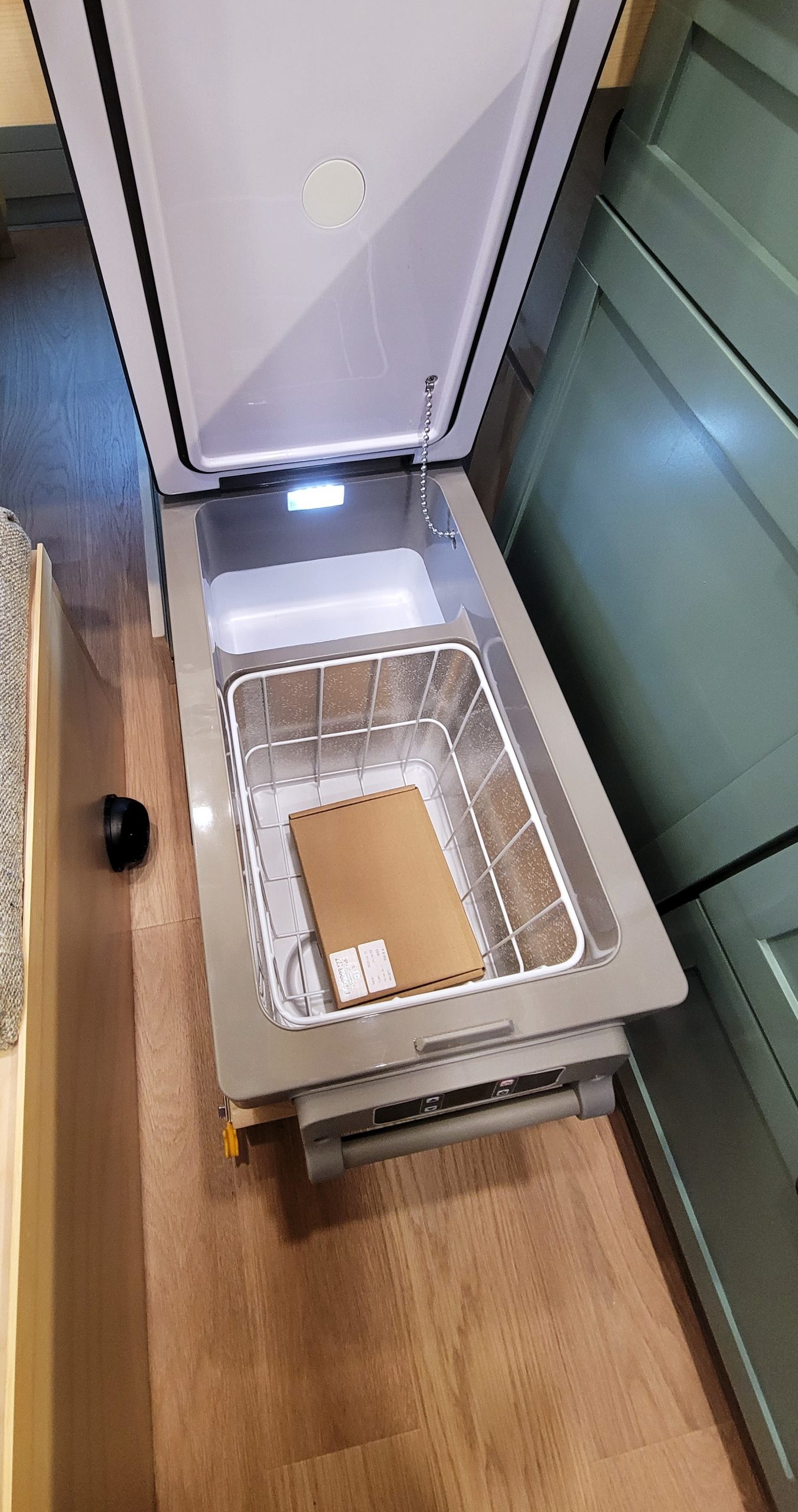

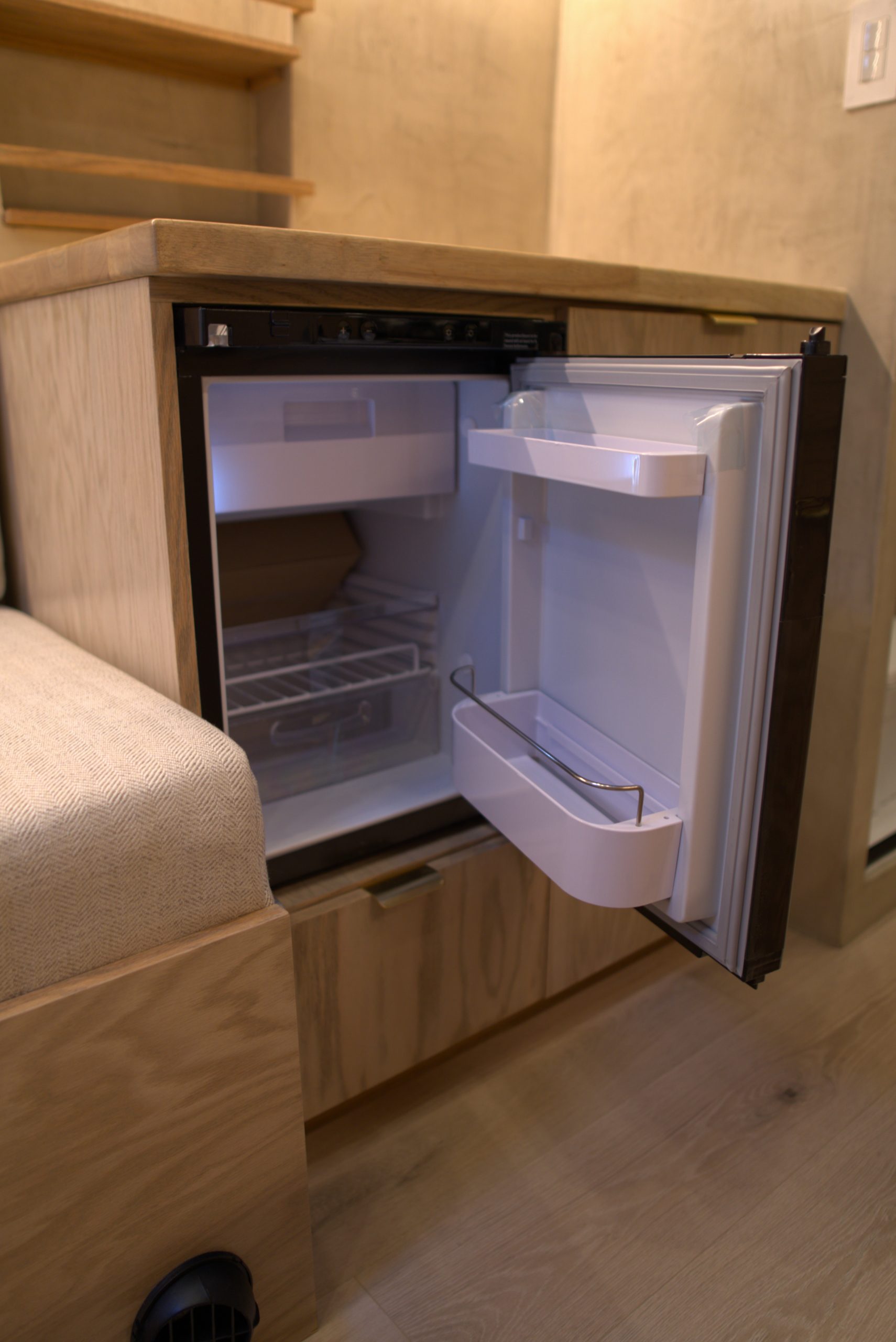

- 83L fridge with freezer compartment
- Upper cabinets for additional storage

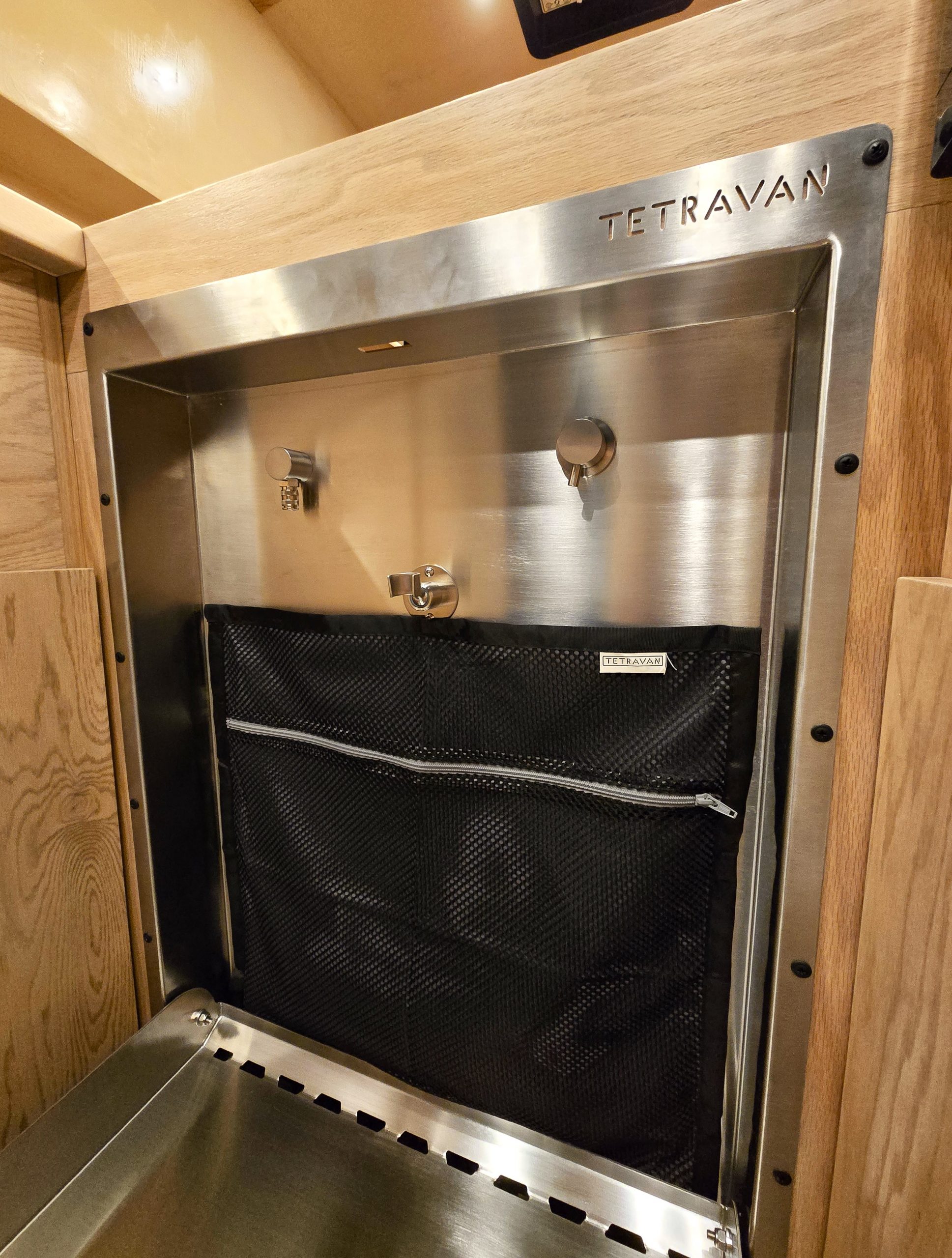

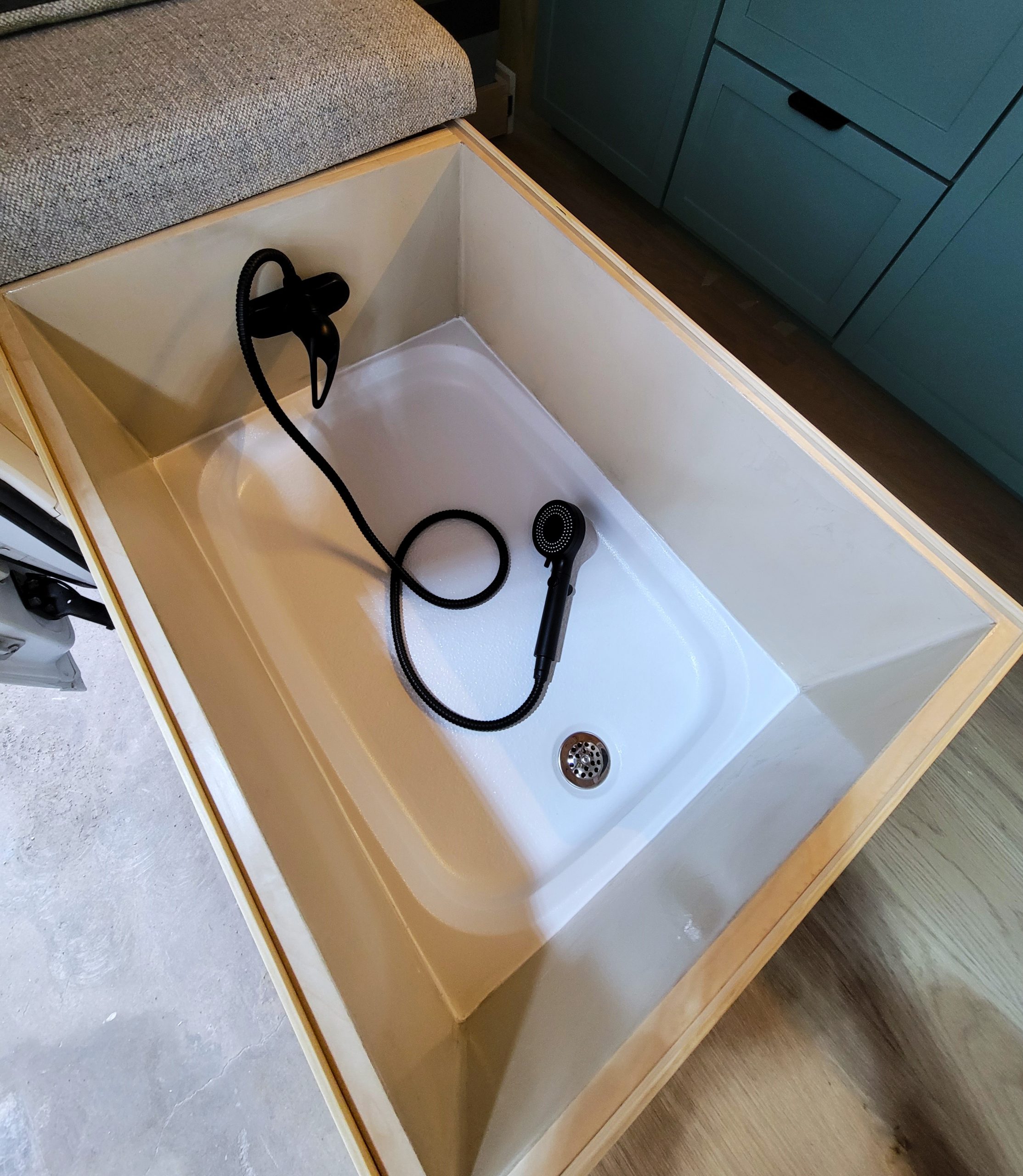

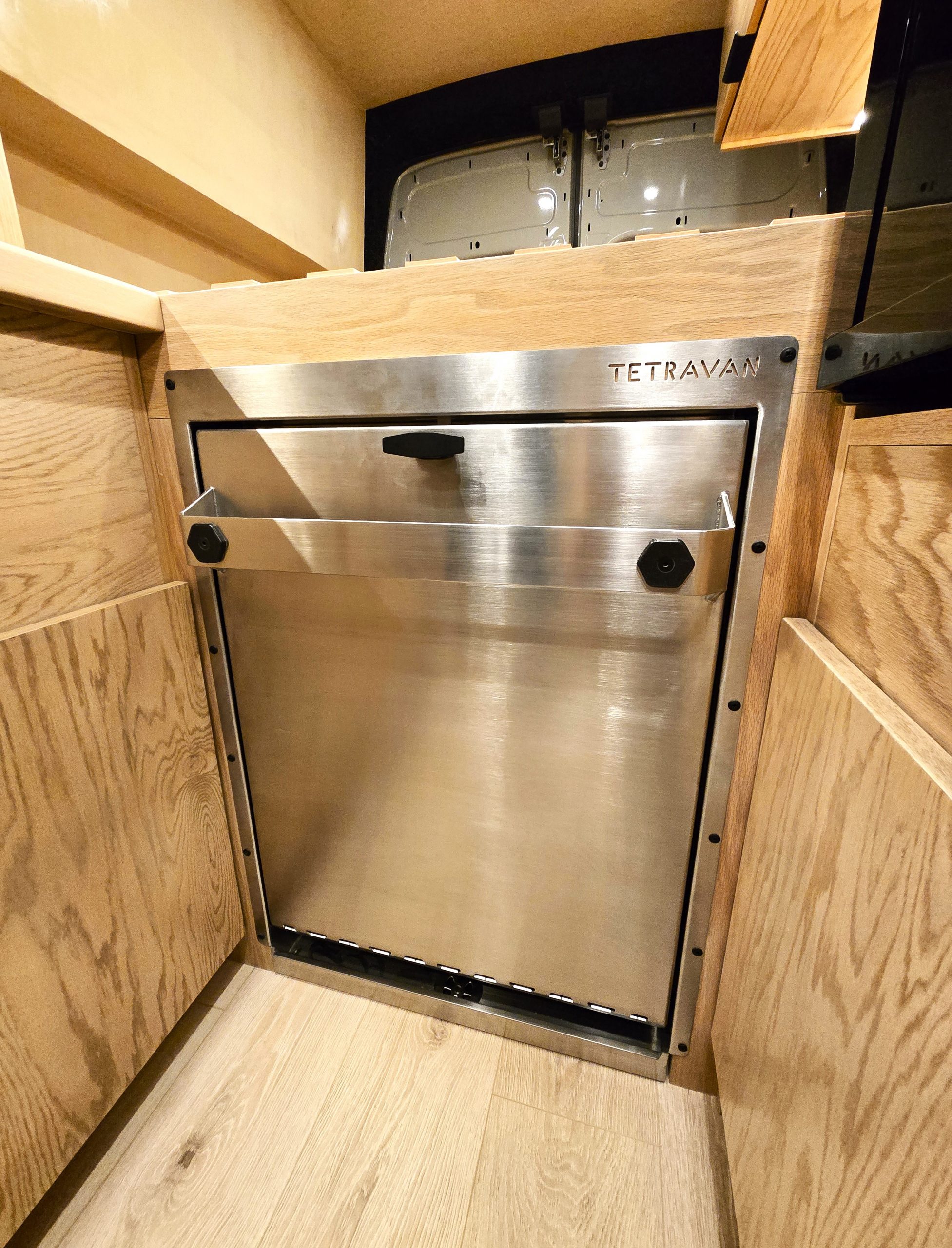

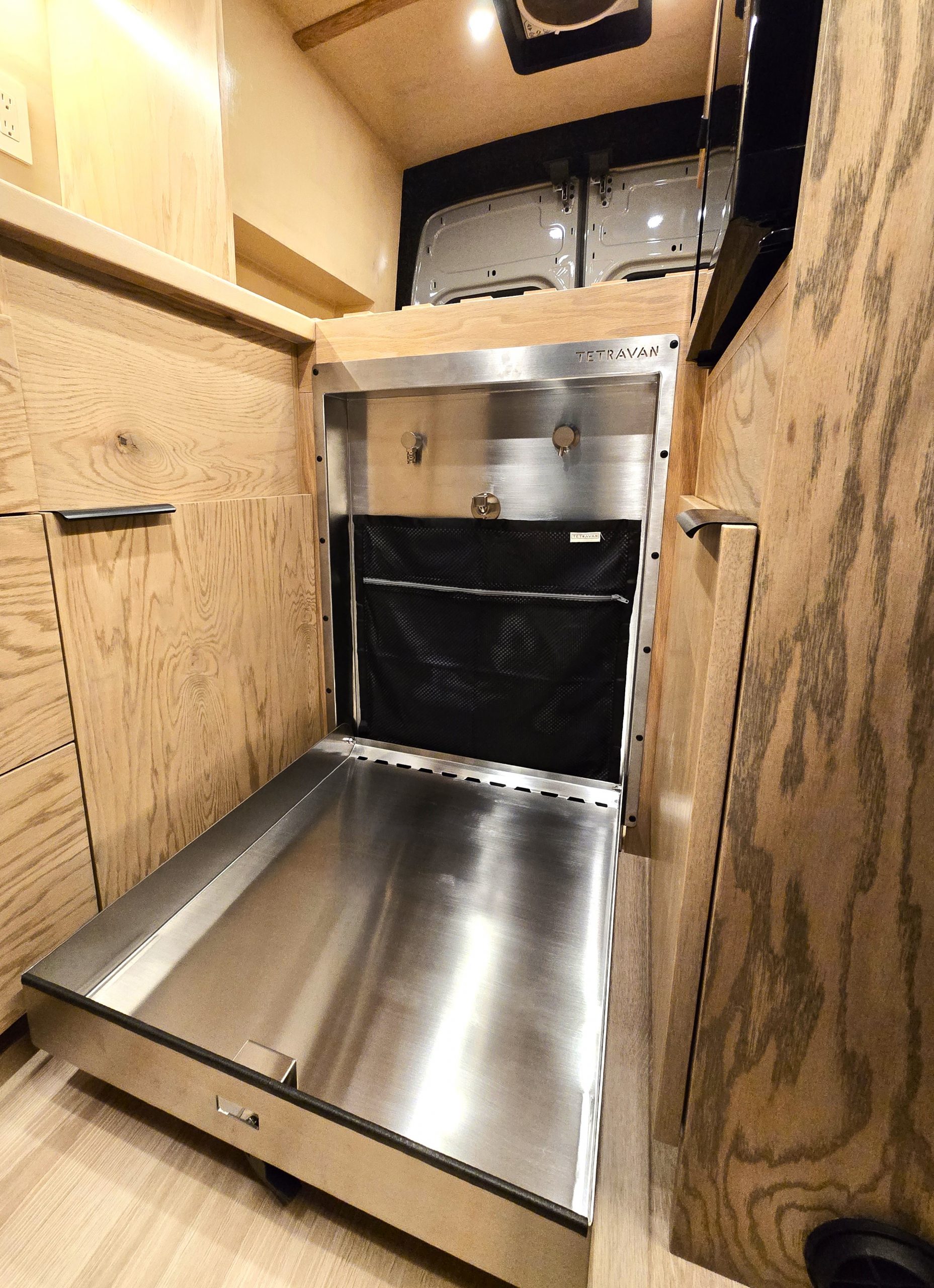

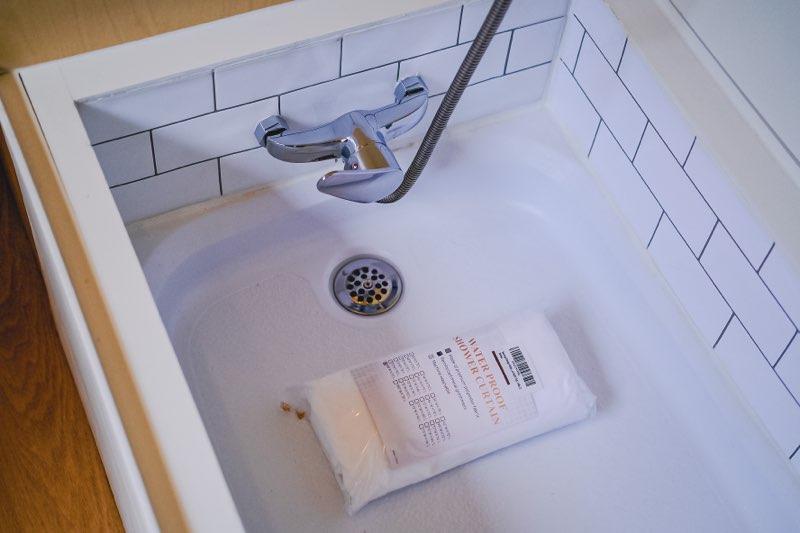

- Tetravan foldable stainless steel shower

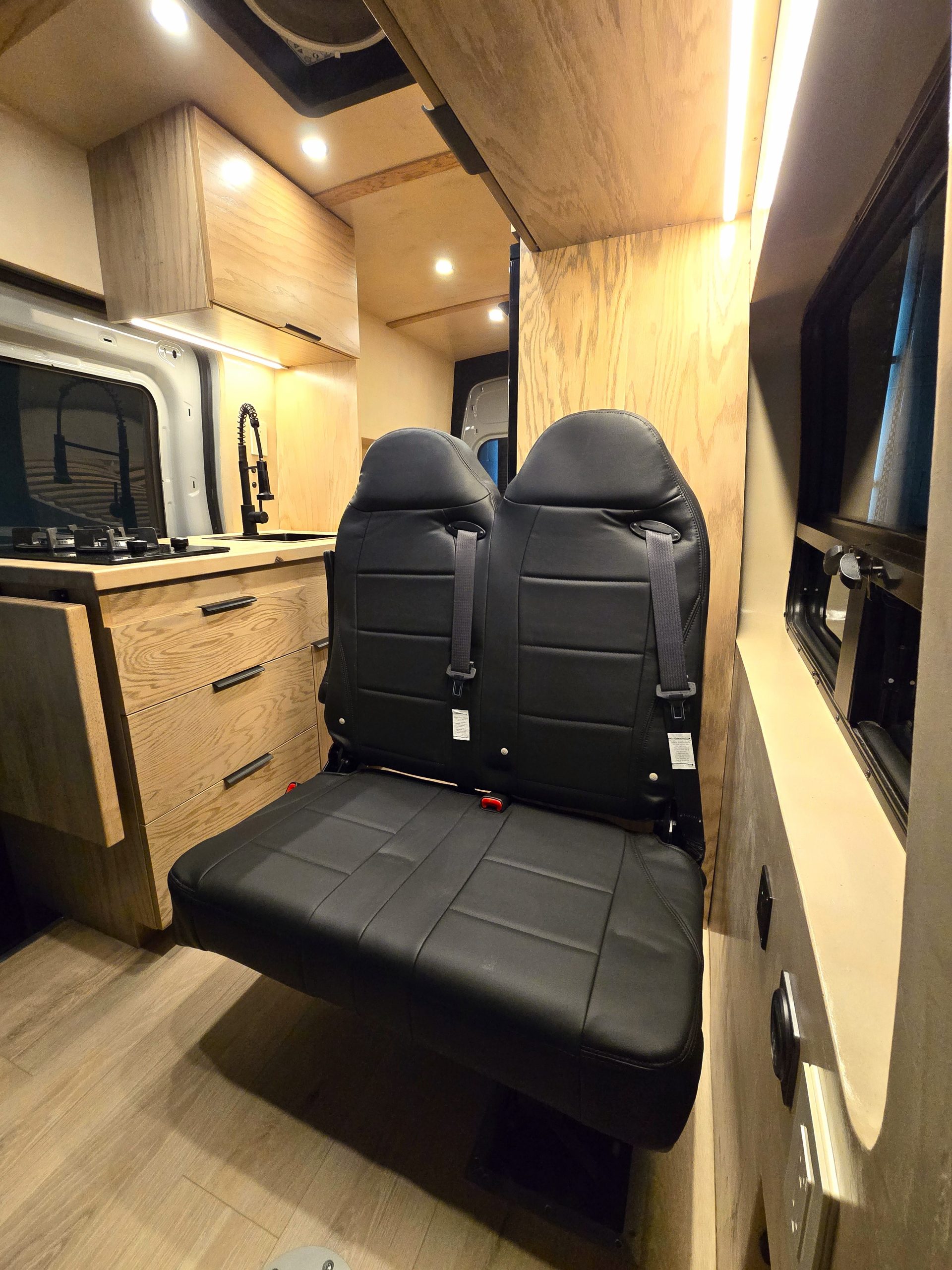

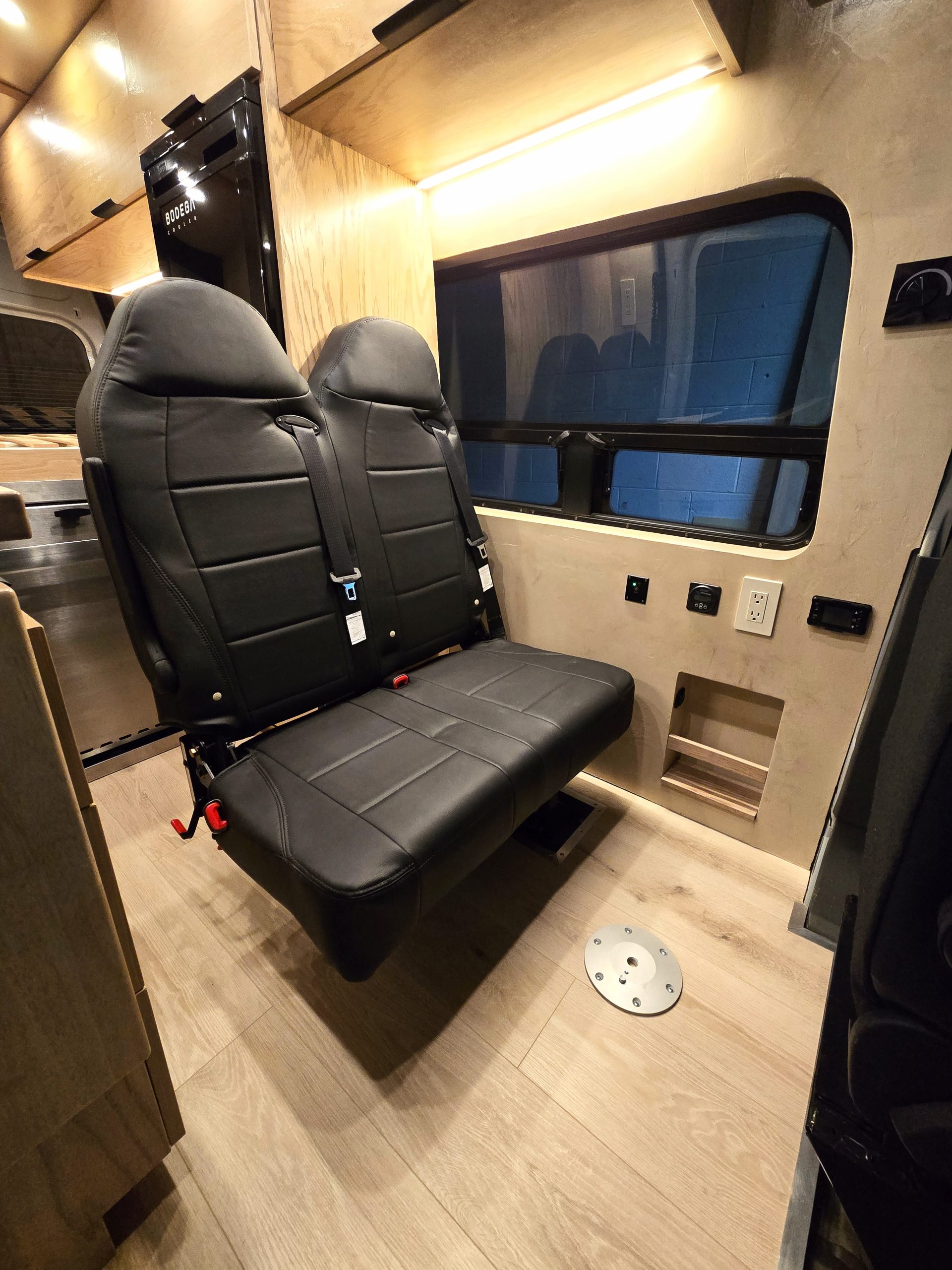

- Alpine Van Works foldaway bench seat

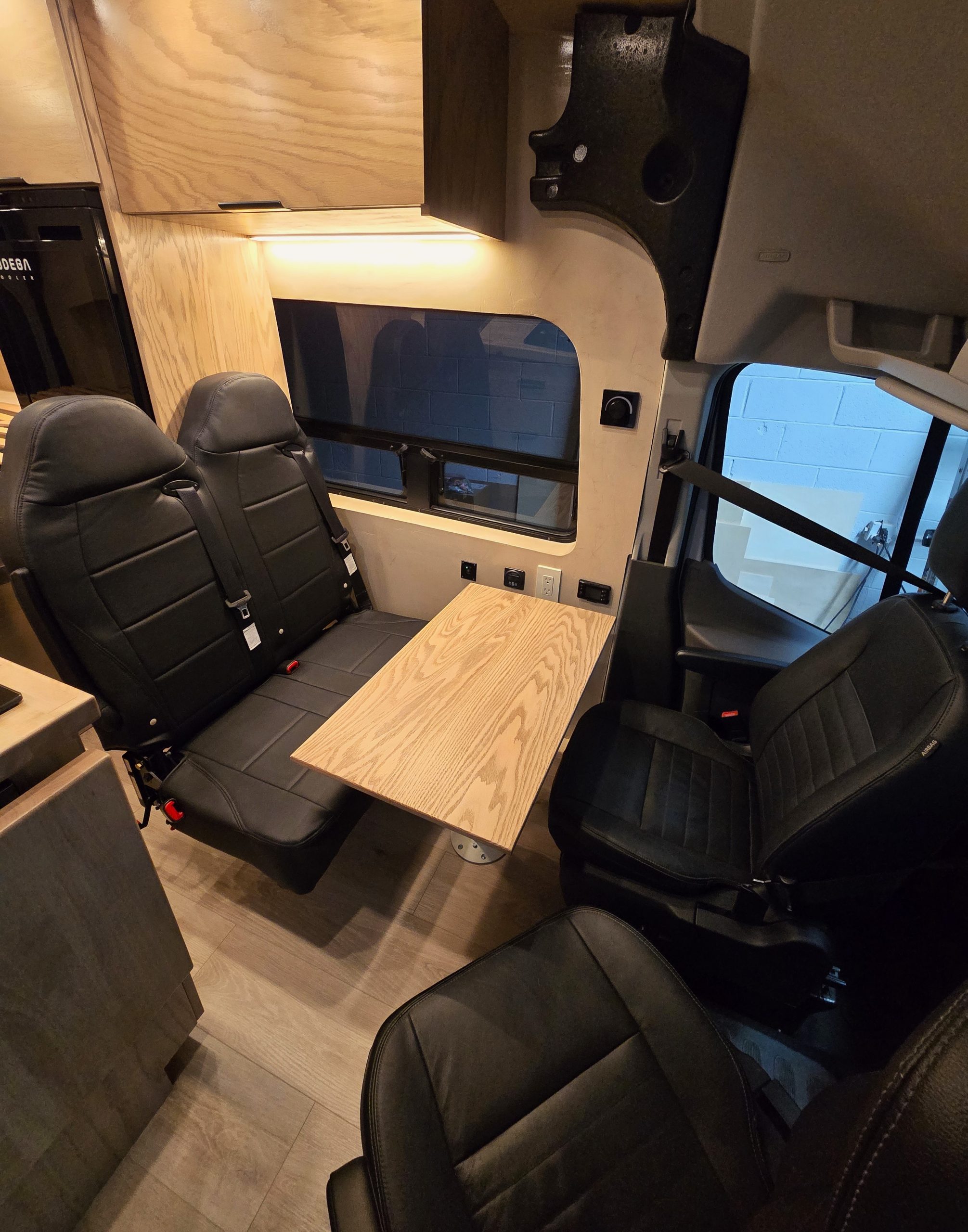

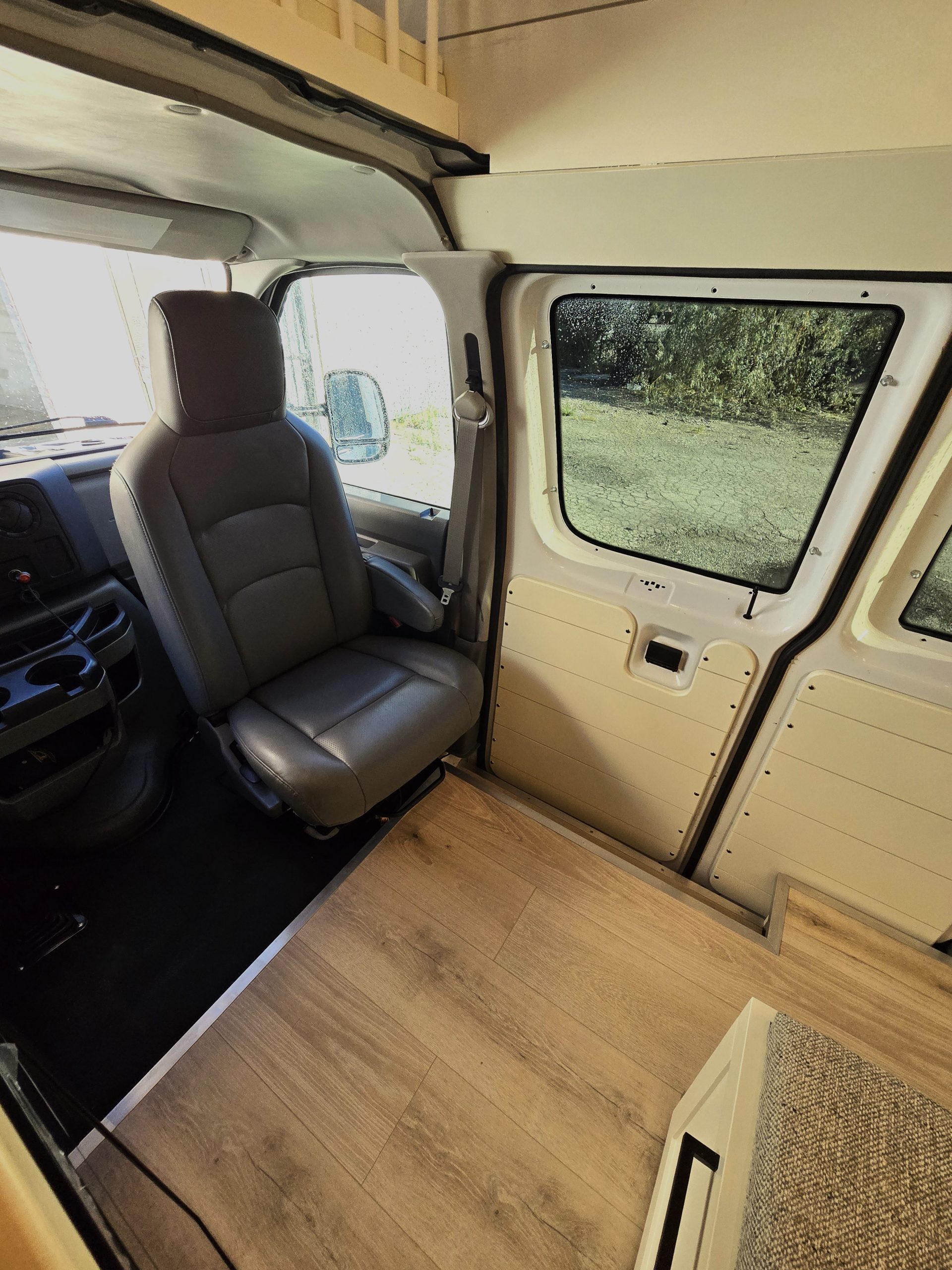

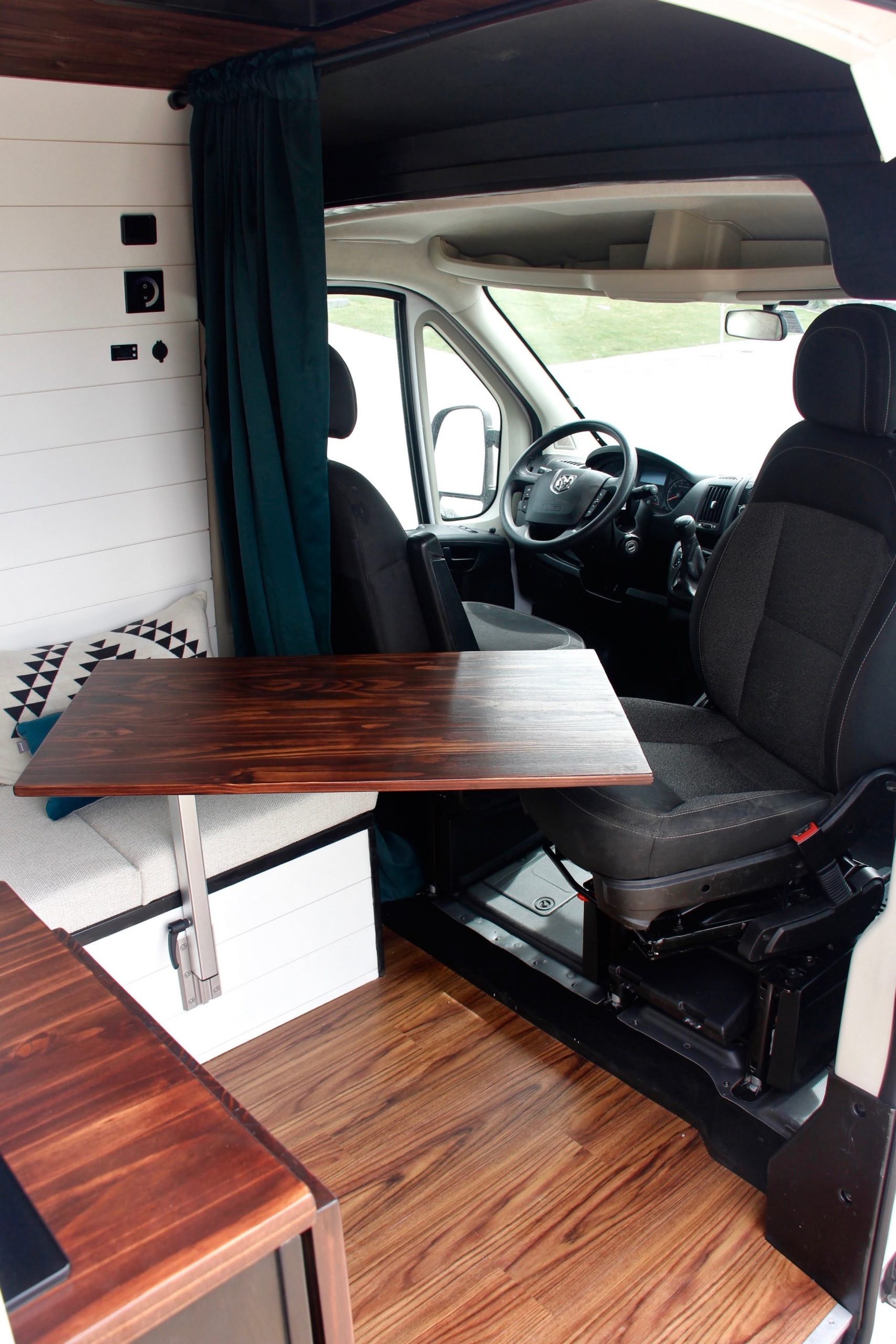

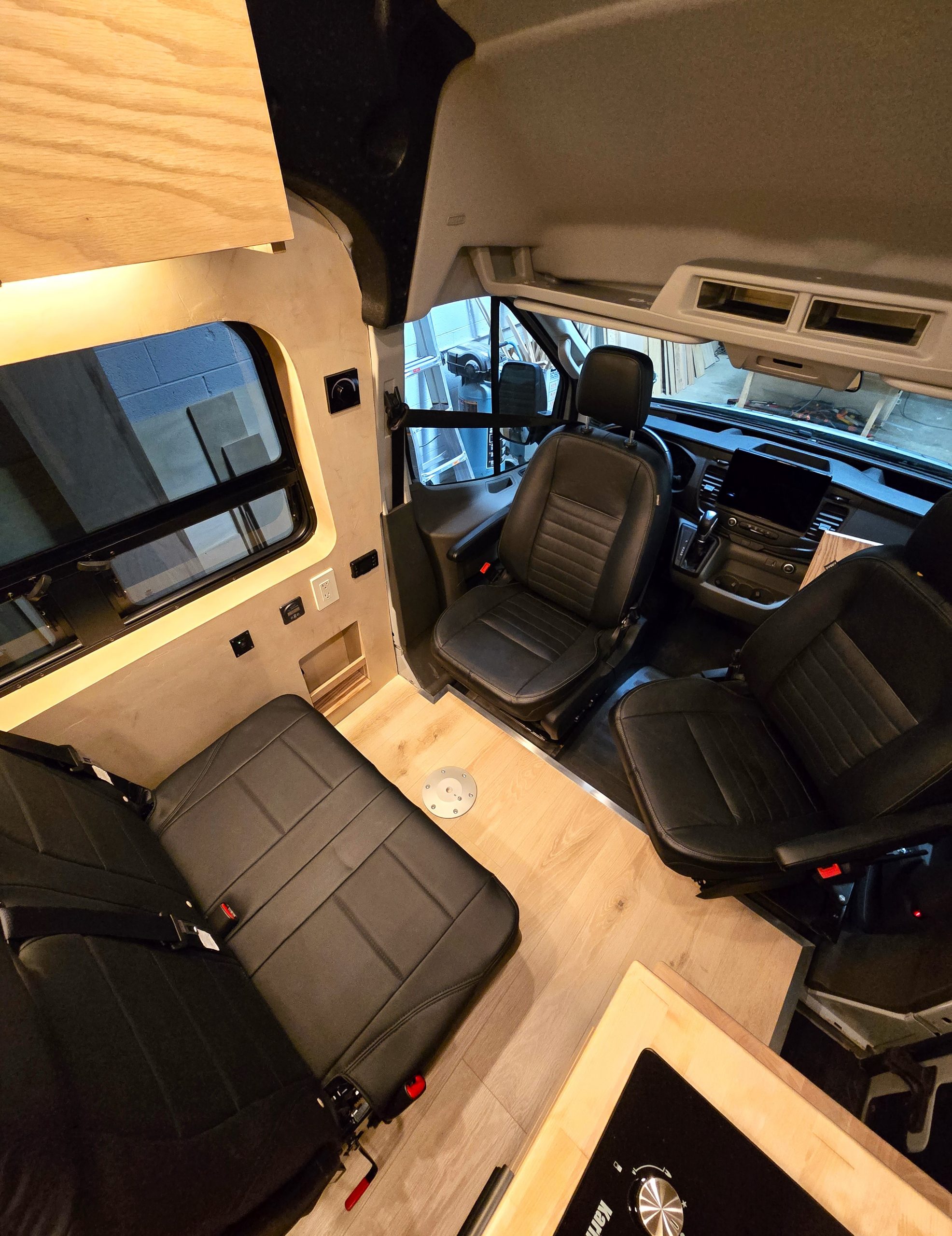

- Driver and passenger swivel seats
- Solid oak table

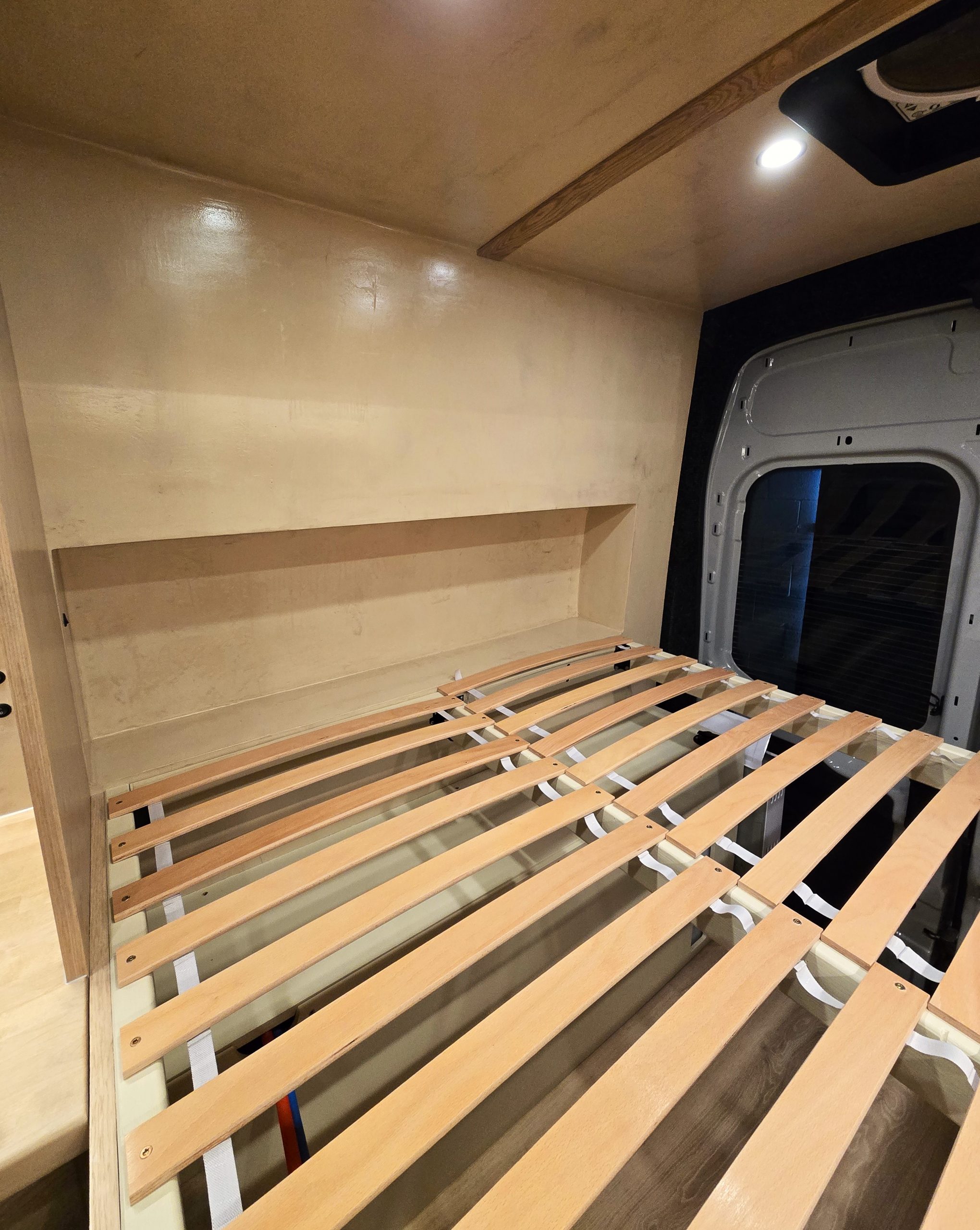

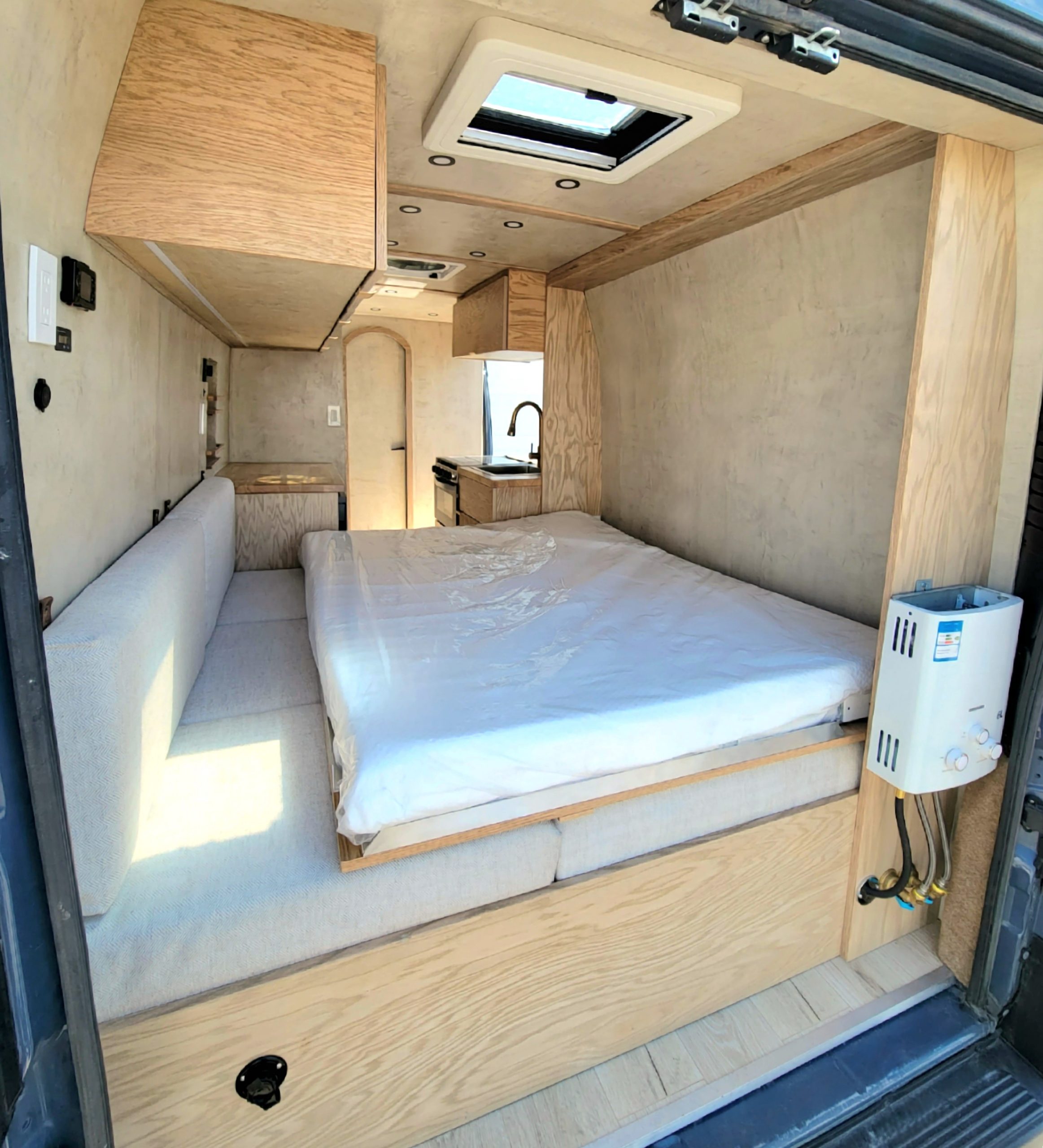

- Full-sized mattress on slatted bed frame
- Custom window placement, including 20” x 11” bunk windows
Extras
- Diesel heater with auto altitude adjustment and thermostat
- Front and rear MaxxAir 7500K ventilation fans

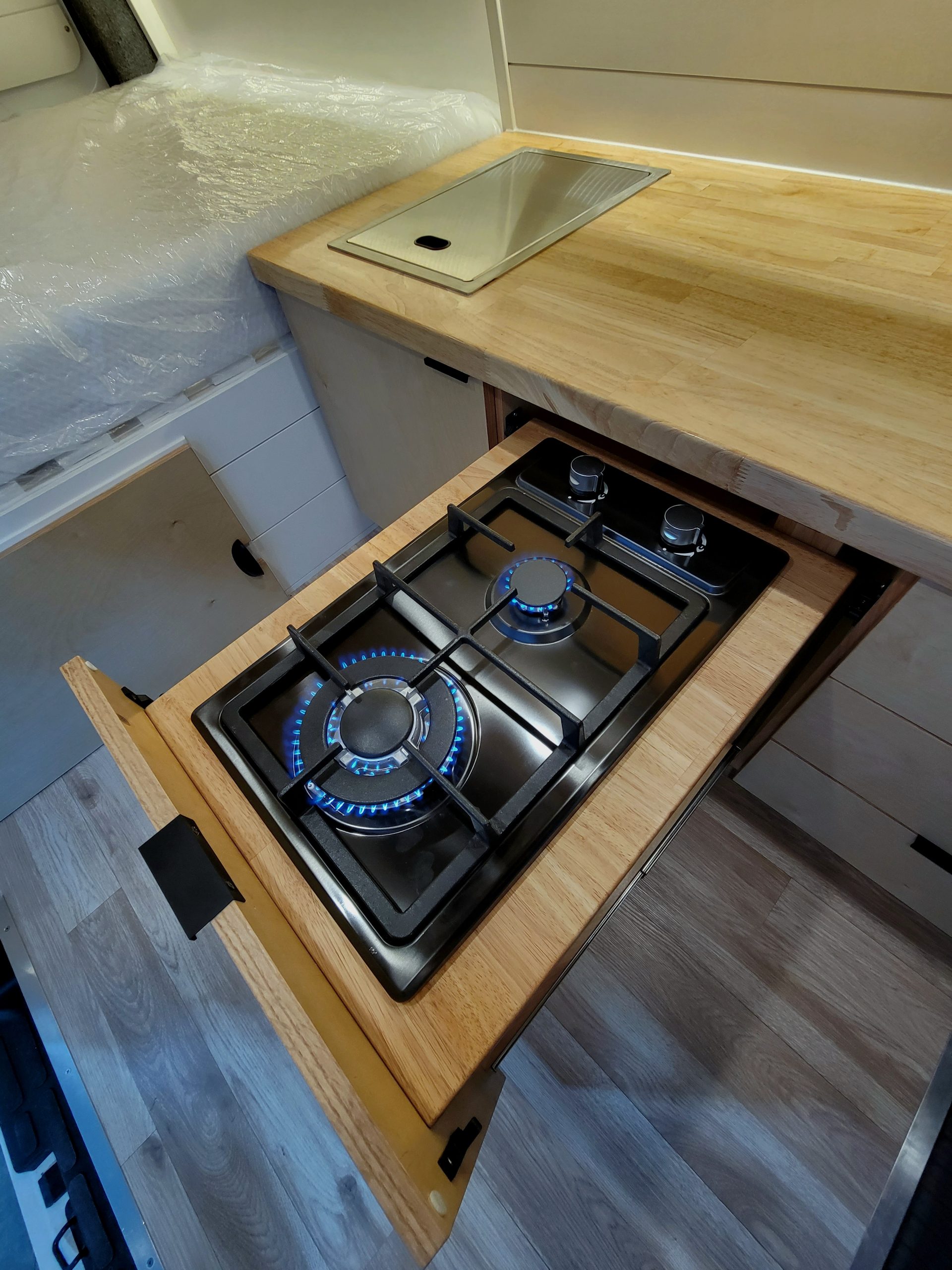

- RecPro 2-burner automatic spark ignition cooktop
- Vanlife components headliner shelf and Wanderful headliner
- Flarespace 148″ EL flares
- Full size rear access ladder
